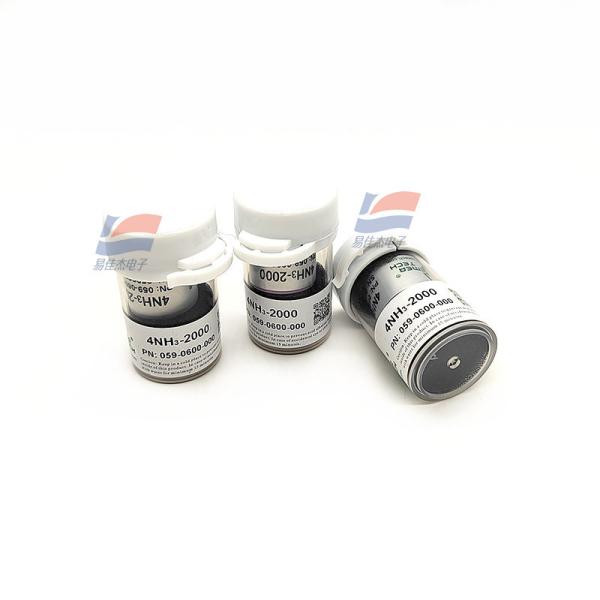

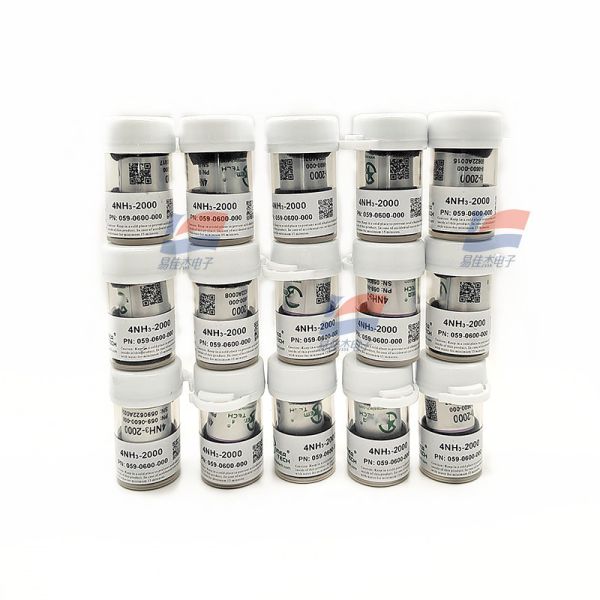

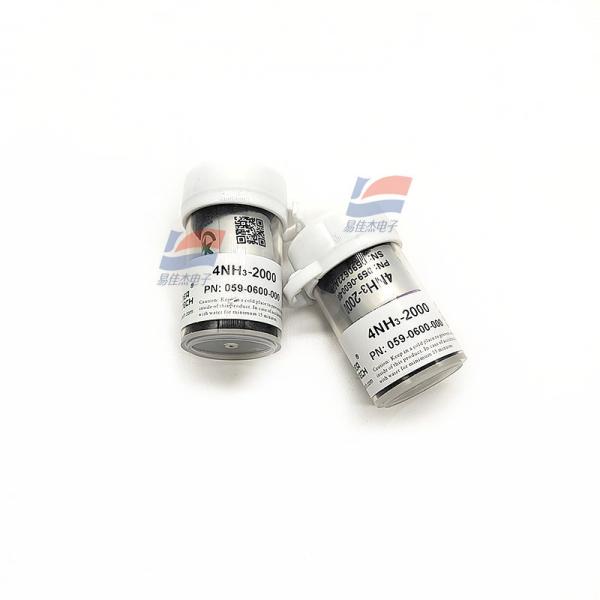

YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
Specifications
Brand Name :
YJJ
Model Number :
4NH3-2000 059-0600-000
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
5 to 8 working days
Packaging Details :
Canned
Measurement range :
0-2000 ppm
Maximum load :
4000 ppm
Sensitivity (20℃) :
0.015 ± 0.005 μA/ppm
Response time (T90) :
≤ 90 seconds
Baseline :
(20℃) < ±0.2 μA
Baseline drift (-40℃ to 50℃) :
< 3 ppm
Description

Product Description:

4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector

Features:

Product Description

This product is used to measure the concentration of ammonia gas and can replace the standard four-series ammonia gas electrochemical sensor with pins.

Performance parameters

Measurement range: 0-2000 ppm

The maximum load is 4000 ppm

Sensitivity (20℃) : 0.015 ± 0.005 μA/ppm

The response time (T90) is ≤ 90 seconds

Baseline (20℃) < ±0.2 μA

Baseline drift (-40℃ to 50℃) < 3 ppm

Resolution: 2 ppm

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -40℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 0.2 mA when the ammonia gas is 4000ppm

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 5 grams

No directionality

Specifications:

Storage temperature 10℃ to 30℃
Service life 2 years (in the air)
Storage time 6 months (in dedicated packaging boxes)
maximum open-circuit voltage 1.3V

YJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration DetectorYJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration DetectorYJJ 4NH3-2000 059-0600-000 Electrochemical Gas Sensor Is Used In The Ammonia Concentration Detector
