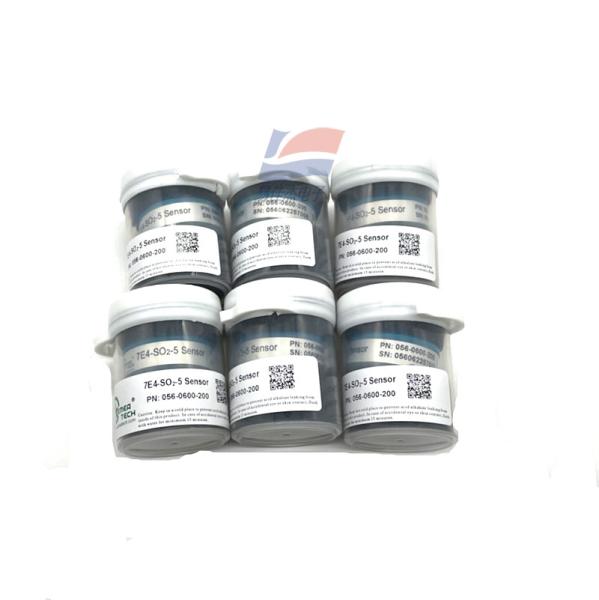

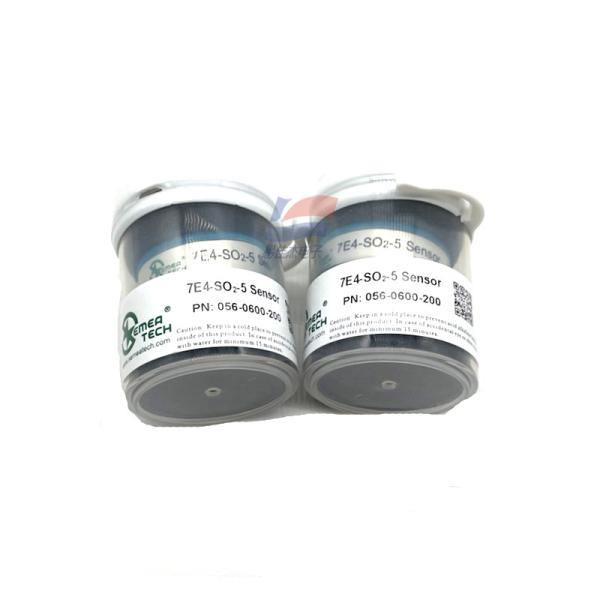

YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
Specifications
Brand Name :
YJJ
Model Number :
7E4-SO2-5 056-0600-200
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
5 to 8 working days
Packaging Details :
Canned
Range :
0 to 5 ppm
Maximum load :
20 ppm
Sensitivity (20℃) :
0.4 ± 0.2 μA/ppm
Response time (T90) :
≤ 60 seconds
Baseline (20℃) :
< ±80 nA
Resolution :
10 ppb
Description

Product Description:

7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration

Features:

Product Description

This product is used to measure the concentration of sulfur dioxide gas. It adopts a four-electrode structure design and utilizes a compensation algorithm to enhance the accuracy of low-concentration gas measurement. This product complies with the performance requirements stipulated in the 2021 edition of the new CCEP national standard.

Performance parameters

The range is 0 to 5 ppm

Maximum load: 20 ppm

Sensitivity (20℃) : 0.4 ± 0.2 μA/ppm

The response time (T90) is ≤ 60 seconds

Baseline (20℃) < ±80 nA

Baseline drift (-40℃ to 50℃) < 60 ppb (after compensation with auxiliary electrodes)

Resolution: 10 ppb

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -40℃ to 55℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability is less than 10% of the signal value per year

Storage temperature: 10℃ to 30℃

Service life: 3 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 24 months

Intrinsically safe data

The maximum current is less than 0.2 mA at 20ppm sulfur dioxide

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance

Specifications:

Storage temperature 10℃ to 30℃
Service life 2 years (in the air)
Storage time 6 months (in dedicated packaging boxes)
maximum open-circuit voltage 1.3V

YJJ 7E4-SO2-5 056-0600-200 Electrochemical Hydrogen Cyanide Sensor Is Used To Measure SO2 Concentration
