Specifications
Brand Name :
YJJ
Model Number :
7E4-NH3-10 059-3500-200
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
5 to 8 working days
Packaging Details :
Canned
Range :
0 to 10 ppm
Maximum load :
50 ppm
Sensitivity (20℃) :
0.15 ± 0.03 μA/ppm
Response time (T90) :
≤ 60 seconds
Baseline (20℃) :
< ±0.2 μA
Linearity :
Linear
Description

Product Description:

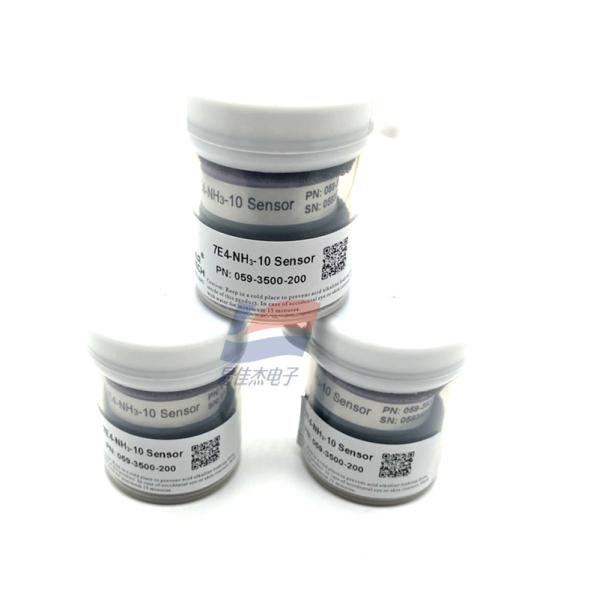

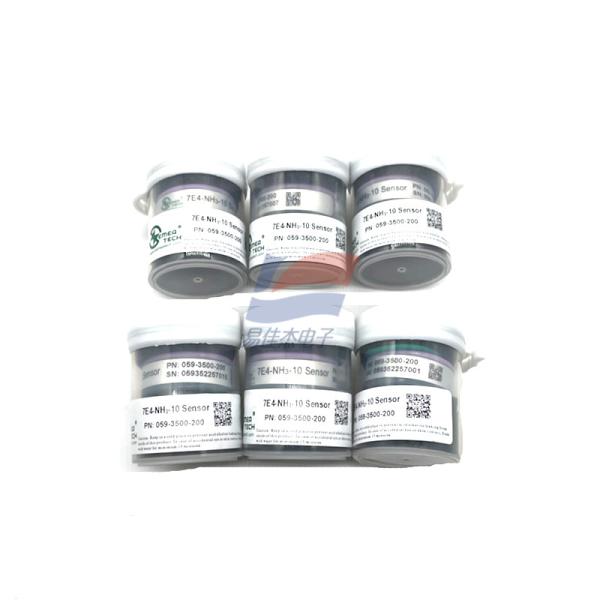

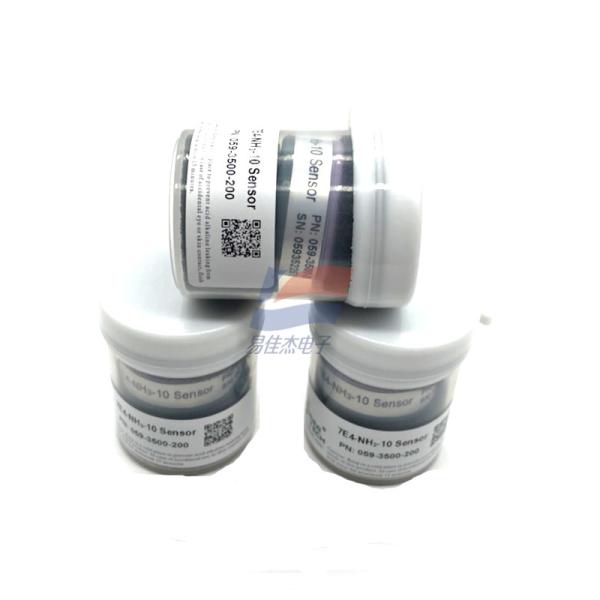

7E4-NH3-10 059-3500-200 Electrochemical Gas Sensor Is Used For Detection Of NH3 Ammonia Concentration

Features:

Product Description

This product is used to measure the concentration of ammonia gas and can replace the standard seven-series ammonia gas electrochemical sensor with pins.

Performance parameters

The range is 0 to 10 ppm

Maximum load: 50 ppm

Sensitivity (20℃) : 0.15 ± 0.03 μA/ppm

The response time (T90) is ≤ 60 seconds

Baseline (20℃) < ±0.2 μA

Baseline drift (-40℃ to 50℃) < 2 ppm

Resolution: 0.2 ppm

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -40℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 0.2 mA when there is 100ppm of ammonia gas

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance

Specifications:

Storage temperature 10℃ to 30℃
Service life 2 years (in the air)
Storage time 6 months (in dedicated packaging boxes)
maximum open-circuit voltage 1.3V
