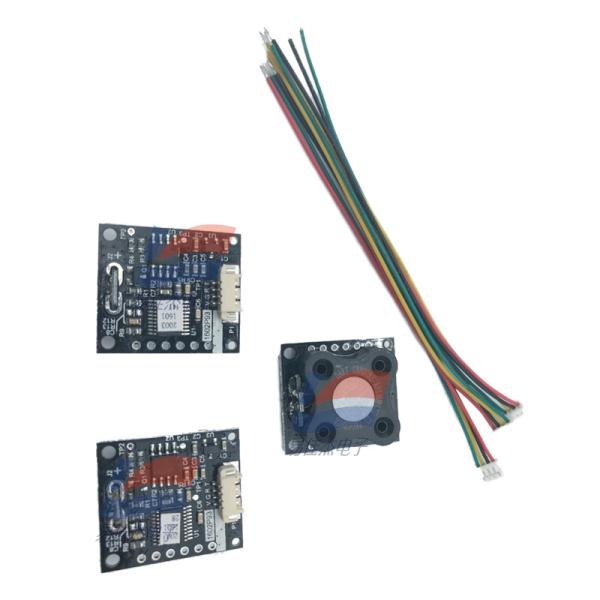

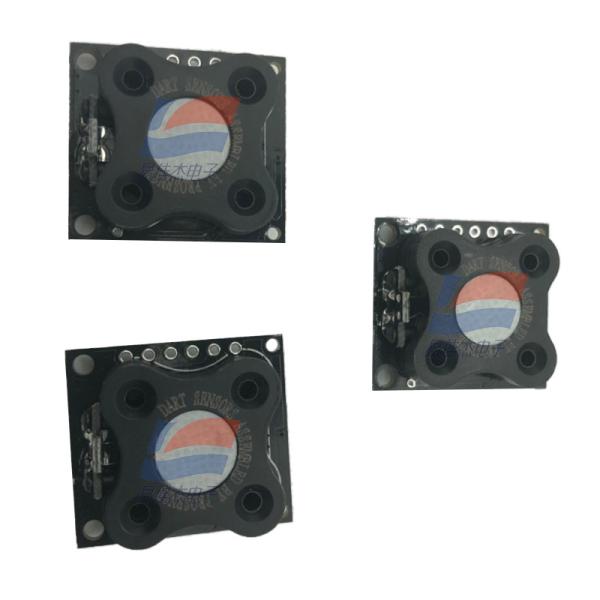

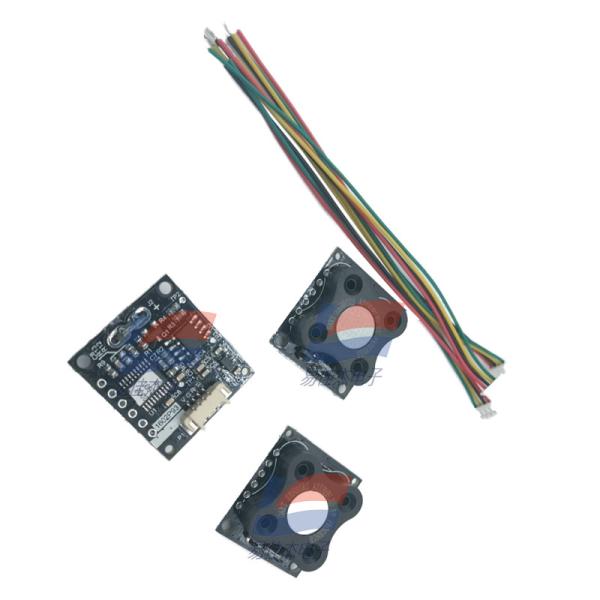

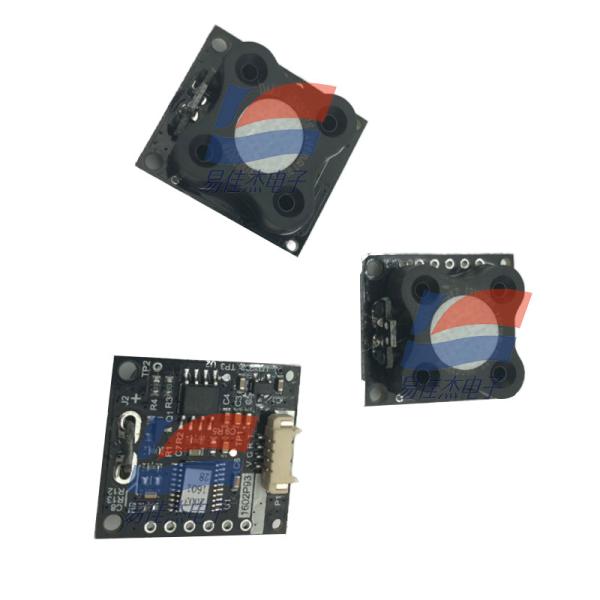

WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
Specifications
Brand Name :
Dart
Model Number :
WZ-S
Place of Origin :
UK
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000/pcs/month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Detection Principle :
Micro fuel cell
Detectable Gas :
HCHO
Detection Range :
0-2ppm
Overload :
10ppm
Description

WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output

Brief Introduction
WZ-S formaldehyde module from global detection expert DART SENSORS combines novel HCHO sensor with advanced electronic control technology, converting HCHO concentration into PPM directly. Once HCHO arrives at working electrode (anode) it is oxidized instantaneously to generate an electrical signal. The electrical signal is then acquired and processed by microprocessor into a PPM value
and is output by standard digital signal. WZ-S HCHO module is pre-calibrated in the factory and can be integrated into your system directly.

Input Voltage 5-7V
Warm up time <3min
Response Time (T90) <40S
Recovery Time (T10) <60S
Resolution 0.001ppm
Operating temperature range -20℃～50℃
Operating Humidity Range 10％－90％RH(non-condense)
Storage Condition 0～20℃
Lifetime 5 years in air
Warranty Period 12 months
Weight 4g

WZ-S Formaldehyde Gas HCHO Module High Precision Digital Signal Output with Micro Fuel Cell Detection Range 0-2ppm
