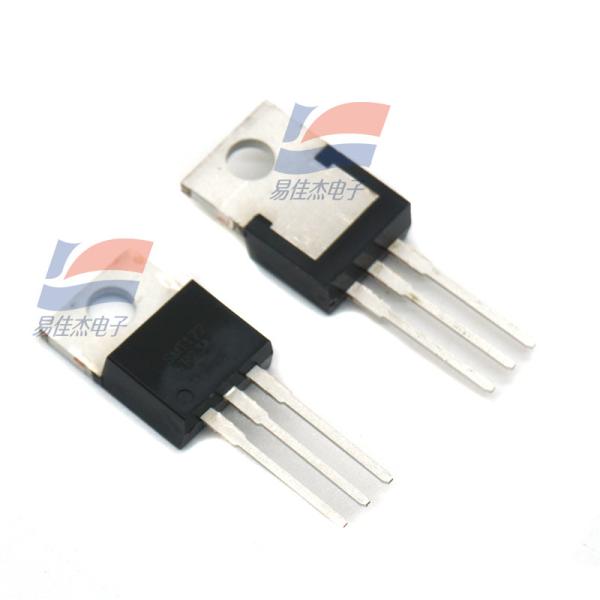

SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications
Specifications
Brand Name :
Smartec
Model Number :
SMT172 TO-220
Place of Origin :
Netherlands
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
MOQ :
1
Price :
Negotiable
Supply Ability :
10000pcs/Month
Mounting Type :
Through Hole
Output Type :
Pulse Width Modulation
Package/Case :
TO-220
Accuracy :
Maximum (Minimum) ±0.1℃
Test Conditions :
25 Degrees Celsius
Voltage :
Power Supply 2.7V～5.5V
Operating Temperature :
-45℃～130℃
Sensor Type :
Digital
Description

SMT172 TO-220 Digital Temperature Sensors Maximum Accuracy Ultra Low Power Applications

Features and Highlights
* World’s most energy efficient temperature sensor 0.36µJ/measurement (TA=25°C, 3.3V)
* Wide temperature range: -45°C to 130°C
* Wide supply voltage range: 2.7V to 5.5V
* High accuracy: ±0.25°C (-10°C to 100°C TO18) ±0.1°C (-20°C to 60°C, TO18)
* Extreme low noise: 0.002°C
* Ultra-low current (60µA active or 220nA average)
* Excellent long term stability
* Direct interface with Microcontroller (MCU)
* Wide range of package options


Application
* Ultra-low power applications: wearable electronics, wireless sensor networks
* Medical applications: body temperature monitoring
* Instrumentation: (Bio)chemical analysis, precision equipment
* Environmental monitoring (indoor/outdoor)
* Industrial applications: process monitoring/controlling

Specification:

Output Duty Cycle 0.11 -0.93
Output frequency 0.5-7
PSRR at Vcc 0.1
Repeatabilit 0.01
Startup time 1-2
Long term drift 0.0058
