HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
Specifications
Brand Name :
YJJ
Model Number :
HEL-712-T-1-12-00
Place of Origin :
USA
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
MOQ :
1
Price :
Negotiable
Supply Ability :
3000/pcs/month
Mounting Style :
Wire Leads
Accuracy :
+/- 0.1 %
Operating Supply Current :
1 MA
Temperature Range :
- 75 C To + 540 C
Resistance :
100 Ohms
Product Category :
Industrial Temperature SensorsProduct
Description

HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector

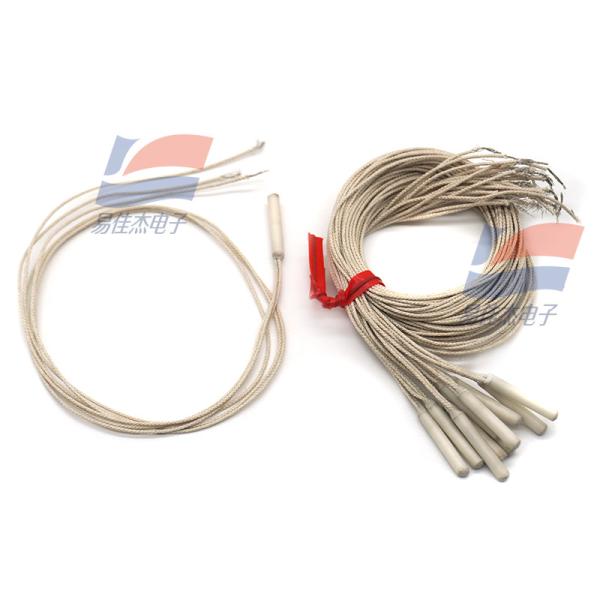

The HEL-700 Series Thin Film Platinum RTDs (Resistance Temperature Detectors) are designed to monitor or control critical
temperatures in industrial applications. They provide a linear change in resistance versus temperature, combining high
linearity, stability, accuracy, and wide temperature range in a small, fast-response package.
The HEL-700 Series is designed to measure temperatures from -75 °C to 540 °C [-100 °F to 1000 °F] with high accuracy.
These fully-assembled elements are ready-to-use in probe assemblies, without the need for fragile splices to extension
leads.
These products are manufactured using a thin layer of platinum deposited on an alumina substrate and are laser trimmed
to a resistance interchangeability of a standard ±0.2% (±0.5 °C accuracy) or optional ±0.1% (±0.3 °C accuracy). The sensor
chip is then glassed, wired and potted or ceramic fired to result in a cylindrical alumina package with either TFE Teflon®- or
fiberglass-insulated lead wires.

Key Features
• Wide temperature range
• Interchangeable
• Accurate
• Linear resistance vs temperature
• Fast response
• Laser trimmed
• Ceramic case material
• TFE Teflon® or fiberglass leadwires
• Multiple small sizes
• Ready-to-use, fully assembled elements
Temperature Range - 75 C to + 540 C
Resistance 100 Ohms
Accuracy +/- 0.1 %
Description Resistance Temperature Detector
Operating Supply Current 1 mA
Mounting Style Wire Leads
Technology RTD

HEL-712-T-1-12-00 Industrial Temperature Sensors Resistance Temperature Detector
