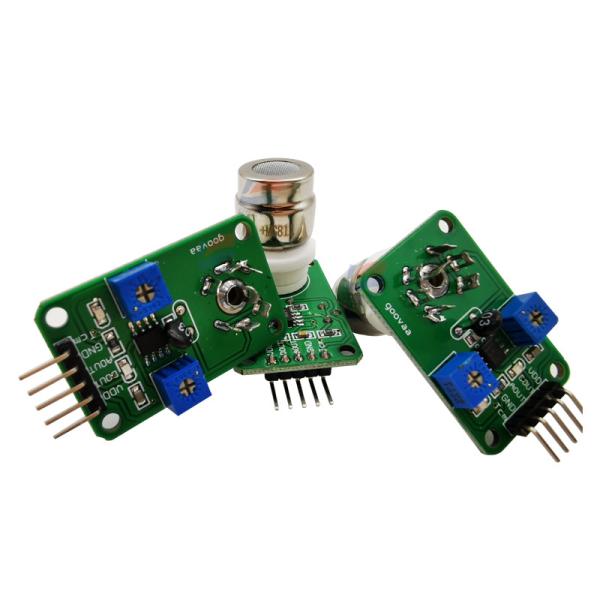

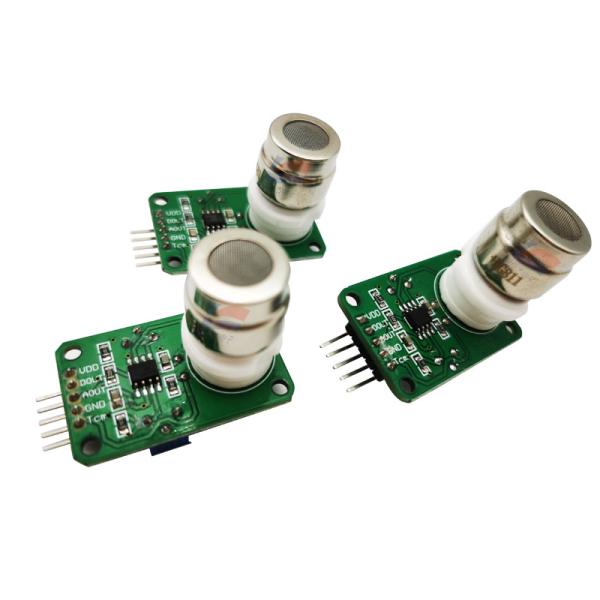

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
Specifications
Brand Name :
MG
Model Number :
MG811
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
MOQ :
1
Price :
Negotiable
Supply Ability :
10000pcs/Month
Communication Speed :
100KHz To 3.4MHz
Working voltage :
DC 6V
Detection :
CO2
Product Type :
MG811 Module
Size :
32mm X22mm X30mm
Analog output :
0 ~ 2V/0-4V
Description

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2

Features
Good sensitivity and selectivity to CO2
Low humidity and temperature dependency
Long stability and reproducibility


Application
Air Quality Control
Ferment Process Control
Room Temperature CO2 concentration Detection

Specification:

Model
 MG811
Sensor type Solid Electrolyte
Target gas CO2
Detection range 350ppm - 10000ppm
Heater resistance 35Ω ± 3Ω
Heater current 140 ± 20mA
Heater voltage 6.0V ± 0.1V AC or DC
Heater consumption 850mW ± 120mW
Standard working condition 20 ~ 50°C, under 95%RH
Zero point EMF 200mV - 600mV
DEMF output signal ≧ 25mV/1000ppm CO2

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2
