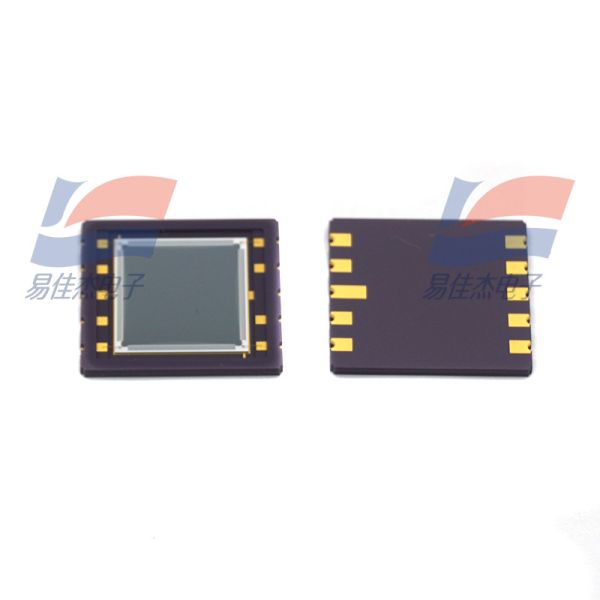

S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
Specifications
Brand Name :
Hamamatsu
Model Number :
S5991-01
Place of Origin :
Japan
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
MOQ :
1
Price :
Negotiable
Supply Ability :
10000pcs/Month
Operating Temperature :
-20 To +60℃
Photosensitive Area :
4*4mm
Spectral Resopnd Range :
320 To 1100nm
Package :
Ceramic
Window Materials :
Silicone Resin
Reverse Voltage :
20V
Description

S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors

Features
-Large active area: 9 × 9 mm
-Chip carrier package for surface mounting thin package: 1.26 mmt
-Improved tetra-lateral type (pin-cushion type) delivers superior position detection
-Evaluation circuit boards provided
-Packing
Tray: S5991-01
Reel: S5991-11

Features
Surface mount type ceramic chip carrier package
Excellent position detectability
Compatible with lead-free solder refow
Packing Tray: s5990-01,s5991-01
Reel: s5990-11,s5991-11

Applications
Light spot detection
Pointing device
Various types of position detection
Options (sold separately)
signal processing circuit for 2-D PsD C4674-01

Specifications

Photosensitive area
9 x 9 mm
Package Ceramic
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.6 A/W
Package category Surface mount type
Spectral response range 320 to 1100
Dark current (max.) 50 nA
Rise time (typ.) 2 μs
Terminal capacitance (typ.) 500 pF
Interelectrode resistance (typ.) 7 kΩ

S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors

Send your message to this supplier
Send Now

S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors

Ask Latest Price
Product Detail
Brand Name :
Hamamatsu
Model Number :
S5991-01
Place of Origin :
Japan
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Contact Supplier
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
S5991-01 Two Dimensional PSD High Accuracy Position Sensitive Detectors
