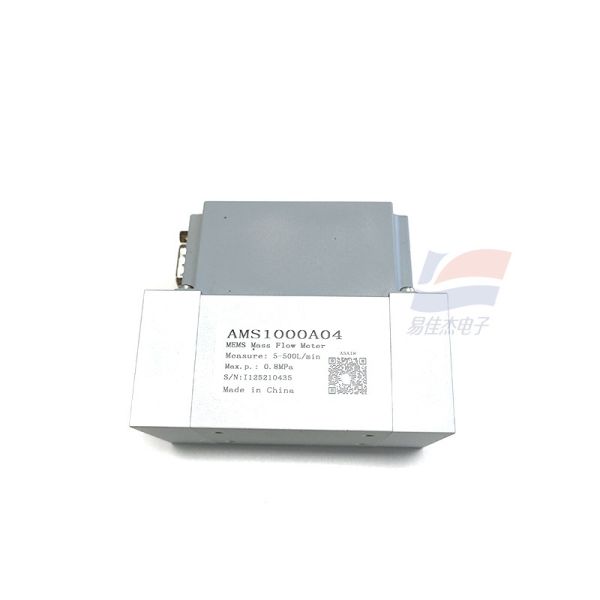

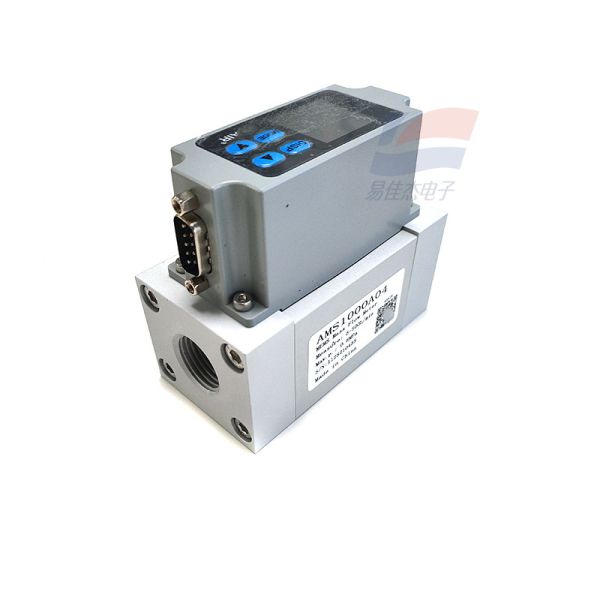

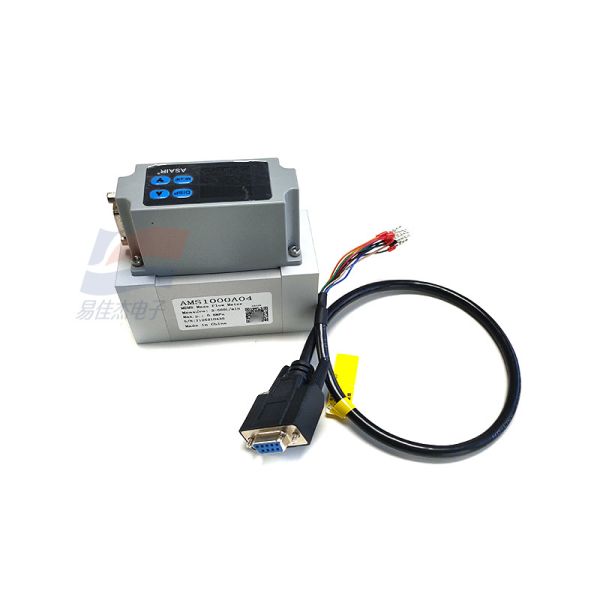

AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring
Specifications
Delivery Time :
3-5work days
Measurement Range :
30 ~ 300 L/min
Place of Origin :
CN
Repeatability :
≤ ±0.5% FS
Packaging Details :
Paper box
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
5000pcs
Response Time (T90) :
≤ 3 s
Humidity Range :
15% ~ 90% RH
Operating Pressure :
≤ 0.8 MPa
Price :
Negotiable
Fluid Temperature Range :
0 ~ 50℃
Model Number :
AMS1000A04
Description

AMS1000A04 Thermal Gas Mass Flow Meter for Industrial Gas Flow Monitoring in Chemical Environmental Emission Monitoring

Features:

  1. Self developed MEMS flow chip for stable and precise measurements in harsh industrial environments.
  2. Integrated flow and temperature monitoring for comprehensive process data collection.
  3. Multi output and Modbus RTU support for easy integration with PLC/DCS systems.
  4. High repeatability (≤ ±0.5% FS) and fast response (≤ 3 s) for real time process control.
  5. Wide operating voltage (9~24 VDC) and robust mechanical design for industrial reliability.
  6. Two NPN alarm outputs for upper/lower limit monitoring, enhancing operational safety.

Applications:

  1. Industrial gas flow monitoring in chemical, petrochemical, and power generation plants.
  2. Combustion process optimization in boilers and furnaces.
  3. Gas distribution and consumption metering in semiconductor and electronics manufacturing.
  4. Environmental emission monitoring and control systems.
  5. Precision gas flow control in pharmaceutical and food processing industries.
  6. Laboratory and research facility gas flow measurement.

Measurement Range 30 ~ 300 L/min (standard); custom ranges available
Accuracy ±4% RD (30 ≤ x < 150 L/min); ±2% RD (150 ≤ x ≤ 300 L/min)
Repeatability ≤ ±0.5% FS
Response Time (T90) ≤ 3 s
Fluid Temperature Range 0 ~ 50℃
Operating Pressure ≤ 0.8 MPa
Humidity Range 15% ~ 90% RH (non condensing)
Power Supply 9 ~ 24 VDC
Output Signals RS485 (Modbus RTU), 2 NPN open collector (alarm), 1 ~ 5 V linear, 4 ~ 20 mA linear
Display LCD (4 way orientation adjustable)
Expected Lifespan 3 years (typical industrial use)
