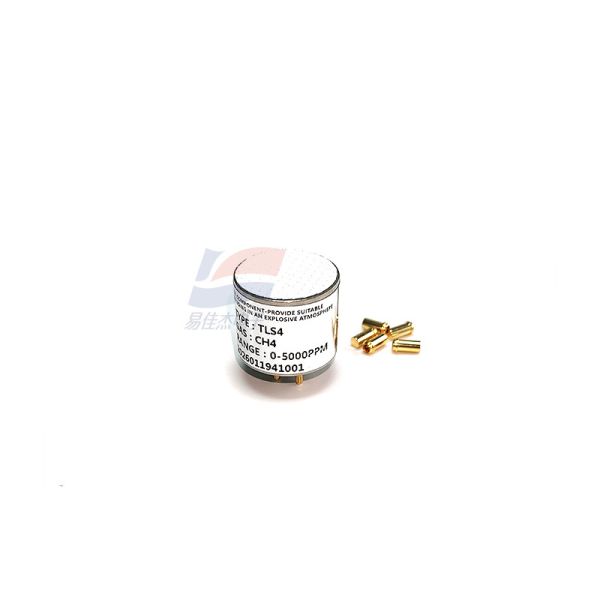

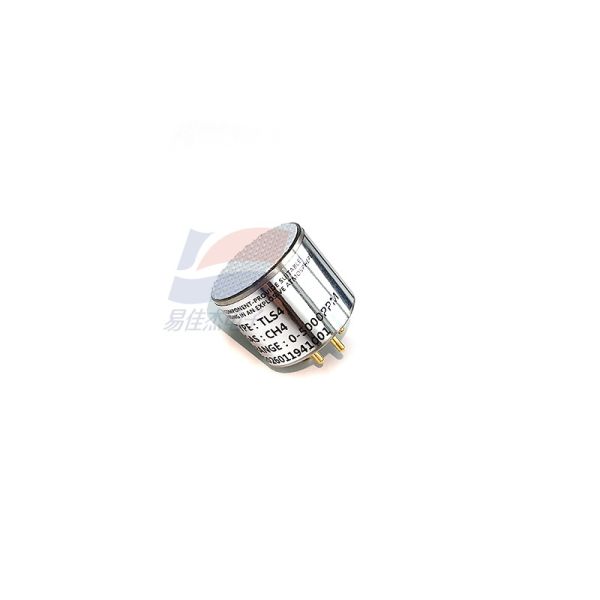

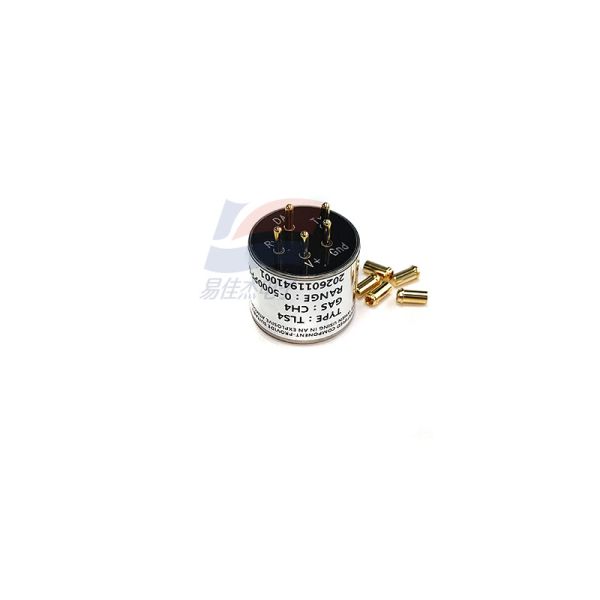

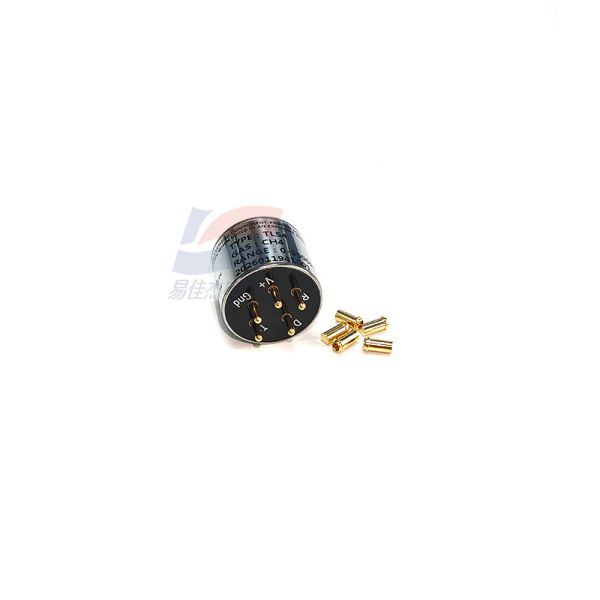

TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems
Specifications
Model Number :
TLS4 CH4
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Detection Range :
0 - 100% VOL (customizable)
Accuracy :
0 - 1% VOL: ±0.05% VOL; 1% - 100% VOL: ±5% of reading
Resolution :
0.01% VOL
Response Time (T90) :
≤20s
Power Supply :
5V DC (±0.2V)
Average Current :
<100mA
Description

TLS4 CH4 High-performance Laser Methane Sensor for Natural Gas Pipeline Monitoring Industrial Safety Systems

Applications:

  • Natural Gas Pipeline Monitoring: Real - time leak detection in transmission and distribution networks to prevent safety hazards and gas waste.
  • Industrial Safety Systems: Monitoring methane levels in refineries, chemical plants, and mining operations to avoid explosion risks.
  • Biogas & Landfill Sites: Tracking methane emissions for environmental compliance and resource management.
  • Portable Detectors: Battery - powered devices for on - site inspections and emergency response.

Key Features:

  1. High Accuracy & Selectivity: Precise measurements with minimal interference from CO2, H2O, and other hydrocarbons, enabled by TDLAS technology.
  2. Wide Detection Range: 0 - 100% VOL (customizable) covers low - level leaks to high - concentration scenarios.
  3. Dual Outputs: TTL UART (9600bps, 8N1) for digital data and 0.4V - 2V analog signal for easy integration with controllers and displays.
  4. Fast Response: ≤20s T90 for timely leak alerts and safety actions.
  5. Robust Design: IP65 protection for outdoor/harsh industrial environments; diffusion sampling simplifies installation.
  6. Low Power: <100mA average current supports battery - operated devices.

Target Gas Methane (CH4)
Detection Range 0 - 100% VOL (customizable)
Accuracy 0 - 1% VOL: ±0.05% VOL; 1% - 100% VOL: ±5% of reading
Resolution 0.01% VOL
Response Time (T90) ≤20s
Sampling Method Diffusion
Output Signals TTL UART (9600bps, 8N1); 0.4V - 2V analog
Power Supply 5V DC (±0.2V)
Average Current <100mA
Operating Temperature -20℃ - +50℃
Operating Humidity <98% RH (non - condensing)
Ambient Pressure 86kPa - 106kPa
Protection Rating IP65
Dimensions 45×35×22mm (L×W×H)
Weight 35g
Lifespan 5+ years (typical)
