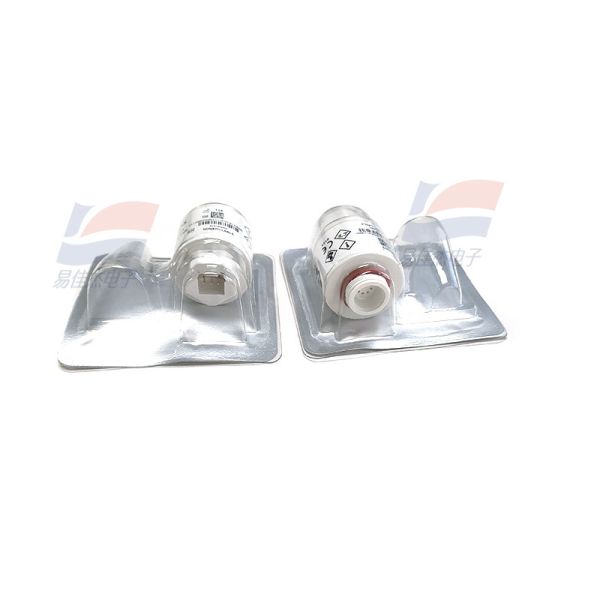

INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios
Specifications
Model Number :
INQOX
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Measuring Principle :
Electrochemical (partial pressure)
Output Signal :
7~14 mV at 210 mbar O2
Accuracy :
±1.0 vol% O2 (23°C, 1013 mbar)
Response Time (T90) :
≤10
Operating Temperature :
-20 to 50°C
Storage Temperature :
-20 to 30°C
Description

INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios

Feature:

  • Partial pressure measurement eliminates barometric pressure compensation, ensuring accuracy across altitudes.
  • Linear output (0–100 vol% O2) for direct microcontroller integration without linearization.
  • Rapid response (≤10 sec T90) for real-time patient monitoring in critical care.
  • Wide operating temperature (-20 to 50 °C) and pressure (0.5–2.0 bar) ranges for diverse medical environments.
  • RoHS compliant with 13-month warranty for medical device reliability.
  • Compact M16 mechanical interface with Molex connector for tool-free installation and replacement.
  • Low cross-sensitivity to common medical gases (per ISO 80601-2-55) minimizes false readings.
  • Designed for neonatal incubators and ventilators; not for use with anesthesia gases.

Purpose:

  • Neonatal Incubators: Continuous O2 monitoring for preterm infants, ensuring stable oxygenation.
  • Ventilators: Measuring inspiratory/expiratory O2 concentration in critical care and home settings.
  • Respiratory Monitors: Multi-parameter patient monitoring systems in emergency and transport scenarios.
  • Oxygen Concentrators: Feedback control for precise O2 delivery in home healthcare equipment.
  • Hyperbaric Chambers: Pressure-compensated O2 measurement in high-pressure medical environments.
  • Pulmonary Function Testers: Calibration and gas analysis in diagnostic equipment.

Measuring Principle Electrochemical (partial pressure) -
Oxygen Range 0–100 vol% O2 (0–1500 mbar O2 partial pressure) vol%/mbar
Output Signal 7–14 mV at 210 mbar O2 mV
Accuracy ±1.0 vol% O2 (23°C, 1013 mbar) vol%
Response Time (T90) ≤10 sec
Operating Temperature -20 to 50 °C
Storage Temperature -20 to 30 °C
Pressure Range 0.5 to 2.0 bar absolute
Humidity Range 15~95 %RH (non-condensing) %RH
Typical Life 18 (continuous @ 23°C) months
Weight 40 (nominal) g
