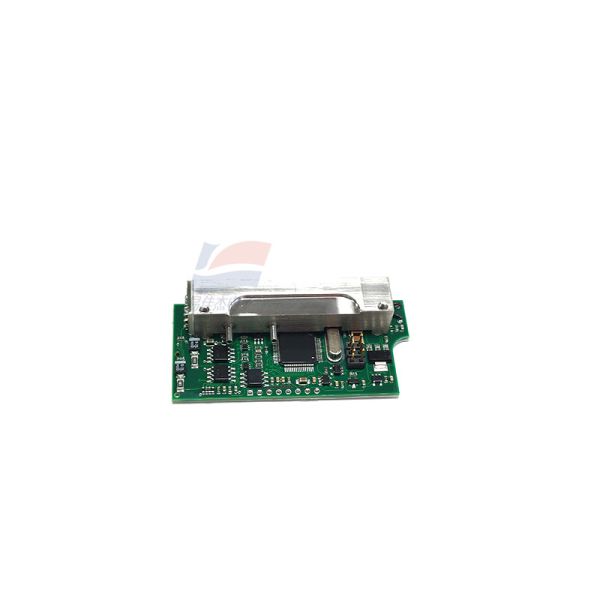

10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
Specifications
Model Number :
10145738-SP
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Target Gas :
Carbon Dioxide (CO2)
Detection Range :
0~10 Vol%
Accuracy :
±0.1 Vol% or ±5% of reading
Response Time (T90) :
≤ 15 seconds
Operating Temperature :
-20°C to +50°C
Storage Temperature :
-30°C to +60°C
Description

10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety

Applications:

  • Respiratory protection: CO2 monitoring in self contained breathing apparatus (SCBA) for firefighters and industrial workers.
  • Confined space safety: Detecting CO2 buildup in tanks, tunnels, and underground facilities.
  • Industrial process control: Monitoring CO2 levels in food/beverage production, fermentation, and HVAC systems.
  • Environmental monitoring: Indoor air quality (IAQ) assessment in commercial buildings and laboratories.

Key Features:

  1. High Measurement Range: 0–10 Vol% (100,000 ppm) for comprehensive CO2 monitoring.
  2. Fast Response: T90 ≤ 15 seconds for real time leak alerts and safety intervention.
  3. Robust Shield Design: Integrated shield protects against dust, moisture, and physical damage, suitable for harsh industrial settings.
  4. Low Power Consumption: Optimized for portable and battery powered devices, extending operational runtime.
  5. Plug and Play Compatibility: Designed for seamless integration with MSA Ultra Elite facepieces and gas monitoring systems.

Target Gas Carbon Dioxide (CO2)
Detection Range 0–10 Vol% (0–100,000 ppm)
Accuracy ±0.1 Vol% or ±5% of reading (whichever is greater)
Response Time (T90) ≤ 15 seconds
Operating Temperature -20°C to +50°C
Storage Temperature -30°C to +60°C
Humidity Range 15–95% RH (non condensing)
Power Requirements 5 VDC, 100 mA (max.)
Output Signal Analog (0–5 VDC) proportional to CO2 concentration
Form Factor Compact, with integrated shield for easy installation
Weight ~150 g (including shield)

10145738-SP MSA Infrared (IR) CO2 Sensor Kit (with Shield) for Industrial Process Control Confined Space Safety
