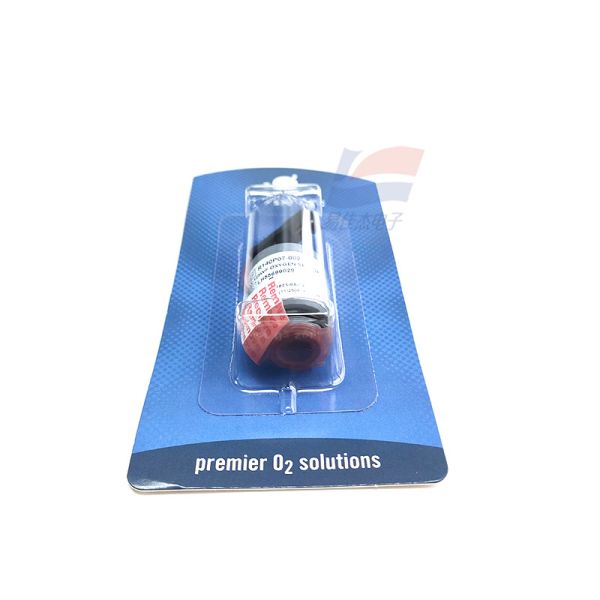

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
Specifications
Model Number :
MAX-125WF
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Accuracy :
±1.0% Vol
Response Time (T90) :
≤10 s
Zero Drift :
≤±0.5 % Vol/year
Operating Temperature :
5 ~ 45 °C
Operating Humidity :
15 ~ 90 % RH
Operating Pressure :
86 ~ 106 kPa
Description

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors

Applications :


Medical devices:


Anesthesia machines
Oxygen concentrators
Ventilators
Patient monitors


Industrial safety:


Oxygen deficiency monitors
Breathing apparatus
Glove boxes & inert gas systems


Environmental & lab:


Air quality testing
Incubators
Fermentation monitoring

Parameter

Specification

Unit

Test Condition
Detection Gas Oxygen (O2) - Medical grade gas mixture
Measurement Range 0 ~ 100 % Vol Standard atmospheric pressure
Output Signal Linear analog output (current/voltage) mA/mV 25°C, 1atm
Accuracy ±1.0 % Vol At 21% O2, 25°C
Response Time (T90) ≤10 s Standard test conditions
Zero Drift ≤±0.5 % Vol/year Long-term operation
Sensitivity Drift ≤±1.0 % Vol/year Long-term operation
Operating Temperature 5 ~ 45 °C Full measurement range
Operating Humidity 15 ~ 90 % RH Non-condensing
Operating Pressure 86 ~ 106 kPa Standard atmospheric pressure
Storage Temperature 0 ~ 30 °C Sealed packaging
Expected Lifetime ≥2 years Continuous operation at 25°C
Output Load Resistance Customizable Ω Matching equipment requirements
Gas Flow Rate 50 ~ 500 sccm Optimal detection flow

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
