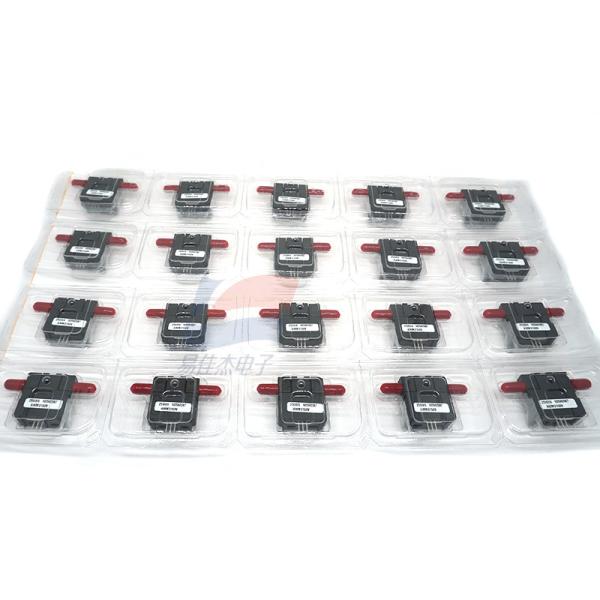

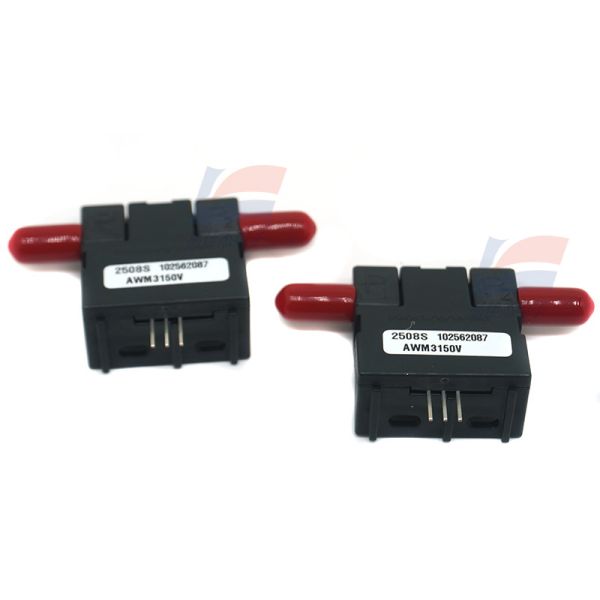

YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing
Specifications
Brand Name :
YJJ
Model Number :
AWM3150V
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5-8 days
Packaging Details :
Palletized
Input voltage range :
8 - 15 volts DC
Gas volume flow rate :
0.0011 SCFM
Output voltage :
5 V direct current
Size :
9.1 × 3.9 × 1.7 mm
Operating temperature range :
-25°C to 85°C
Zero drift :
±0.025% reading
Description

Product Description:

YJJ AWM3150V Large-Scale Micro-Bridge Gas Flow Sensor Used For Medical Respiratory And Pulmonary Function Testing

Features:

Main parameters of the AWM3150V flow sensor are as follows:
Operating voltage
Input voltage range: 8 - 15 V DC
Flow range
Gas volume flow rate: 0.0011 SCFM (approximately 0.0018 m³/h)
Output signal
Output voltage: 5 V direct current
Physical dimensions
Size: 9.1 × 3.9 × 1.7 mm
Working temperature
Operating temperature range: -25°C to 85°C
Other characteristics
Response time: 6 ms (typical value)
Zero drift: ±0.025% reading
Repeatability error: ≤ 0.35% of the reading
Note: This sensor is only suitable for gas measurement and cannot be used for liquid flow detection.

AWM3300V Flow Sensor AWM3100V Large inventory AWM3100V Environmental Climate Control - Flow sensor AWM3150V Large inventory

AWM2000 non-amplified micro bridge gas flow sensor series

AWM3000 amplified micro bridge gas flow sensor series

AWM40000 non-amplifying micro bridge gas flow sensor series

AWM5000 large flow amplification micro bridge gas flow sensor series

AWM700 series gas mass flow sensor

FRN Series Low flow, low pressure drop flow switch

AWM90000 series mass air flow sensor

Features of the AWM3100V flow sensor

Flow tubes are used in ranges up to 200 SLPM

Zero and full scale stability is high

Compact package design

Lag and repeatability errors are minimal, less than 0.35% of the reading

Fast response time, usually 6 ms

Low power consumption, less than 60 mW

AWM3100V Flow sensor application

Oxygen tank

Medical respiration apparatus and spirometer

atomizer

Continuous positive airway pressure (CPAP) equipment

Anesthesia system

Leak detection

spectrum

Mass flow controller

Telecommunication system

Environmental climate control

Fuel cell control

Oxygen generator

Specifications:

Signal conditioning amplification
Flow/pressure range 30.0 sccm
Adjust the output voltage at the point At 25 SCCM, 3.4 VDC
Output temperature drift The plus or minus 5% reading
