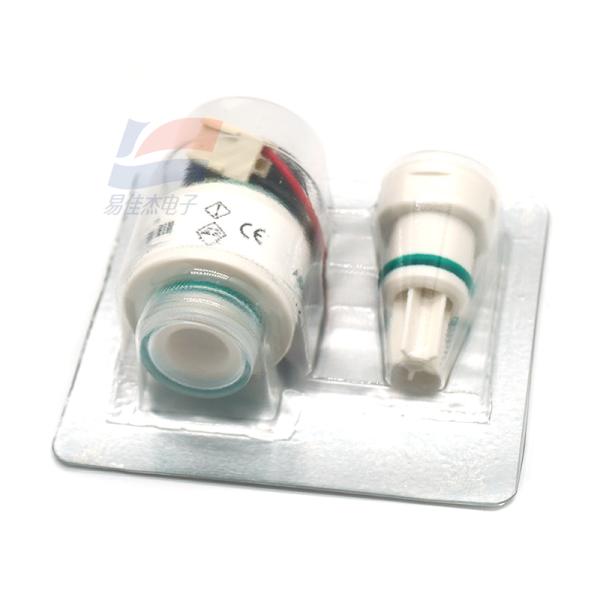

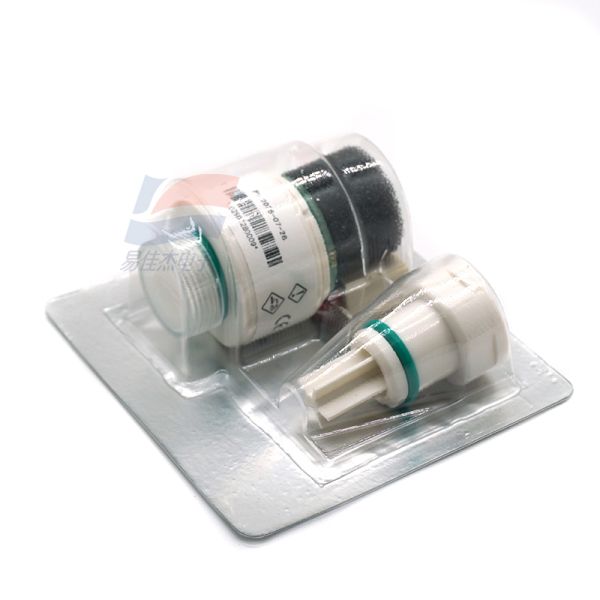

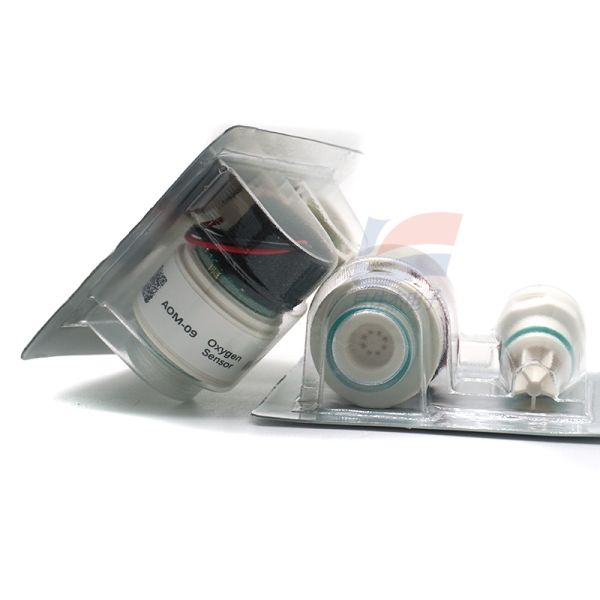

AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices
Specifications
Model Number :
AOM-09
Place of Origin :
CN
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Measurement Range :
0 ~100 vol.% O₂
Output :
9 - 13 mV in 21% O₂
Response Time :
< 15 s (T90)
Baseline Offset :
＜200 μV
External Load Resistor :
≥10 kΩ
Operating Temperature Range :
0 ℃ ~+50 ℃
Description

AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices

Product Features:

  • It adopts a molded body design, with the advantages of fast response and long service life.
  • Meets ISO 80601 - 2 - 55 standard.
  • Linear output from 0% to 100%, no external power supply is required, and it has excellent signal stability.

Application Scenarios:

It can be used as the sensing component of oxygen analyzers, such as oxygen concentrator control devices, medical ventilators, anesthesia equipment, incubators, etc.

Working Principle Partial - pressure electrochemical
Output Voltage 9 - 13 mV (in 21% O₂)
Measurement Range 0 - 100%
Response Time (T90) < 15 s
Temperature Compensation < 2% O₂ equivalent (0 - 40 ℃)
Load Resistance ≥ 10 kΩ
Interface Molex 3 - pin connector (2.54 mm, with connection cable)
Housing Material White ABS
Weight Approximately 36 g
Operating Temperature Range 0 ℃ - +50 ℃
Operating Pressure Range 0.5 bar - 2.0 bar
Operating Humidity Range 0 - 99% RH (non - condensing)
Long - term Drift in 100% O₂ Environment < 5% (voltage decay/year)
Service Life 1.5×10⁶ % O₂ hours (20 ℃); 0.8×10⁶ % O₂ hours (40 ℃)
Shelf Life 13 months from the date of shipment
