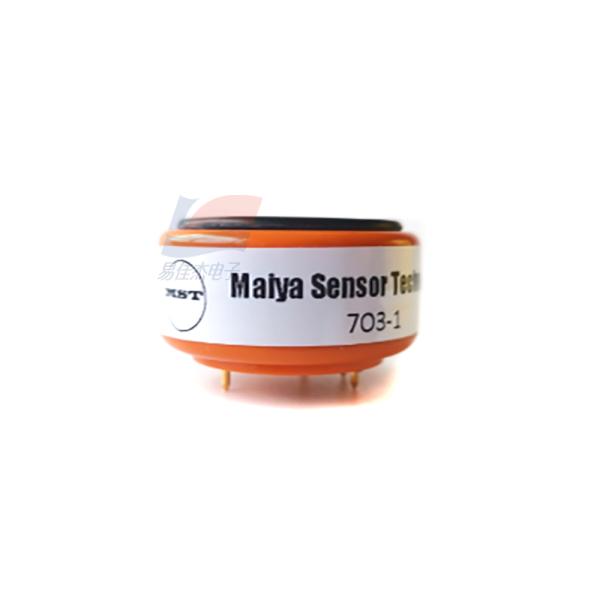

YJJ 7O3 MST 7 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)
YJJ 7O3 MST 7 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)
YJJ 7O3 MST 7 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)
YJJ 7O3 MST 7 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)
Specifications
Brand Name :
YJJ
Model Number :
7O3
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5 to 8 working days
Packaging Details :
Canned
Temperature :
-20℃ ~ +50℃
Humidity :
15%~90%RH (relative humidity), non-condensing
Pressure :
Atmospheric pressure ±10%
Pressure factor :
< 0.02% signal /MBar
Baseline extent :
＜±0.4μA
Long term drift :
< 5% signal loss / year
Description

Product Description:

YJJ 7O3 MST 7 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)

Features:

Model selection is as follows:

7O3-500ppb

7O3-1

7O3-5

7O3-10

7O3-50

7O3-100

7O3-200

7O3-5000

7O3-30000

Reproducibility: 1% output signal

Output linearity: Linear, regression coefficient R' - 0.999

Operating temperature range: 20℃ to +50℃

Humidity range: 15% to 90% RH (no condensation)

Operating pressure: Atmospheric pressure ± 10%

Pressure coefficient: < 0.02% signal/mBar

Baseline range: < ±0.4 HA

Long-term drift: < 5% signal loss/year

Bias voltage: Not required

Load resistance: 10 ohms

Built-in filter: None

Life: 2 years (in air)

Shelf life: 1 year (from the date of shipment)

Anti-interference characteristics:

The company requires the use of the target gas (the gas to be tested) for calibration and testing to ensure the accuracy of the detection and alarm equipment. The purpose of providing anti-interference data is to understand the cross-response characteristics of the sensor to certain other gases, rather than providing alternative gases for calibration; the response characteristics of cross-interfering gases are not guaranteed to be linear, and there will be significant cross-gas sensitivity variations among sensor batches. Therefore, if the cross-gas is used for calibration, the malt sensor cannot guarantee the accuracy of the detection and alarm equipment.

Specifications:

Pressure Atmospheric pressure ±10%
Pressure factor < 0.02% signal /MBar
Baseline extent ＜±0.4μA
Weight 5 g

YJJ 7O3 MST 7 Series Electrochemical Ozone Sensor Is Used For Gas leakage Monitoring (Multiple Ranges Available)
