Product Description:

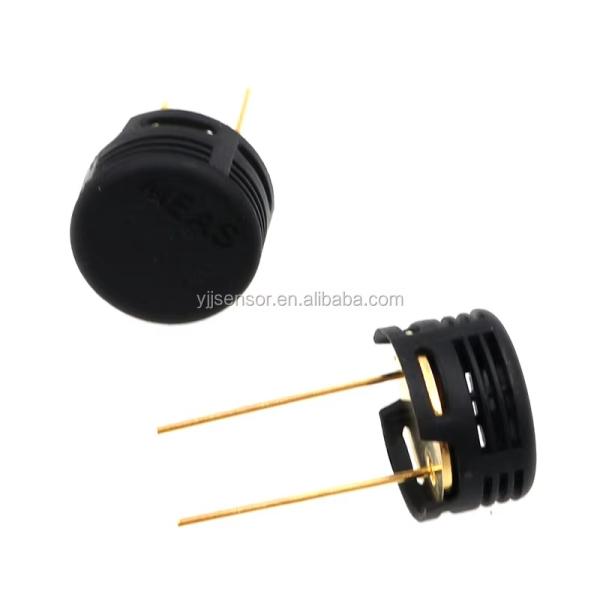

YJJ HS1101LF Capacitive Humidity Sensor Elements Are Used in Field of Automotive Air Quality Control

Features:

Humidity sensor HS1101/HS1101LF

Humidity sensor HS1101/HS1101LF sensor humidity sensor

I. introduction to humidity sensor of HS1101/HS1101LF sensor

The hygro-sensitive capacitor element HS1101/HS1101LF sensor is based on a unique process design.Full interchangeability, no correction required in standard environment, fast dehumidification under long time saturation, automatic welding including wave soldering, high reliability and long time stability, patented solid polymer structure, suitable for - voltage or frequency output loop, fast response time.

Humidity sensor main parameters of the humidity sensor:

(1) capacitance elements based on unique process design and patented solid polymer structure

(2) high precision: 2%RH, excellent - output

(3) wide range: 1 ~ 99% RH, wide working temperature range - 60 ~ 140 ℃ (HS1101LF), - 40 ~ 100 ℃ (HS1101)

(4) humidity output is very little affected by temperature, and no temperature compensation is needed for room temperature use

(5) response time of 5 seconds, anti-condensation, rapid recovery after 10 seconds of immersion or condensation

(6) anti-static, anti-dust, effective resistance to various corrosive gas substances

(7) long-term stability and reliability, with an annual drift of 0.5%RH/ year

(8) good interchangeability

(9) variation of capacitance and humidity: 0.31pf/%RH(HS1101LF), 0.3431pf/%RH(HS1101), typical value: 180pf@55%RH

Iii. Typical application of humidity sensor for HS1101/HS1101LF sensor

Temperature and humidity meter

Hatching machine

Air conditioning, dehumidifier, humidifier and other products

Electronic, pharmaceutical, food, storage, tobacco, textile, meteorological and other industries. OA equipment
