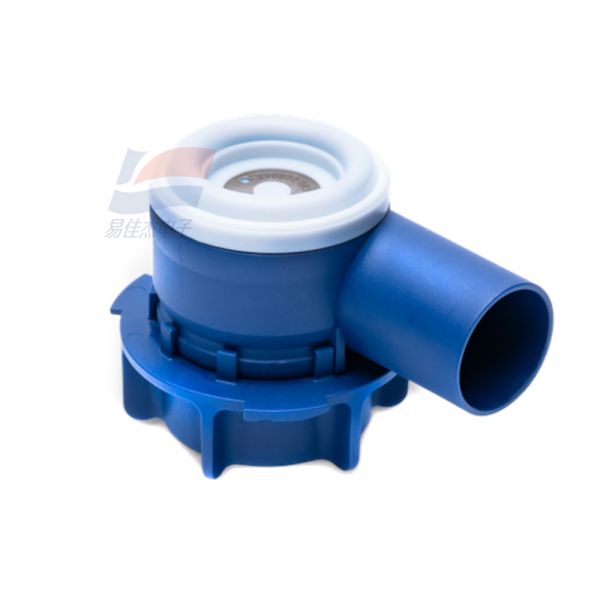

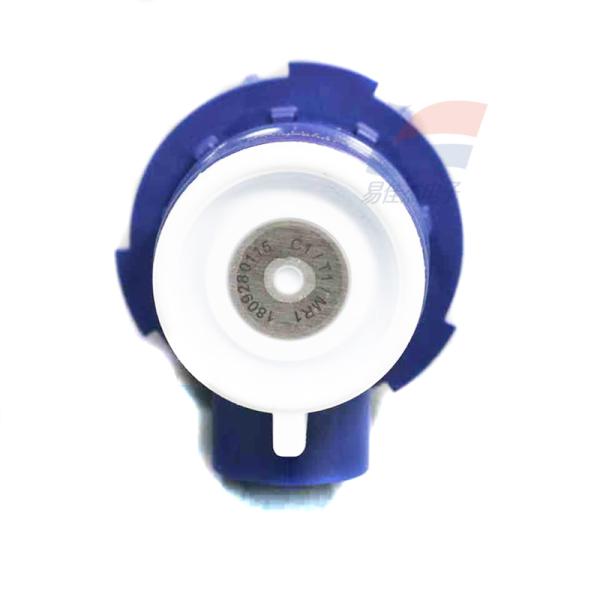

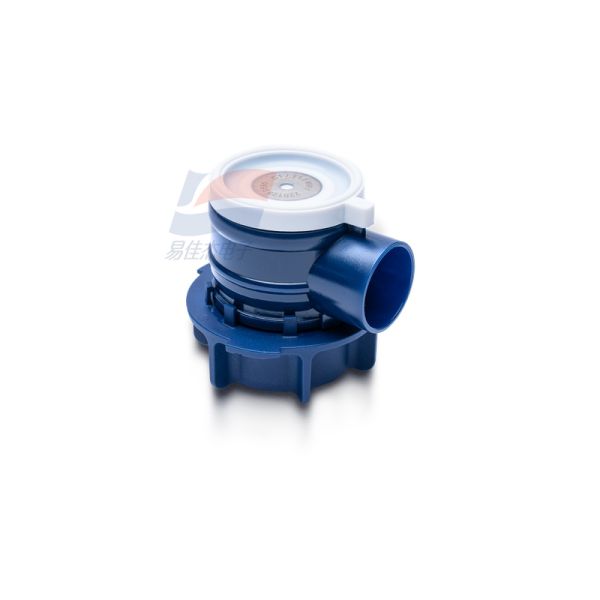

YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm
Specifications
Flow range :
0 to 180 l/min (short term 260 l/min)
Accuracy :
Calibrated flow sensor
Brand Name :
YJJ
Model Number :
161175
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
1500
Delivery Time :
5-8 days
Packaging Details :
Bagged
Weight :
Approx. 14 g
Material :
Complies with ISO 10993-1:2009
Dead space :
< 11 ml (functional)
Resistance :
< 0.027 cmH2O/(l/min)
Description

Product Description:

YJJ 161175 New Model C1 Repeated Exhalation Valve With Diaphragm

Features:

Diameter (ID, OD [mm]) / Description

Material

1 Connector OD15, ventilator side PSU

2 Tubing-PVC

3 Connectors for tubing Differential pressure measurement PSU

4 Direction index--

5 Individual serial number--

6 Connector OD22/ID15, patient sidePSU

7 Flap-PET Details Flow range 0 to 180 l/min (short term 260 l/min) Dead space

< 11 ml (functional)

Resistance

< 0.027 cmH2O/(l/min) over the complete flow range (-180 l/min to 180 l/min)

Weight

Approx. 14 g without tubes, 68 g with 188 cm tubes, 89 g with 260 cm tubes, 110 g with 330 cm tubes

Material

Complies with ISO 10993-1:2009 (biocompatibility) and Directive 2011/65/EU (RoHS).

Does not contain natural rubber latex, DEHP, or BPA.

Accuracy

For calibrated flow sensor volume-related parameters:

--C1/T1/MR1/C2/C3/C6 ventilators: ± 10% or ± 10 ml (whichever is greater)

--G5/S1 ventilators: ± 15% or ± 20 ml (whichever is greater)

- original adult disposable flow sensor is applicable to the following models:

GALILEO Galileo

RAPHAEL Raphael --G5

C Series

Suitable for supply of - Galileo/Galileo/Raphael/Arabella/G5/C1/C2/C3

- original C1/C2 oxygen battery 396200

C1 original battery 369108

C2 original battery

C1, T1, MR1, high-efficiency filter PN161236

C2, C3, high-efficiency filter 160216

C2 repeat exhalation valve with diaphragm 160245 New machine C1 repeat exhalation valve with diaphragm 161175 - Raphael Galileo exhalation valve 151228 GALINEO electromagnetic valve (new) 394043 RAPHAEL (Raphael) electromagnetic valve 394045 - (Raphael) original adult flow sensor 155363/281637 - (Raphael) original neonatal flow sensor 155000 - original repeatable adult flow sensor 155362

Specifications:

Temperature

Operating: -20°C to 50°C (-4°F to 122°F)

Storage: -20°C to 60°C (-4°F to 140°F)
Operating time 28 days or depending on hospital infection control protocols, patient secretions, and nebulization of medication
Accessory Tube clip, calibration adapter ID22 / OD15
Identification Individual serial number
Regulatory Medical has established and applies a quality management system and fulfills ISO 13485 and ISO 9001. The flow sensor has been designed to comply with: Medical Device Regulation (EU) 2017/745, EN 980, EN 1041, ISO 5356-1, ISO 10993-1, ISO 14971
