Specifications
Brand Name :
Winsen
Model Number :
ZE03-NH3
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Month
Delivery Time :
3-5work days
Packaging Details :
Standard Package
Working Voltage :
DC 3.7V～9V
Working Current :
＜ 5 mA
Working Life :
＞ 1 year
Size :
ø23.5mm*24.5mm
Description

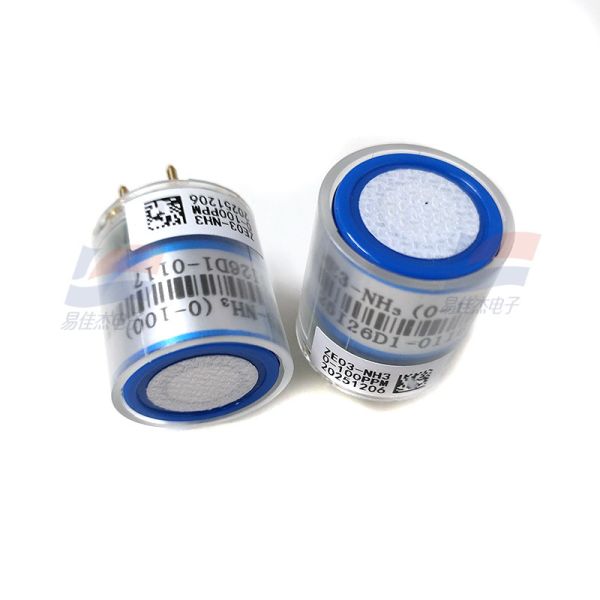

ZE03-NH3 Electrochemical Gas Sensor Module Test For O2 H2S NH3

Principle Introduction:
ZE03 is a general-purpose and high-performance electrochemical module. It uses three electrodes, electrochemical gas sensor and high-performance micro-processor. By installing different gas sensor, the module could detect relevant gas. It is with built-in temperature sensor to make temperature compensation, which makes it could detect the gas concentration accurately. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.

Applications :
Portable and fixed gas detector, various gas detection equipment and situation.

Specification:

Model No.
 ZE03
Target Gas CO, SO2, NH3, H2S, O2 and so on
Measurement Range C0: 0~1000 ppm SO2: 0~20 ppm NH3: 0~100 ppm
Output Data

UART Output (3V electrical level)

Analog Voltage
Operating Environment
Temp.: 0～50℃
Hum.: 20%RH-90％RH
Storage Environment

Temp.: 0～55℃

Hum.: 20%RH-90％RH
