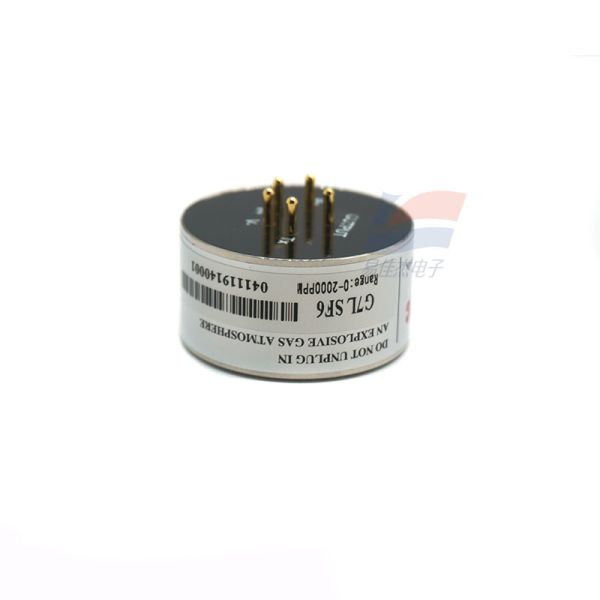

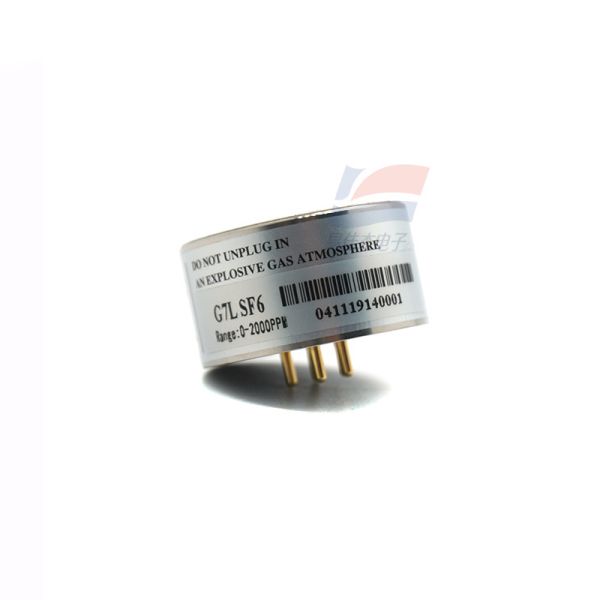

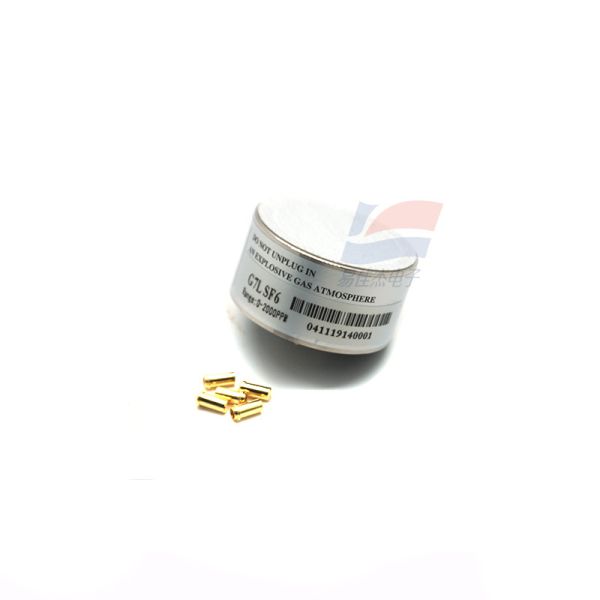

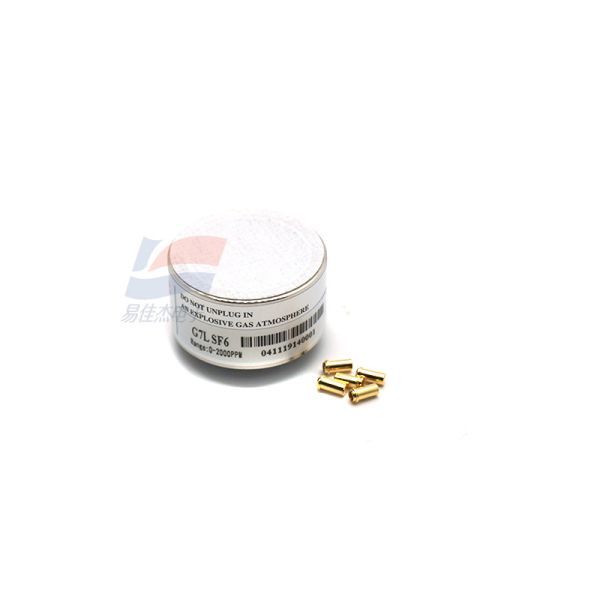

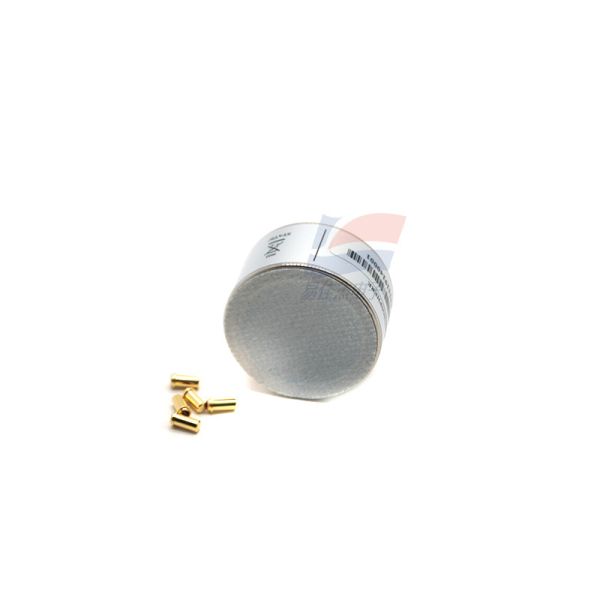

YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
Specifications
Brand Name :
YJJ
Model Number :
G7L SF6
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
5-8 days
Packaging Details :
Box pack
Measurement range :
0~1000ppm
Response time (T90) :
≤ 25 seconds
Linear error :
≤± 2% FS
Supply voltage :
3.3~6VDC
Description

Product Description:

YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor

Features:

G7L SF6 gas sensor is a sulfur hexafluoride gas sensor based on non dispersive infrared (NDIR) technology, designed specifically for SF6 monitoring in power equipment such as GIS. It features high precision, anti-interference, and long lifespan.

Core parameters
Gas detection: Sulfur hexafluoride (SF6)
Measurement range: 0~1000ppm (expandable to 2000ppm/3000ppm)
Response time (T90): ≤ 25 seconds
Linear error: ≤± 2% FS
Working principle: Non dispersive infrared (NDIR), dual wavelength technology, temperature compensation
Anti interference ability: not affected by gases such as H2O, alcohol, CO2, etc
Electrical Characteristics
Supply voltage: 3.3~6VDC
Drive current: average 45mA, maximum 180mA
Power consumption: average 0.23W
Output signal:
Analog output: 0.4~2V
Digital output: Modbus RTU (1200bps)
physical properties
Shell material: High temperature resistant and corrosion-resistant stainless steel
Volume: Standard 7-series structure, compact and easy to integrate
Service life: Long life (NDIR technology can reach 10 years)
Additional features
Communication protocol: Supports Modbus RTU

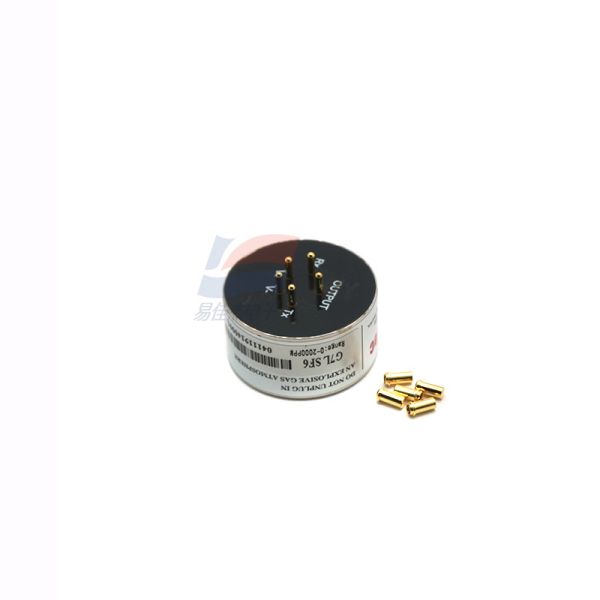

Pin definitions: V+/V - (power supply), Tx/Rx (serial port), OUTPUT (analog output)
Preheating time: 1 minute
Application scenarios
Suitable for SF6 leakage monitoring, purity analysis, and online monitoring systems in power equipment, which can be integrated into GIS controllers or IoT platforms. ‌

Specifications:

Drive current average 45mA
maximum 180mA
Power consumption 0.23W
Analog output 0.4~2V

YJJ G7L SF6 0-1000PPM Non Dispersive Infrared (NDIR) Sulfur Hexafluoride Gas Sensor
