Product Description:

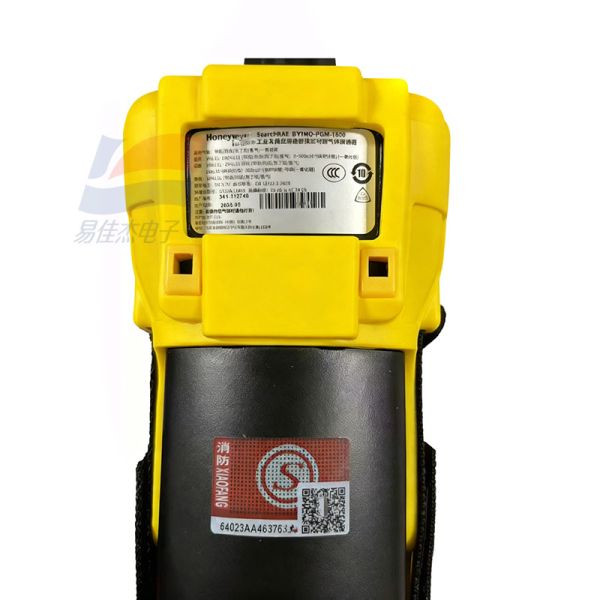

YJJ PGM-1600 Pump Suction Type Composite Gas Detector Used Field Of Gas Safety Detection

Features:

PGM-1600 is a portable gas detector produced by RAE Systems. It supports multiple sensor configurations and is suitable for gas concentration monitoring in hazardous environments. The following are the key parameter descriptions:
Basic Configuration
Sensor Type: Supports metal oxide sensors (MOS), catalytic combustion sensors (LEL), thermal conductivity sensors (TC), and electrochemical sensors (EC). Optional sensors include oxygen, combustible gas (0-100% LEL), and methane (0-2000 ppm).
Detection mode: The standard configuration includes both oxygen (0-30% Vol) and combustible gas (0-100% LEL). It also supports expansion to a three-in-one model (such as adding hydrogen sulfide or carbon monoxide).
Core Function
Alarm Function: Sound and light alarm (high-brightness LED flashing), default alarm threshold can be customized.
Data recording: Supports SD card storage. The recording interval can be set to 60 seconds. The data types include minimum value, average value, maximum value, etc.
Display and Operation: Backlit large screen display, with a strap design, six-key operation (left key, right key, mode key, power key, lighting key).
Power Supply and Battery Life
Battery: Rechargeable lithium battery or alkaline battery. Continuous working time is approximately 16 hours.
Charging base: Supports dual functions (charging + data transmission).
Physical Characteristics
Protection Level: Waterproof and anti-fouling rubber casing, with built-in lighting lamp.
Weight: Not specified, but designed as portable.
Calibration and Maintenance
Calibration method: Supports fresh air calibration and standard gas calibration (requires connection to the calibration gas cylinder).
Calibration cycle: It is recommended to calibrate once every 6 months or once a year.

Specifications:
