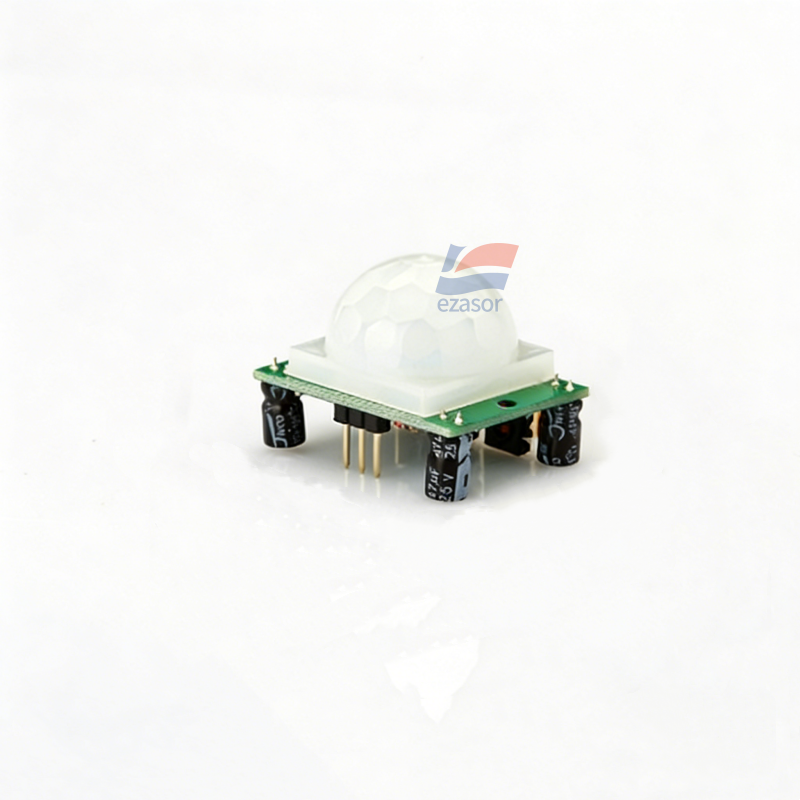

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
Specifications
Brand Name :
Winsen
Model Number :
ZRD09
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Month
Delivery Time :
3-5Workingdays
Packaging Details :
Standard Package
Working Voltage :
5～20V DC
Static Current :
＜65µA, @5V
Level Output :
High Level, 3V; Low Level, 0V
Trigger Mode :
Repeatable/Unrepeatable
Description

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared

Features:
Automatic Induction;
Photo-resistor control;
Two trigger modes;
Induction blocking time;
High-level output;

Applications:
Applications:
Security products,
Human body induction toys,
Human body induction lamps, switches, and appliances
Industrial automatic controlling

Specification:

Delay Time
 3~300S(adjustable)
Blocking Time Default as 4S
PCB Size 32×24×24mm(L×W×H)
Detection Angle 100°(Depend on the Lens)
Working Temperature -10℃ ~ +70℃
Fresnel Lens Size Diameter 23mm(default)
Detection Distance 4~8m(adjustable)

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared
