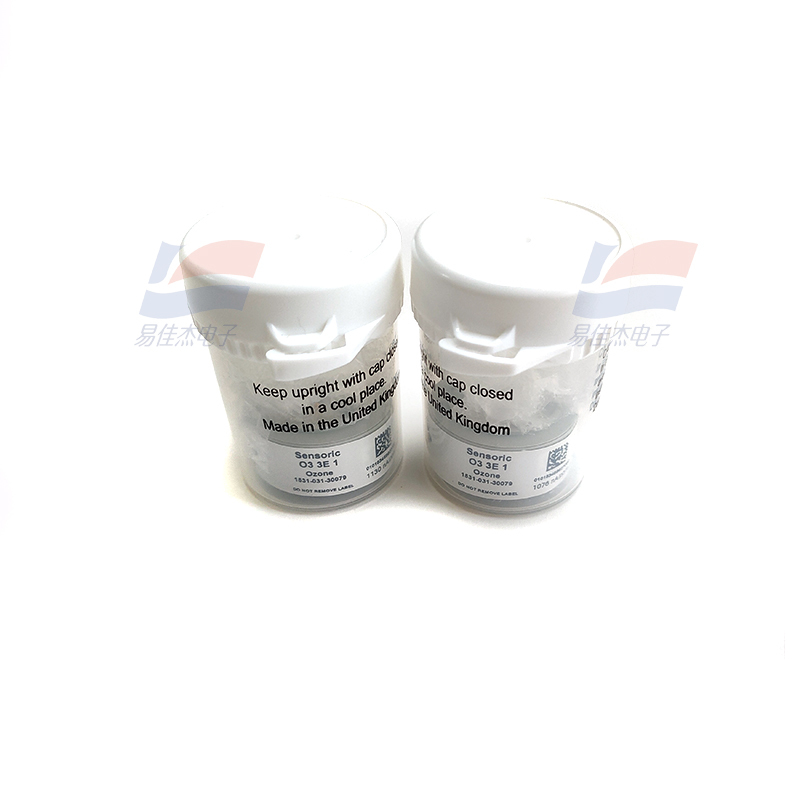

O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
Specifications
Model Number :
O3 3E 1 1531-031-30079
Price :
Negotiable
Packaging Details :
Standard Package
Supply Ability :
1000pcs/Month
Zero Current at 20℃ :
<± 20 nA
Payment Terms :
L/C, D/A, D/P, T/T,
Resolution at 20℃ :
＜0.02ppm
Place of Origin :
UK
Delivery Time :
3-5Workingdays
Sensitivity Range :
1000-2000 nAppm
Brand Name :
CITY
MOQ :
1
Measuring Range :
0-1 ppm
Description

O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell

Typical Application Scenarios
1. Online atmospheric air quality monitoring and outdoor ozone station monitoring;
2. Ozone concentration detection for water treatment disinfection and monitoring of ozone disinfection in swimming pools;
3. Monitoring of residual ozone in air purifiers and fresh air systems;
4. Ozone leak alarms for industrial workshops and control/monitoring for laboratory ozone generation equipment;
5. Core sensing elements for portable ozone detectors and fixed gas transmitters.

Product Features

1. Three-electrode structure: Offers superior interference resistance compared to two-electrode ozone sensors and ensures baseline stability.
2. Organic gel electrolyte: Resists drying out, extends service life, and provides enhanced adaptability to temperature and humidity variations.
3. Zero-bias design: Lowers the design threshold for downstream amplification circuitry.
4. High-precision ppb-level detection: Suitable for atmospheric ozone monitoring.
5. High interchangeability: Directly replaces CITY ozone sensor probes of the same dimensions.

Specification:

Resolution < 0.02 ppm; bias voltage 0 mV (no external bias required; simple circuit integration)
Linearity error < 10% of full scale
Response time t50 < 15 s; t90 < 60 s
Long-term drift Sensitivity drift < 10% over 6 months
Theoretical service life > 18 months

O3 3E 1 1531-031-30079 Gas Ozone Sensor 3 Electrode Sensor Cell
