Product Description:

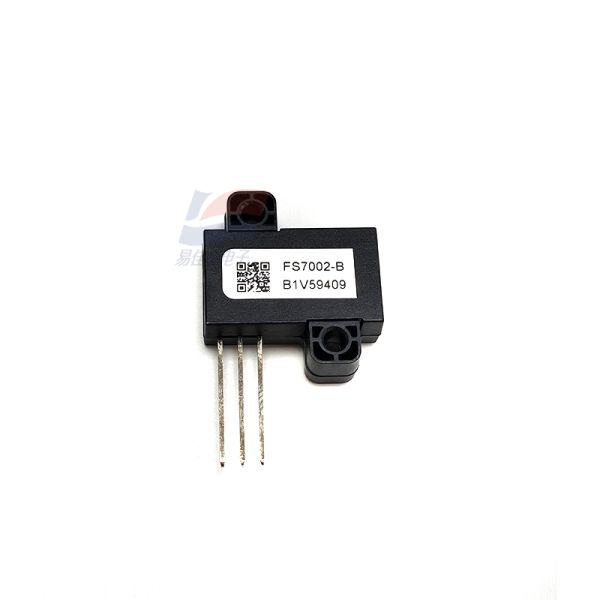

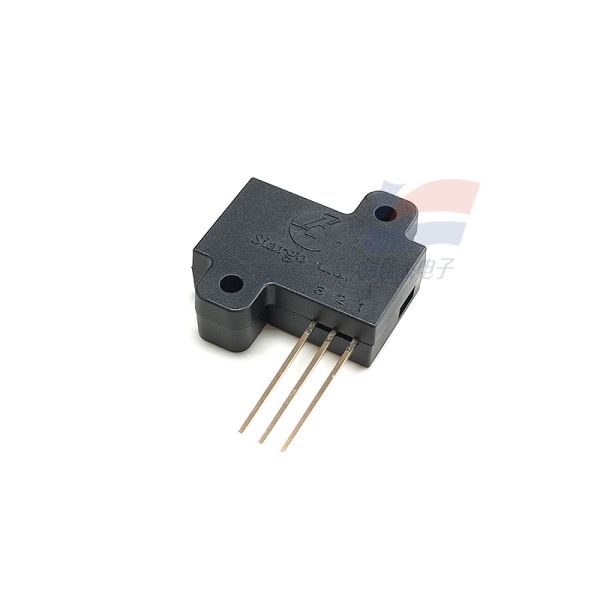

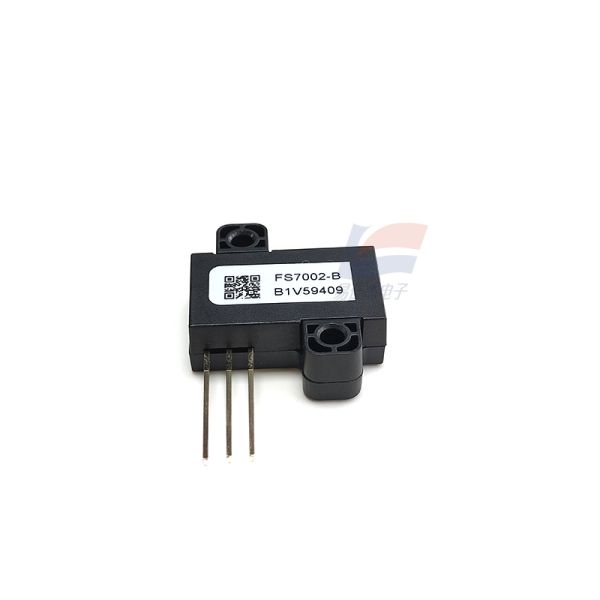

YJJ FS7002-B MEMS Wind Speed /Flow Sensor 0-5m/s for Equipment Cooling Ventilation Monitoring

Features:

I. Core Parameters (FS7002-B)

Model: FS7002-B (standard range)

Measurement medium: Clean, dry air / non-corrosive gas

Wind speed range: 0–5 m/s (bidirectional)

Repeatability: ±3% FS

Response time: < 20 ms

Output signal: Analog voltage 0.2–3.3 VDC (non-linear)

Power supply: 5 VDC ±1%, working current < 10 mA, power consumption < 50 mW

Operating temperature: -10 ℃ ～ +70 ℃

Storage temperature: -20 ℃ ～ +80 ℃

Humidity: < 95% RH (no condensation, no freezing)

Maximum pressure: 50 kPa

Preheating time: 1 minute

Size / Packaging: Micro straight-through, approximately 25.4 × 23.0 × 7.3 mm; 3-pin 2.54 mm pitch

Features: Bidirectional measurement, anti-blockage structure, high sensitivity, capable of measuring very small wind speeds

II. Applications and Usage Scenarios

Equipment cooling air path monitoring (most commonly used)

Projectors, medical equipment, industrial cameras, industrial control computers: Monitoring cooling fan wind speed / air volume, filter blockage alarm, anti-overheating

HVAC ventilation and fresh air system

Small ducts, air outlet of air conditioners, fresh air equipment: Measuring wind speed, determining air pathness, feedback air volume

Air purifiers / purification equipment

Monitoring filter blockage, fan failure, intelligent reminder for filter replacement

Fan / fan status monitoring

Server fans, vehicle fans, small blowers: Real-time detection of abnormal wind speed, blockage, stoppage

Laboratories / small flow monitoring of instruments

Dry air, nitrogen, etc. low flow rate monitoring (non-explosion-proof, non-corrosive environment)

III. Comparison of FS7002 Series (Selection Reference)

FS7002-A: 0–2 m/s, ±4%FS → Low wind speed / High sensitivity

FS7002-B: 0–5 m/s, ±3% FS → General medium range (most commonly used)

FS7002-C: 0–10 m/s, ±2%FS → High wind speed / Large air volume
