Product Description:

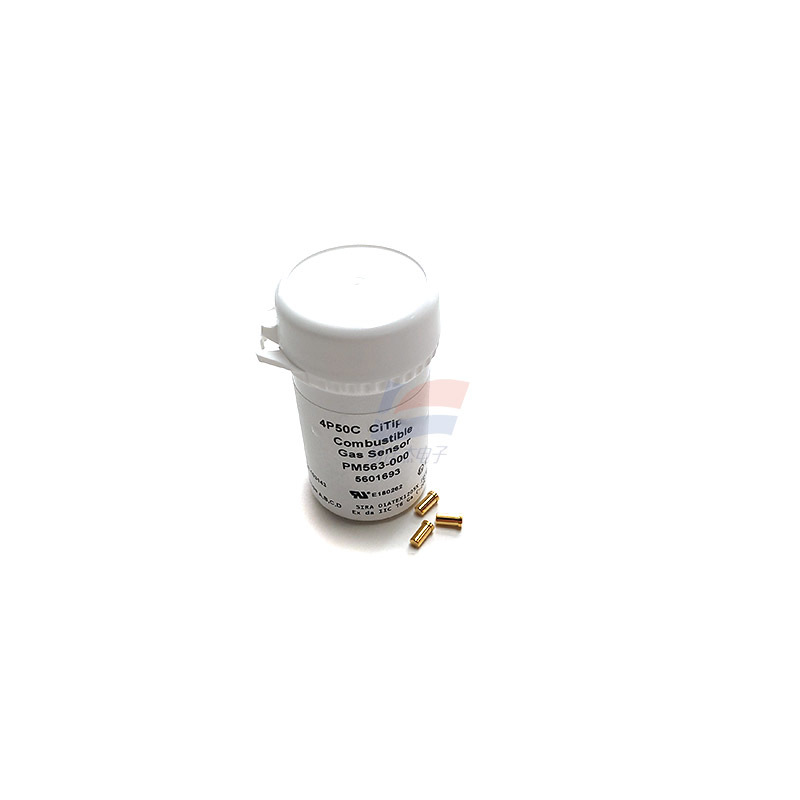

YJJ 4P-50C PM563-000 Combustible Gas Sensor 0-100%LEL for Industrial Flammable Gas Detector

Features:

I. Basic Detection Parameters

Detection Principle: Catalytic Combustion Type

Measurement Range: 0 - 100% LEL

Applicable Gas Types: Methane, Ethane, Propane, Butane, Pentane, Hexane, Carbon Monoxide, Hydrogen

Inapplicable for Detection: High Molecular Hydrocarbons, Alcohols, Ketones, Esters, Sulfur-containing Gases (such as Hydrogen Sulfide)

Sensitivity: 37 ± 7 mV / % for Methane

T90 Response Time: ≤ 20s (Methane Environment)

Linear Range: 0 - 3% Methane with Good Linearity

Anti-poisoning Performance: Enhanced resistance to hydrogen sulfide, silicon poisoning; H₂S filter life is approximately 1000 ppm·hr

II. Electrical Parameters

Power Supply Voltage: DC 4.25V

Component Working Current: 56 ± 6mA

Recommended External Load Resistance: 10Ω

Long-Term Sensitivity Drift: < 5% Signal / Month

Zero Point Drift: < 5% LEL - Methane / Month

III. Environmental Specifications

Operating Temperature: -20℃ ~ +50℃

Storage Temperature: 0℃ - 20℃

Humidity: 0 - 99% RH (No Condensation)

Operating Pressure: Standard Atmospheric Pressure ± 10%

IV. Physical Dimensions

Main Body Diameter 20.4mm, Total Height 21.1mm, Standard 4-Series Universal Probe Specification; Shell Material 316 Stainless Steel

V. Certification, Lifespan and Warranty

Qualifications: ATEX, UL, CSA Explosion-proof Certification, RoHS Compliance

Warranty Period from Factory: 12 Months

Normal Lifespan: 18 - 24 Months

VI. Application Scenarios

Portable Four-Component Multi-Gas Detector, Fixed Flammable Gas Alarm, Mine Gas Monitoring, Petrochemical Factory, Sewage Well Underground Limited Space, Gas Leak Detection Equipment, Industrial Area Flammable and Explosive Gas Inspection Probe Replacement Part
