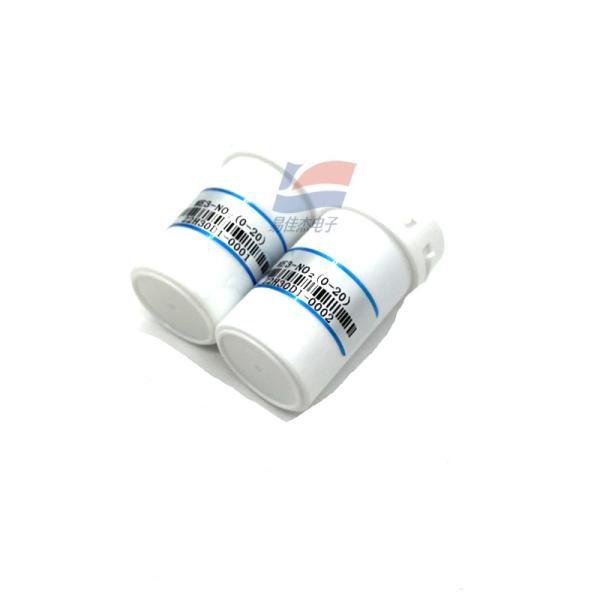

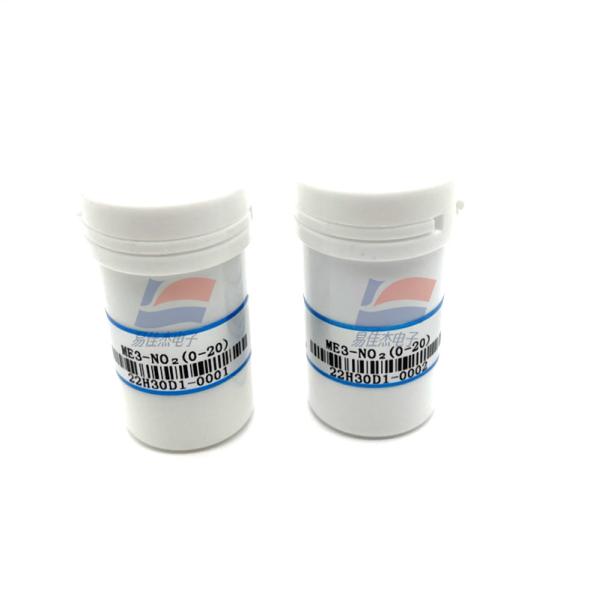

ME3-NO2 Nitrogen Dioxide Gas Sensor Electrochemical Principles 0-20ppm
ME3-NO2 Nitrogen Dioxide Gas Sensor Electrochemical Principles 0-20ppm
ME3-NO2 Nitrogen Dioxide Gas Sensor Electrochemical Principles 0-20ppm
ME3-NO2 Nitrogen Dioxide Gas Sensor Electrochemical Principles 0-20ppm
Specifications
Brand Name :
Winsen
Model Number :
ME3-NO2
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/Month
Delivery Time :
3-5Workingdays
Packaging Details :
Standard Box
Price :
Negotiable
Detection :
Gas Nitrogen Dioxide (NO2)
Detection range :
0~20ppm
Maximum measurement limit :
150ppm
Sensitivity :
(0.78±0.42)uA/ppm
Description

ME3-NO2 Nitrogen Dioxide Gas Sensor Electrochemical Principles 0-20ppm

ME3-NO2 electrochemical gas sensor is based on the principle of electrochemistry, using the measured gas to have the corresponding redox reaction on the working electrode and the counter electrode of the sensor and release the charge, and form a current through the external circuit, the current size is proportional to the gas concentration, thus Realize quantitative measurement of target gas.

Main application
Widely suitable for NO2 detection in industry and environmental protection

Datasheet:

Resolution 0.1ppm
Response time (T90) ≤25S
Bias 0mV
Load resistance (recommended) 10Ω
Repeatability ＜2﹪Output value
Stability (/month) ＜2﹪
Zero drift (-20℃～40℃) ≤0.2ppm
Temperature range ﹣20℃～50℃
Humidity range 15﹪~ 90﹪RH
Pressure range Standard atmospheric pressure ±10%
Service life 2 years (in air)

ME3-NO2 Nitrogen Dioxide Gas Sensor Electrochemical Principles 0-20ppm
