NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases
NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases
NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases
NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases
Specifications
Brand Name :
Nemoto
Model Number :
NAP-50A
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Month
Delivery Time :
3-5work days
Packaging Details :
Standard Package
Price :
Negotiable
power supply voltage :
2.5 + / - 0.25 V DC
Current 2V power supply :
DC 150 ~ 170mA
environment temperature :
Operate at -10 by 50°C
Store at :
10 by 50°C
Description

Product Description:

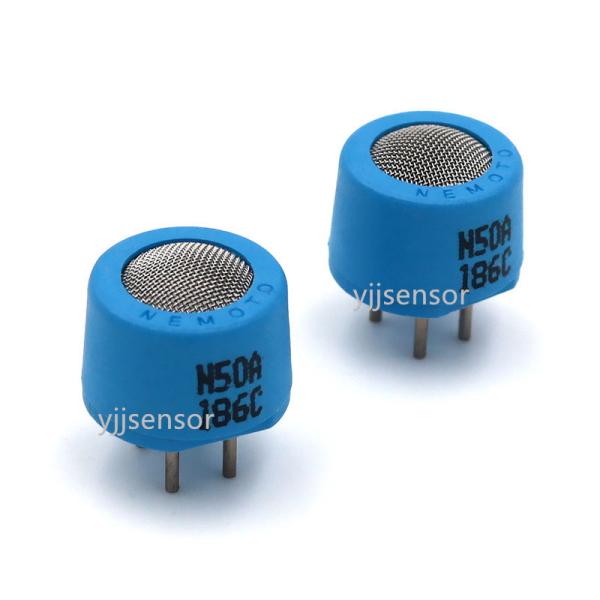

NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases

Features:

Nap-50a is a small size and low power sensor. Nap-50a is mainly used for gas detection. Compared with NAP-55A, NAP-50A has less interference to the alarm caused by alcohol, and the gas detector made by NAP-50A is more reliable. The following are the basic parameters, but it is for civilian use, see the user manual for more information. Refer to the sensor test circuit of NAP-66A.

*Measures flammability directly

*Highly resistant to Catalyst poisons

*Complies with EN50194 standard

*Effectively Linear output to 50%LEL

*Specific to flammable gases

*Unaffected by Humidity

*Very Simple circuitry

*Very Low Long term drift

Specifications:

Detectable Gas All Flammable Gases
Detection range 0-50% LEL
Voltage supply 2.5V +- 0.2V
Current drawn 170mA +-10 mA
Signal Sensitivity 37-53mV/% CH4
Zero Offset (20oC) 0mV +- 35mV
Response time (90%) <10 seconds
Accuracy +- 1% LEL
Expected lifetime >3 years
Long Term Span Drift <+- 2% FSD/ month
Long Term Zero Drift <+1-2mV/year

NAP-50A Catalytic Pellistor Gas Sensor Light Commercial Applications All Flammable Gases
