3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor
3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor
3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor
3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor
Specifications
Brand Name :
CITY
Model Number :
3NFF 3NF/F AF006-J06
Place of Origin :
Britain
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Packaging Details :
Canned
Delivery Time :
3-5work days
Price :
Negotiable
Name :
NO gas Sensor
Operating Principle :
3-electrode electrochemical
Nominal Range :
0-1000 ppm NO
Maximum Overload :
5000 ppm NO
Filter :
To remove SO2 from gas stream
Sensitivity :
0.10 ± 0.02 µAppm
Description

Product Description:

3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor

Features:

Sensitivity* Response Time (T90)*

Baseline Offset (clean air)* Zero Shift (+20°C to +40°C)

Repeatability Output Linearity

ELECTRICAL Recommended Load Resistor

Bias Voltage 10 Ω+300 mV

MECHANICAL Weight

Orientation 22 g

AnyENVIRONMENTAL

Operating Temperature Range

Recommended Storage Temp

Operating Pressure Range

Pressure Coefficient

Operating Humidity Range

-20°C to +40°C (see Note 1)

0°C to 20°C

Atmospheric ± 10%

0.01% signal / mbar

15 - 90% RH non-condensing

<2% signal loss / month

Three years in air

6 months in CTL container

Specifications:

Gas 3NFF (%)
Carbon Monoxide, CO 0
Hydrogen Sulfide, H2S 0
Nitrogen Dioxide, NO2 < 10

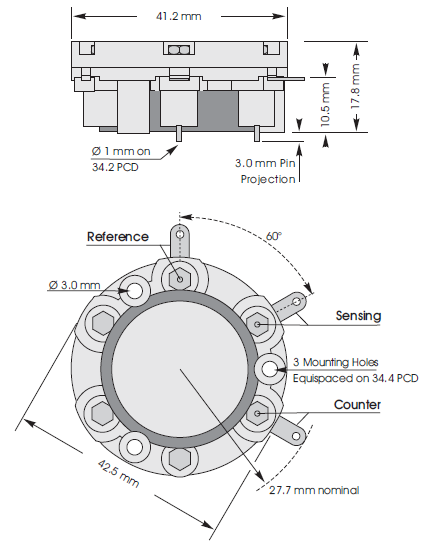

Product Dimensions:

3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor

3NFF 3NF/F AF006-J06 Nitric Oxide Sensor NO Hydrogen 3 Electrode electrochemical Sulfide Sensor
