MPS-2108-030GC Electronic Pressure Sensor Piezoresistive For Oxygen Generator
MPS-2108-030GC Electronic Pressure Sensor Piezoresistive For Oxygen Generator
MPS-2108-030GC Electronic Pressure Sensor Piezoresistive For Oxygen Generator
MPS-2108-030GC Electronic Pressure Sensor Piezoresistive For Oxygen Generator
Specifications
Brand Name :
QL
Model Number :
MPS-2108-030GC
Place of Origin :
TAIWAN
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000/pcs/month
Delivery Time :
3-5work days
Packaging Details :
Tubes of
Price :
Negotiable
size :
8.5 × 8.5 mm
packaging :
DIP
Width Temperature operating range :
-40-85℃
Gauge pressure type :
（1、5.8、15、30、100PSI）
Description

Product Description:

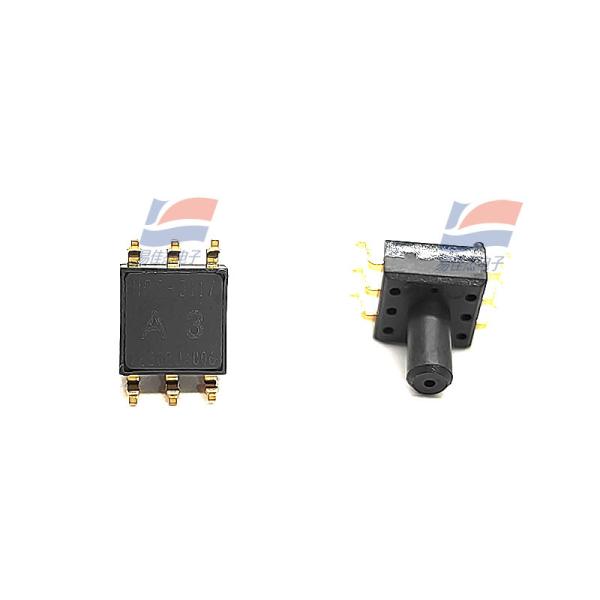

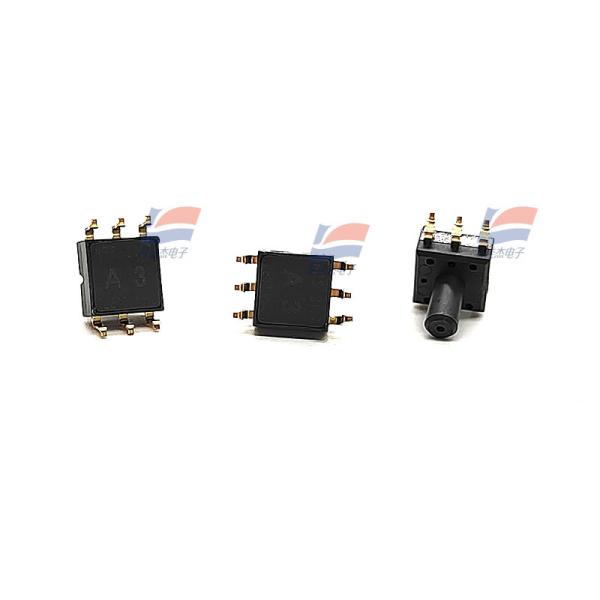

MPS-2108-030GC Electronic Pressure Sensor Piezoresistive For Oxygen Generator

Features:

Full pressure sensor MPS-2100 series is 8.5 × 8.5 mm piezoresistive pressure sensor, which can be input by constant voltage (5 Vdc) or constant current (1, 1.5 mA), with excellent performance and long-term stability.

Product features: 1. DIP package with price advantage.

2. Width temperature operating range: -40 -- 85℃.

3. Solid state reliability.

4. Easy to use.

5. Easy to embed in OEM device.

6. Gauge pressure type (1, 5.8, 15, 30, 100 psi).

7. Overload capacity 2X

Applications: digital sphygmomanometer, digital pressure gauge, environmental monitoring, consumer electronics, sports (such as: waterproof watches, waterproof cameras, etc.), medical monitoring instruments, abandoned sphygmomanometer......

Full load pressure sensor MPS-3110 series is a 7 × 7 mm piezoresistive pressure sensor, which can be input by a constant voltage (5 Vdc) or a constant current (1, 1.5 mA), with excellent performance and long-term stability

Product features: 1. Surface adhesive packaging with price advantage.

2. Width temperature operating range: -40 -- 85℃.

3. Solid state reliability.

4. Easy to use.

5. Easy to embed in OEM device.

6. Gauge pressure type (1, 5.8, 15, 30, 100 psi).

7. Overload capacity 2X

Applications: digital sphygmomanometer, digital pressure gauge, environmental monitoring, consumer electronics, sports (such as: waterproof watches, waterproof cameras, etc.), medical monitoring instruments, abandoned sphygmomanometer......

Specifications:

Operating voltage 5VDC or 1.5mA
Full range output 75±25mV
Zero output ±25mV
Nonlinear ±0.3%F.S (typical value)
Repeatability ±0.05%F.S (typical value)

MPS-2108-030GC Electronic Pressure Sensor Piezoresistive For Oxygen Generator
