MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
Specifications
Model Number :
MMD1001E
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5Workingdays
Packaging Details :
Standard Box
Brand Name :
YJJ
Place of Origin :
China
Price :
Negotiable
Product number :
MMD1001E
Gas detection :
Formaldehyde (CH2O)
Interfering gas :
Alcohol, carbon monoxide and other gases
Output Data :
UART output (3.3V level)
Description

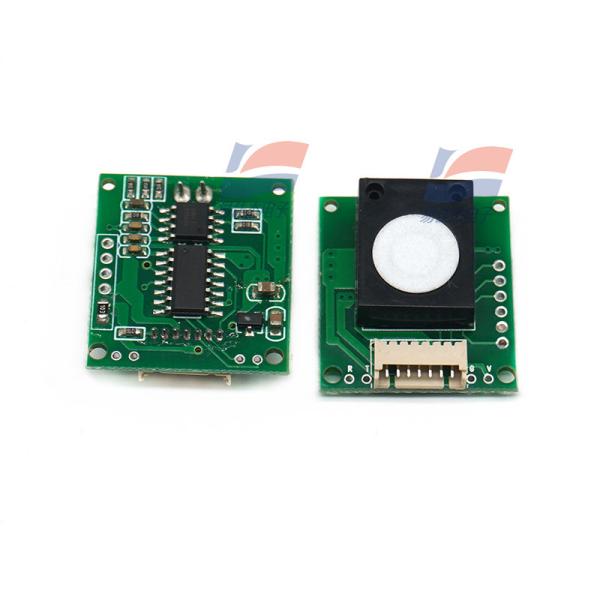

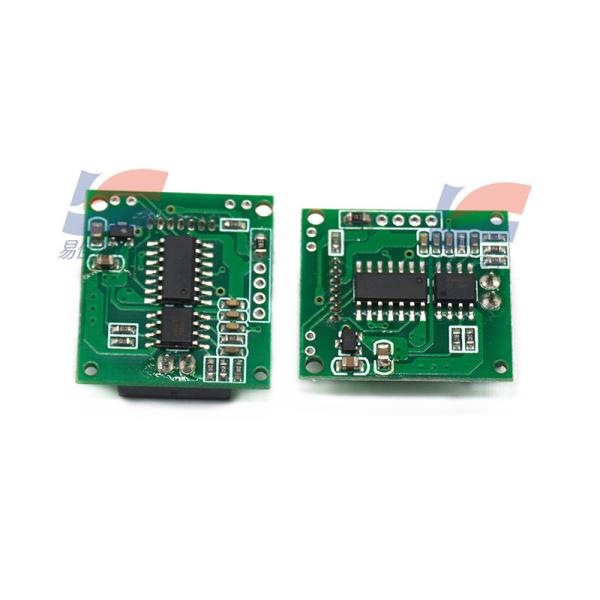

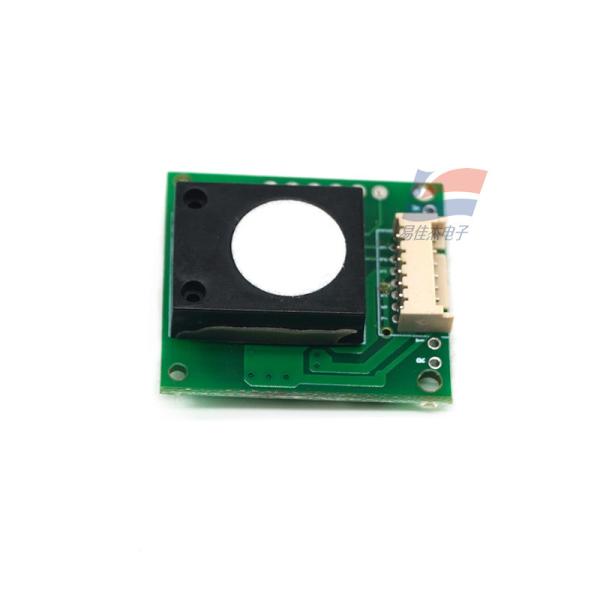

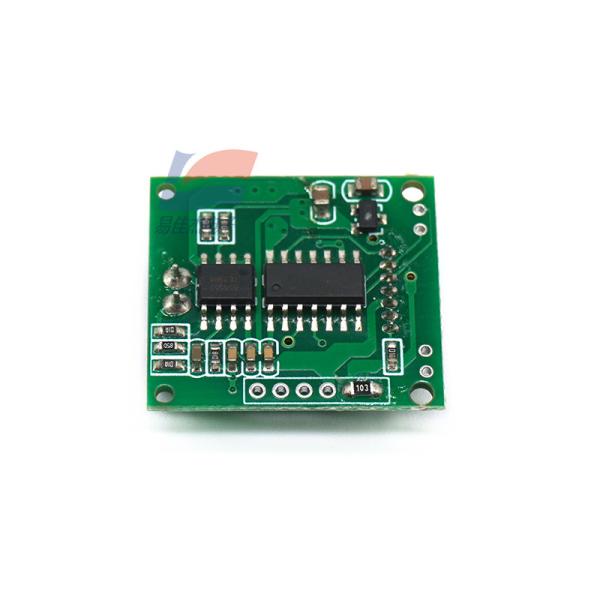

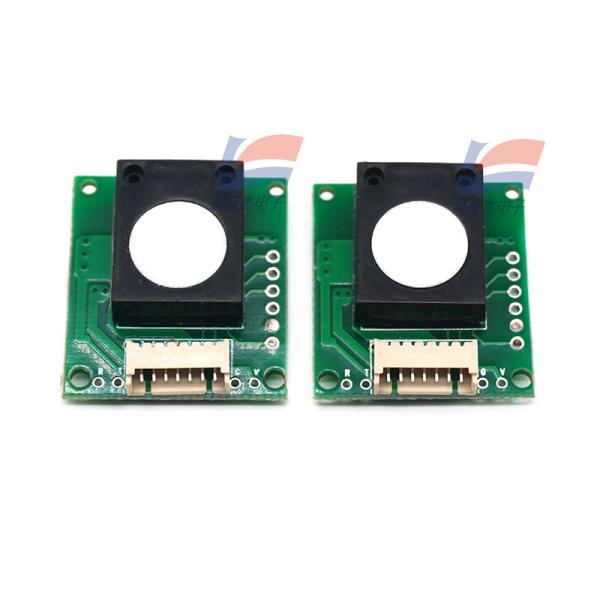

MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized

MMD1001E electrochemical formaldehyde module is a general-purpose, miniaturized module. Using electrochemical principles to detect CH2O in the air, it has good selectivity and stability. Built-in temperature sensor for temperature compensation; also has digital output and analog voltage output mode, easy to use. MMD1001E is a general-purpose gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.

Datasheet:

Warm-up time ≤3 minutes
Response time ≤60 seconds
Recovery time ≤60 seconds
Range 0～5ppm
Resolution ≤0.01ppm
Working temperature -20℃～50℃
Working humidity 15%RH-90%RH (non-condensing)
Storage temperature 0～25℃
Service life 2 years (0°C to 35°C in air)
Module size Length23mm×width25.5mm×height 6.5mm

MMD1001E Electrochemical Formaldehyde Gas Sensor Module Miniaturized
