150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection
150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection
150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection
150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection
150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection
150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection
Specifications
Brand Name :
CHAOYUE
Model Number :
Z3
Place of Origin :
Shaanxi, China
MOQ :
1 pc
Price :
USD 1.00 - 50.00 / pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
1 - 3 weeks
Packaging Details :
Carton box or wooden case depends on the size of products
Bore Size :
20 - 150 mm
Outer Diameter :
47 - 200 mm
Thickness :
31 - 65 mm
Weight :
0.29 - 6.7 kg
Toruqe :
0.3 - 28.5 kN.m
Application :
Industry machinery, shaft connection
Description

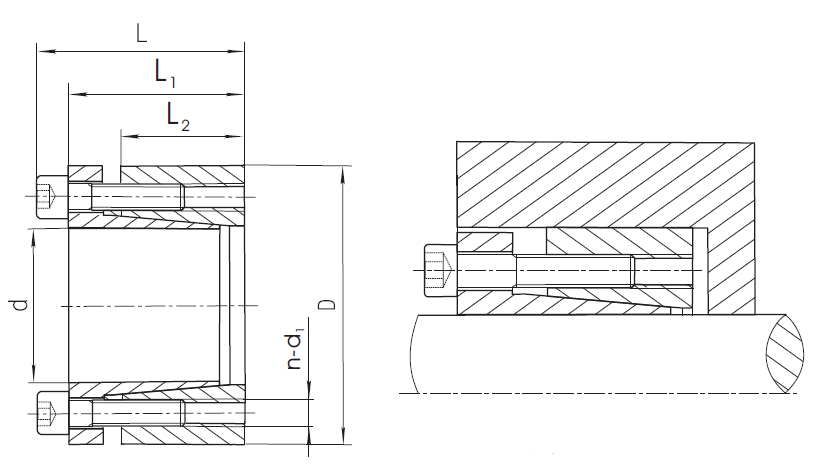

Mounting Example

150mm Bore Size 37mm Length Keyless Shaft Coupling For Shaft Connection

Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Toruqe
[kN.m]
20 47 37 31 22 M6 4 30 0.3 287 90 17 0.29
22 47 37 31 22 M6 4 30 0.33 260 90 17 0.27
25 50 37 31 22 M6 5 35 0.44 287 106 17 0.3
28 55 37 31 22 M6 5 35 0.49 256 96 17 0.36
30 55 37 31 22 M6 5 35 0.53 239 96 17 0.34
35 60 37 31 22 M6 6 45 0.81 246 106 17 0.38
40 65 37 31 22 M6 6 45 0.94 215 98 17 0.41
45 75 46 38 25 M8 6 80 1.86 283 134 41 0.7
50 80 46 38 25 M8 6 80 2.07 255 128 41 0.76
55 85 46 38 25 M8 7 90 2.54 270 138 41 0.82
60 90 46 38 25 M8 7 90 2.77 247 130 41 0.88
65 95 46 38 25 M8 8 105 3.58 261 141 41 0.94
70 110 60 50 33 M10 7 140 5.1 244 128 83 2.1
75 115 60 50 33 M10 7 140 5.46 228 119 83 2.2
80 120 60 50 33 M10 7 140 5.85 214 112 83 2.3
85 125 60 50 33 M10 8 175 7.45 230 129 83 2.4
90 130 60 50 33 M10 8 175 7.9 217 124 83 2.6
95 135 60 50 33 M10 10 205 9.9 257 149 83 2.7
100 145 68 58 41 M10 10 220 11 192 114 83 3.7
105 150 68 58 41 M10 10 220 11.55 210 114 83 3.9
110 155 68 58 41 M10 10 220 12.1 175 107 83 4
120 165 68 58 41 M10 12 260 15.7 192 120 83 4.3
125 170 68 58 41 M12 10 320 17.5 189 120 145 4.8
130 180 68 58 41 M12 10 320 20.7 188 120 145 5.9
140 190 68 58 41 M12 10 320 22.5 175 114 145 6.3
150 200 77 65 45 M12 12 380 28.5 196 130 145 6.7
