Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control
Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control
Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control
Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control
Specifications
Brand Name :
KORIG
Model Number :
KMH
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
10,000~100,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
60 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
product name :
Single Girder EOT Gantry Crane
Keywords :
single girder gantry crane
Lifting Capacity :
16 ton
Span :
7.5-31.5 m
Lifting Height :
6-9 m
Lifting Speed :
8 m/min
Hoist Traveling Speed :
20 m/min
Crane Traveling Distance :
30 m/min
Control :
Pendant Control or Remote Control
Power Source :
380V 50Hz or as per your request
Description

Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control

Single Girder Gantry Crane Details

The MH type gantry crane is used with CD, MD and other types of electric hoist. It is a small and medium-sized crane with rail operation. Its applicable crane capacity is 3-32 tons, applicable span is 12-50 meters, and working environment is -20 ~ 40. ° C. This product is a general-purpose using crane,which is mostly used for loading and unloading or grasping materials in open aerial and warehouses. The crane control mode have ground control and cabin control. The crane structural frame have truss type, box type, top box with truss leg type for choose

Single Girder EOT Gantry Crane Technical Data

Lift weight(T)

5

10

16

20

Span(m)

8/12/16/20/24

8/12/16/20/24

8/12/16/20/24

8/12/16/20/24

Lift height(m)

6/9/12

6/9/12

6/9/12

6/9/12

Voltage

380/customize

380/customize

380/customize

380/customize

Single Girder EOT Gantry Crane Features

  1. Consisted with gantry frame, lifting mechanism, travelling mechanism, and electrical control.
  2. Gantry frame includes main girder, legs, bottom end beams
  3. Matching with CD1 or MD1 electric hoist, is a light small crane with rail travelling.
  4. Span:10.5-30m, and we could design it according to your requirements.
  5. Working class:A3,A4,A5
  6. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place
  7. They are also suited to indoor applications
  8. Can be constructed with a cantilever to allow handling outside the rail centers.

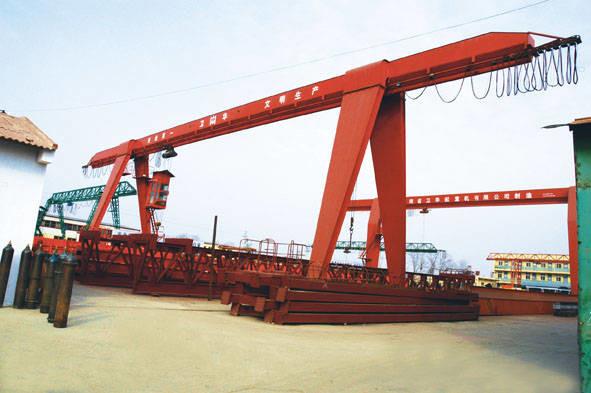

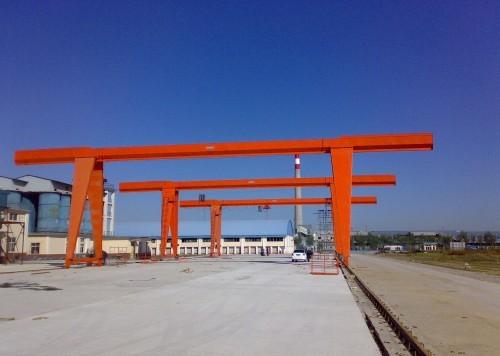

Single Girder EOT Gantry Crane Images

Span 7.5 - 31.5m Single Girder EOT Gantry Crane 5 Ton Ground Control
