Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Electric Single Girder Overhead Crane 8 m/Min
Specifications
Brand Name :
KORIG
Model Number :
LDA
Certification :
CE ISO
Place of Origin :
HENAN
MOQ :
1 set
Price :
＄1000-100000
Payment Terms :
L/C, T/T
Supply Ability :
100000set/year
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
Machinery Test Report: :
Provided
Core Components: :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Ge
Lifting speed: :
8m/min
Warranty of core components: :
1 year
Condition :
New
Span :
7.5-31.5m
After-sales service provided :
Engineers available to service machinery overseas
Feature :
Bridge Crane
Application :
workshop,Warehouse,factory,warehouse and so on
Control method :
Wireless Remote Control,Ground control,Pendent line
Rated loading capacity :
1~32t
Power source :
3 Phase 380V 50hz or be customized
Description

Electric Single Girder Overhead Crane 8 m/Min

Single Girder Overhead Crane Introduction

  • The single-girder bridge crane has a more reasonable structure and higher overall steel strength.
  • Used together with CD1 and MD1 electric hoist, it is a light crane with a lifting capacity of 1 ton to 32 tons. The span is 7.5m ~ 31.5m. The working level is A3~A4.
  • This product is widely used in the lifting of goods in workshops, warehouses and material warehouses. Do not use this equipment in flammable, explosive or corrosive environments.

Single Girder Overhead Crane Parameter

Capacity (T) 1,2,3,5,10T 16,20T,30T,32T
Span(M) 7.5-31.5M
Overhead Crane travelling Travelling speed(m/min) 20 30 45 60 75 20 30 45 60 75
mechanism Reducer ratio 58.78 39.38 26.36 19.37 15.88 58.78 39.38 26.36 19.37 15.88
Motor Model ZDY21-4 ZDY21-4 ZDY122-4 ZDY131S-4 ZDY112L1-4
Power(kw) 2*0.8 2*1.5 1.5*2 2.2*2 2.2*2
Rotation (m/min) 1380 1380
Lifting mechanism Electric hoist model CD1/MD1 MD1/HC
(electric hoist)&electric hoist Lifting speed (m/min) 8,8/0.8 7,7/0.7 3.5 3.5/0.35
travelling mechanism
Lifting height (m) 6 ,9 ,12, 18, 24, 30 12,18,24,30
Travelling speed (m/min) 20(30) 20(30)
Motor Taper Squirrel-cage type Taper Squirrel-cage type
Work duty A3-A5
Power supply 380V 50HZ three phase or according to your requirements

Single Beam Overhead Crane Features

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life : 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

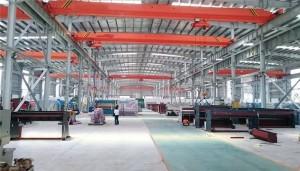

Single Girder Overhead Crane Images

Electric Single Girder Overhead Crane 8 m/MinElectric Single Girder Overhead Crane 8 m/Min
