Specifications
Brand Name :
KORIGCRANES
Model Number :
MGT
Certification :
CE, ISO, GOST, TUV, SGS
Place of Origin :
China
MOQ :
1 set
Price :
USD 30000~5000000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
60 work days
Packaging Details :
Electric hoist and Electrical parts are packed in wooden cases. Steel structures are packed in plastic woven cloth. rain proof packing
Feature :
Rubber tyre gantry crane
Capacity :
5-500t
Temperature :
-20~40C
Working duty :
A5
Traveling type :
Straight traveling, Cross traveling
Control Way :
Cabin room control
Turning :
Left turn, Right turn, Ackman turning
Slope :
Less than 2%
Traveling ground :
Concrete, asphalt etc hard floor
Working wind :
Less than grade 6
Unworking wind :
Less than grade 11
Warranty :
One Year
Description

Double Girder Rubber Tyre Gantry Crane with Capacity 5 - 500ton

Brief introduction of Rubber Tyre Gantry Crane

The rubber tyre gantry crane is widely used in factory and workshop, lifting and transporting Steel or concrete girder, rollers, container etc. for loading and transporting cargo from truck/one place to the another destination place.

The rubber tyre gantry crane mainly consists of main structure, hoisting mechanism, steering mechanism, electrical control system and wheel set.The main structure equipped with double rail trolley winch as lifting mechanism, with rubber tyre wheel can straight traveling, cross traveling, turning left and right and ackman turning.

Rubber type type wheels could be get flexible moving turning which is very convenient for material handing.

Rubber Tyre Gantry Crane Parameter

Main technical specifications
Capacity ton 5-500t
Span m 4-35m
Lifting speed m/min 5/0.8m/min Double speed
Lifting height m 4-20m
Work duty / M5
Long traveling mechanism
Speed m/min 20
Base distance m 4-8m
Steering mode / Straight, pivot steering, Ackermann steering
Driving mode / Electric driving
Wheel type / Rubber tyre Tyre type: 16.00-25
Traveling gradient Less than 3%
Work duty / M3~M8
Whole machine
Power source / 380V 50hz 3phase Generator for optional
Work duty / A3'~A8
Max. wheel pressure kN Depend on capacity
Control way / Cabin room, Pendent line,Remote control
Tyres Number / 4
Working temperature / -20-40C
Color
Crane structure / Yellow According to the demand
Hoist / Green

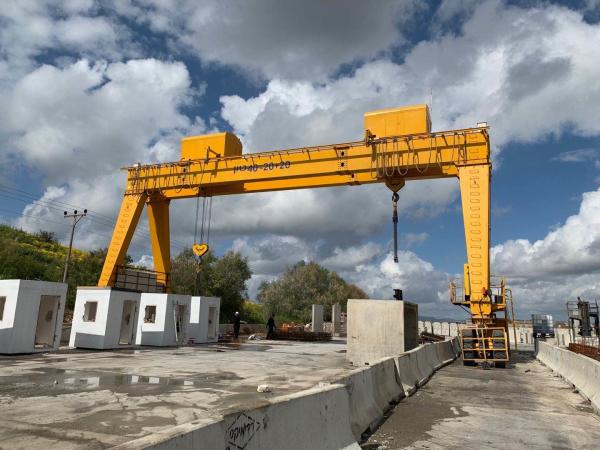

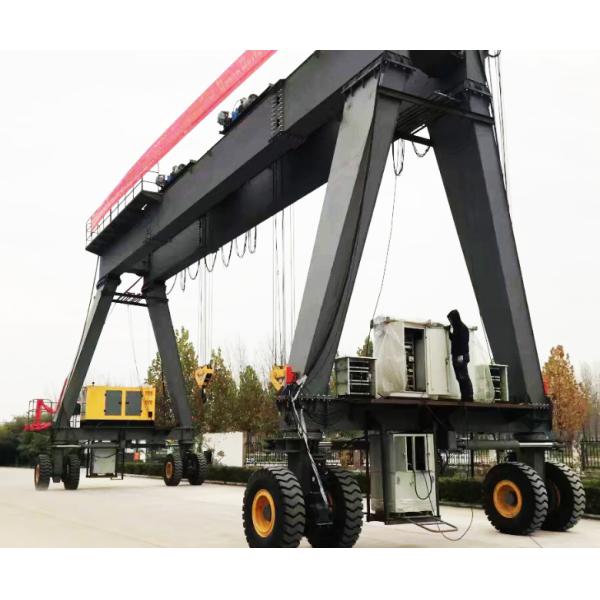

Rubber Tyre Gantry Crane Details

5 - 500ton Capacity RTG Cranes Electric Double Girder Rubber Tyre Gantry Crane

5 - 500ton Capacity RTG Cranes Electric Double Girder Rubber Tyre Gantry Crane

5 - 500ton Capacity RTG Cranes Electric Double Girder Rubber Tyre Gantry Crane
