2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control
2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control
2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control
2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control
Specifications
Brand Name :
KORIG
Model Number :
CD1
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 Set
Price :
2,500~8,000 USD/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Set/Year
Delivery Time :
21 Days
Packaging Details :
Electrical parts are packed in wooden boxes, and steel structural parts are packed in color tarpaulin.
Name :
MD1 Type Electric Wire Rope Hoist with 2 Lifting Speeds
keywords :
Small Electric Wire Rope Hoist
Lifting Capacity :
0.5-32 t
Lifting Speed :
8/0.8 m/min
Cross Traveling Speed :
20 m/min
Lifting Height :
6/9/12/18/24/30 m
Power Source :
3 Phase 380 V 50 Hz
Control Voltage :
36 V
Control :
Pendant Control or Remote Control
Usage :
Lifting & moving materials
Description

2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control

Small Electric Wire Rope Hoist Description

MD1 wire rope electric hoist is a light and small lifting equipment with compact structure, light weight, small size, universal parts and easy operation. It has two motors, the big motor provides the fast speed, the small motor provides the slow speed.

Small Electric Wire Rope Hoist Technical Data

Capacity (T) 0.5 1 2 3 5 10 16
Lifting Height(m)

6/9/12/18/24/306/9/12/18/24/30
Lifting speed(m/min) 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8 7/0.7 3.5/3.5
Traveling speed(m/min) 20 20 20 20 20 20 20
Wire Rope 6×37-4.8 6×37-7.4 6×37-11 6×37-13 6×37-15 6×37-15 6×37-20
Voltage (V) 380/220/440
Frequency(Hz) 50/60
Phase 3

Small Electric Wire Rope Hoist Parameter

Reducer: The reducer adopts hard tooth surface transmission design, long life and high mechanical efficiency.

Motor: The motor uses a conical rotor brake motor. The motor load duration is 25%.

Motor ingress protection: degree of protection: IP44/IP54

Insulation class: Class B

Limit: There are upper and lower two-way safety limit devices.

Push button switch: 36V safety voltage switch, according to customer needs, the hoist can be equipped with a wireless remote control.

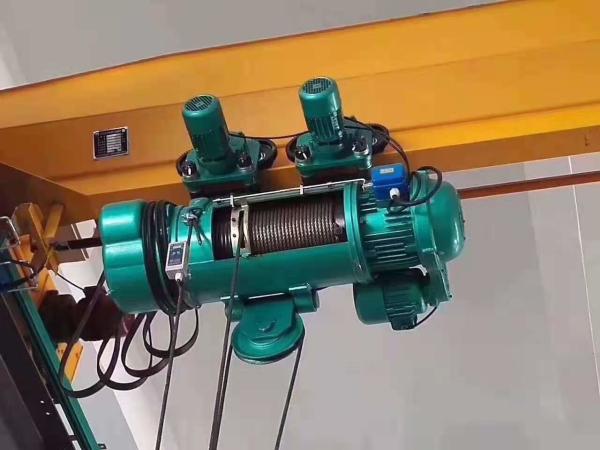

Small Electric Wire Rope Hoist Images

2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control

2 Lifting Speeds Small Electric Wire Rope Hoist 500kg MD1 Type Pendant Control
