10-16 Ton CD Type Wire Rope Hoist Traveling Hoist For Lifting 8m / Min
10-16 Ton CD Type Wire Rope Hoist Traveling Hoist For Lifting 8m / Min
Specifications
Brand Name :
KORIG
Model Number :
CD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD500-USD5000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000sets/month
Delivery Time :
10-15 workdays
Packaging Details :
Export wooden box
name :
CD model compact wire rope hoist
keywords :
Electric Wire Rope Hoist
Model :
CD
Lifting speed :
8m/min
Certificate :
CE,ISO
Teaveling speed :
20m/min
Color :
According to customer demand
Control model :
Pendent
capacity :
0.25~16t
work duty :
M4
Description

10-20 Ton CD Type Wire Rope Hoist Traveling Hoist For Lifting 8m / Min​


Electric Wire Rope Hoist Brief Introduction

Our factory can produce 1-20 tons of wire rope electric hoist, including CD and MD type,low headroom hoist,HC type large weight and high working level,HB/BHC explosion proof type , European electric hoist and Chain hoist.

The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc.

It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed.

Electric Wire Rope Hoist Technical Specification

Type CD1(MD1)
Capacity (t) 0.25 0.5 1 2 3 5 10 16
Lifting Height (m) 3~9 6~12 6~30 6~30 6~30 6~30 9~30 9~30
Lifting Speed (m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Travel Speed (m/min) 20 20/30 18
Rail 10-20b 16-28b 20a-32c 25a-50b 32b-50b 32b-63c
Work Duty M4

Electric Wire Rope Hoist Characteristic

1.CD1/MD1 type electric hoist, have a compact structure, light weight, small volume, convenient operation, reliable quality, widely used, etc.
2.It can be used alone, also can as a complete set install in the electric single-girder, double beam, cantilever, gantry crane, etc.
3.When required fast speed and low speed, it should choose MD1 electric hoist type with double lifting speed.

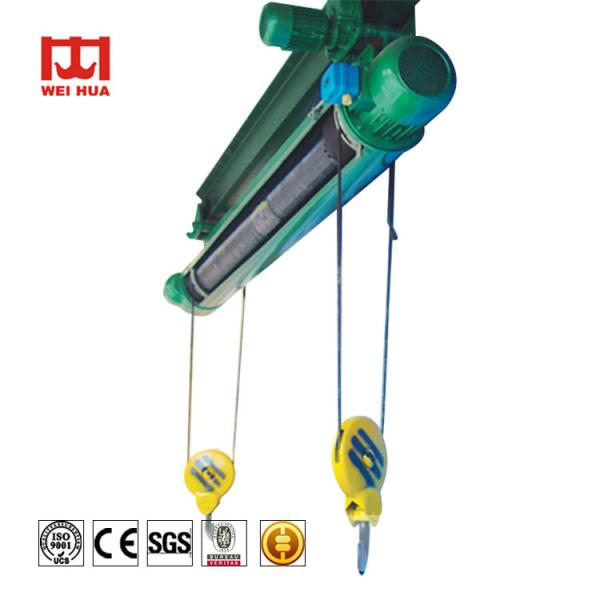

Electric Wire Rope Hoist Images

10-16 Ton CD Type Wire Rope Hoist Traveling Hoist For Lifting 8m / Min

10-16 Ton CD Type Wire Rope Hoist Traveling Hoist For Lifting 8m / Min
