QB Type Anti Explosion Double Beam Overhead Crane 10 Ton - 20 Ton
QB Type Anti Explosion Double Beam Overhead Crane 10 Ton - 20 Ton
Specifications
Brand Name :
KORIGCRANES
Model Number :
QB
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 3,000~20,000 /SET
Payment Terms :
L/C, T/T
Supply Ability :
100 set per month
Delivery Time :
20 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
product name :
Anti Explosion Double Beam Overhead Crane
keywords :
QB Type Overhead Traveling Crane
Condition :
New
Feature :
Birdge crane
Control method :
Remote control
Working class :
A3/A4
Warranty :
1 year
Lifting capacity :
1-20T
Span :
7.5-30m
Material :
Q235B
Description

QB Type Anti Explosion Double Beam Overhead Crane With Explosion - Proof Electric Hoist

Anti Explosion Double Beam Overhead Crane Introduction

  • Overhead crane capacity up to 20 tons

  • Compact design with standard headroom electric hoist for maximum space utilization

  • Minimum IP55 for electrical enclosure

  • Enclosure up to IP66 for protection against flammable dust or extreme weather conditions.

  • All crane motors are equipped with Insulation Class F and Temperature Rise Class B to provide a longer operational life span

  • Electronic overload protection c/w warning horn

  • Noise level below 85 dB(A) at full load

  • Two speed control via pole changing for the hoisting motion, via inverter control for trolley and bridge motion for smooth and precise operation.

  • Thermal protection for pole-changing and 3 PTC thermistors for inverter drive

  • Crane brake with asbestos-free lining which activates automatically in case of power failure

  • Supply Voltage: 380 V–460 V, 3 Phase, 50–60 Hz, Others upon request.

Anti Explosion Single Beam Overhead Crane Parameter

Loading capacity

5 ~ 500t

Lifting height

3 ~ 30 m or customized

Lifting speed

Vary with lifting capacity, or customized.

Span

10.5~31.5 m/min

Lifting mechanism

Wire rope hoist or electric chain hoist

Working class

A5-A8

Working temperature

-20~40

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Control voltage

DC -36 / 48V

Motor protection class

IP54 IP55 IP65

Control way

Cabin, wireless remote, pendant push button

Safety device

Buffer,current overload protection,overload device

Advantages of Anti Explosion Single Beam Overhead Crane

  • Innovative structure,

  • Attractive appearance

  • Advanced technology

  • Flexible and smooth operation

  • High safety and reliability

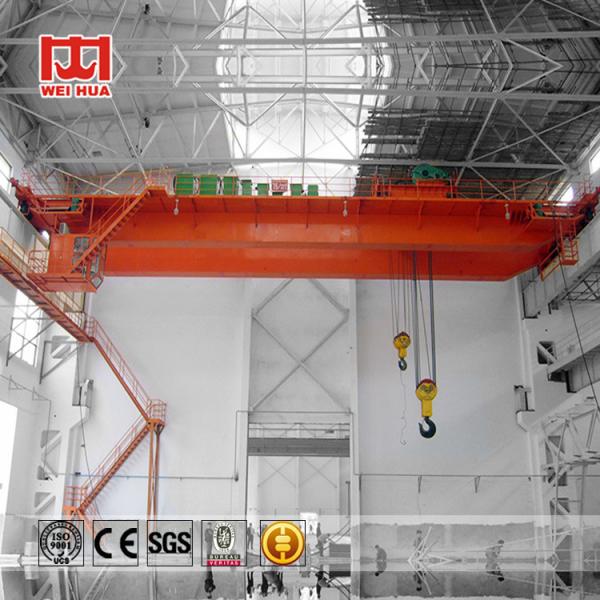

Anti Explosion Single Beam Overhead Crane Details

QB Type Anti Explosion Double Beam Overhead Crane 10 Ton - 20 Ton
