QB Type Anti Explosion Single Beam Overhead Crane with Electric Hoist
QB Type Anti Explosion Single Beam Overhead Crane with Electric Hoist
QB Type Anti Explosion Single Beam Overhead Crane with Electric Hoist
QB Type Anti Explosion Single Beam Overhead Crane with Electric Hoist
Specifications
Brand Name :
KORIGCRANES
Model Number :
LB
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 3,000~20,000 /SET
Payment Terms :
L/C, T/T
Supply Ability :
1000 set per month
Delivery Time :
20 working days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
Product name :
Anti Explosion Single Beam Overhead Crane
Keywords :
QB Type Overhead Traveling Crane
Condition :
New
Feature :
Explosion Proof
Control method :
Remote control
Working class :
A3/A4
Warranty :
1 year
Lifting capacity :
1-20T
Span :
7.5-30m
Material :
Q235B
Description

QB Type Anti Explosion Single Beam Overhead Crane With Explosion - Proof Electric Hoist

Anti Explosion Single Beam Overhead Crane Introduction

  • Overhead crane capacity up to 20 tons

  • Compact design with standard headroom electric hoist for maximum space utilization

  • Minimum IP55 for electrical enclosure

  • Enclosure up to IP66 for protection against flammable dust or extreme weather conditions.

  • All crane motors are equipped with Insulation Class F and Temperature Rise Class B to provide a longer operational life span

  • Electronic overload protection c/w warning horn

  • Noise level below 85 dB(A) at full load

  • Two speed control via pole changing for the hoisting motion, via inverter control for trolley and bridge motion for smooth and precise operation.

  • Thermal protection for pole-changing and 3 PTC thermistors for inverter drive

  • Crane brake with asbestos-free lining which activates automatically in case of power failure

  • Supply Voltage: 380 V–460 V, 3 Phase, 50–60 Hz, Others upon request.

Anti Explosion Single Beam Overhead Crane Parameter

Loading capacity

5 ~ 500t

Lifting height

3 ~ 30 m or customized

Lifting speed

Vary with lifting capacity, or customized.

Span

10.5~31.5 m/min

Lifting mechanism

Wire rope hoist or electric chain hoist

Working class

A5-A8

Working temperature

-20~40

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Control voltage

DC -36 / 48V

Motor protection class

IP54 IP55 IP65

Control way

Cabin, wireless remote, pendant push button

Safety device

Buffer,current overload protection,overload device

Advantages of Anti Explosion Single Beam Overhead Crane

  • Innovative structure,

  • Attractive appearance

  • Advanced technology

  • Flexible and smooth operation

  • High safety and reliability

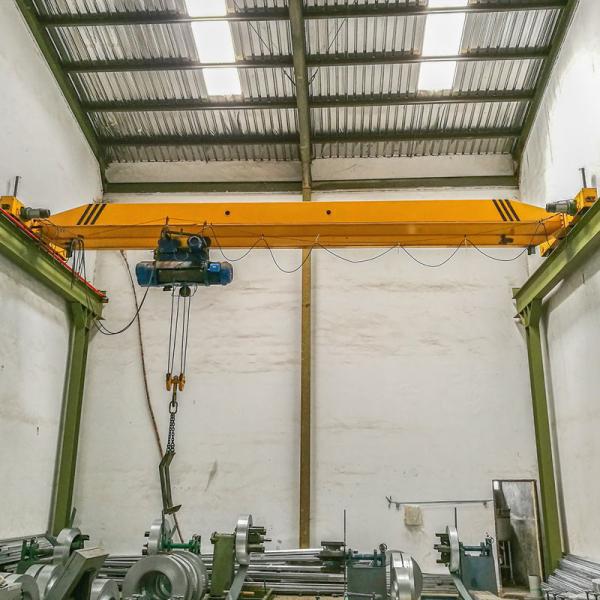

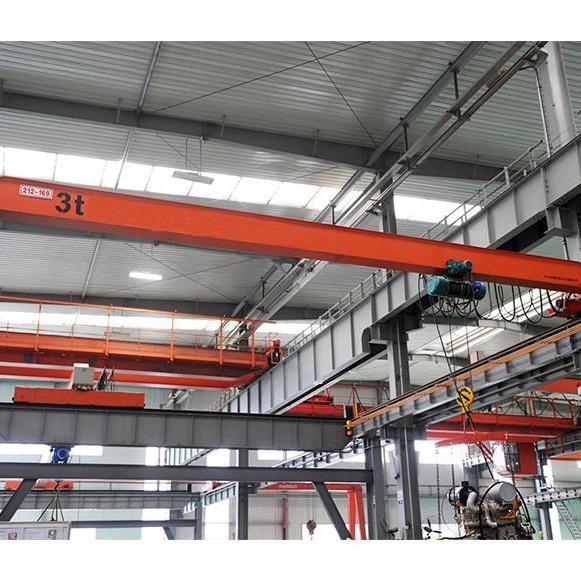

Anti Explosion Single Beam Overhead Crane Details

QB Type Anti Explosion Single Beam Overhead Crane with Electric HoistQB Type Anti Explosion Single Beam Overhead Crane with Electric Hoist
