35t Lifting Mechanism RTG Gantry Crane With Rubber Tyre
35t Lifting Mechanism RTG Gantry Crane With Rubber Tyre
35t Lifting Mechanism RTG Gantry Crane With Rubber Tyre
35t Lifting Mechanism RTG Gantry Crane With Rubber Tyre
Specifications
Brand Name :
KORIGCRANES
Model Number :
RTG
Certification :
ISO CE SGS GOST
Place of Origin :
CHina
MOQ :
1 set
Price :
USD 10000-USD100000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000sets/per year
Delivery Time :
60-90 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
name :
container rubber tyre gantry crane
keywords :
RTG container crane
application :
port , yard
lifting mechanism :
electric winch trolley
control method :
cabin / remote control
working duty :
A6 A7 A8
working temperature :
-20℃~+40℃
capacity :
35t 40.5t
span :
22m 30m
Description

Heavy Duty Container Rubber Tyre Gantry Crane For 35t 40.5t Container Lifting

Container Rubber Tyre Gantry Crane

Rubber-type container gantry cranes are suitable for international standard container transportation, loading and unloading in container yards and railway container yards. They have stable performance, high efficiency, and easy maintenance. They also have appropriate safety instructions and overload protection devices to ensure maximum safety for operators

Technical Parameters of RTG Crane

Following technical specification is for reference.

Spreader is for container 20`, 40` and 45`.
Capacity of Spreader t 30.5 35 40.5
Working Duty A6 A6 A6
Span S 23.47 23.47 23.47
Base B 7.4 7.4 7.5
Lifting Height H 15.4 15.4 18.2
Speed Hoisting With full load m/min 12 12 23
Only with spreader 24 24 46
Travese 70 70 70
Traveling With full load 45 45 45
Only with spreader 90 90 90
Main Dimensions L 25370 25370 25370
H1 22030 22334 25134
L1 905 905 905
L2 950 950 975
Total Power of Diesel Motor KW ~305 ~305 ~400
Total Power of Generator KVA ~518 ~595 ~720
Max. Working Load of Wheel KN 273 287 320

Safety Feature of RTG Crane

  • Automatic rectify deviation control
  • Weight overload protection device
  • Top quality polyurethane buffer
  • Phase protection
  • Lifting limit switch

Application of RTG Crane

RTG Crane Container Rubber Tyre Gantry Crane is widely used in outdoor ofware house,container yard, port,material yard, or workshop to assemble, to load and unload cargo,cabin control or remote control or pendent line with push button.

Container Rubber Tyre Gantry Crane Sketch

35t Lifting Mechanism RTG Gantry Crane With Rubber Tyre

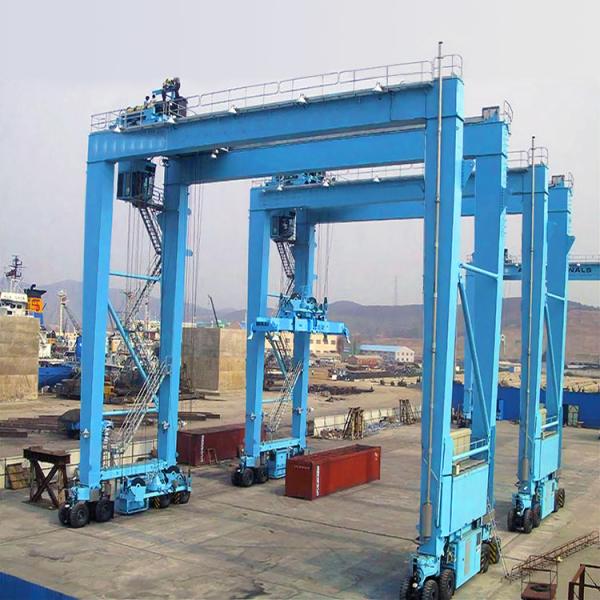

Container Rubber Tyre Gantry Crane Images

35t Lifting Mechanism RTG Gantry Crane With Rubber Tyre
