L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
Specifications
Brand Name :
SGY
Model Number :
L
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 set
Price :
USD5200.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
Packing of Single girder crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Product Name :
L Type Single Beam Gantry Crane(Hoist Type)
Lifting Mechanism :
Electric hoist
Safe Function :
Weight overload/Current overload/Voltage lower protection and so on
Control Method :
Press button,remote control,cabin
Working duty :
A3
Max. Lifting Height :
Generally 30m or customized
Rated Loading Capacity :
20t
Warranty :
1 Year
Condition :
New
Main electrical parts :
Schneider
Description

L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop

L Type Single Beam Gantry Crane Description

1.L singlebeam gantry crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
2.The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when 2,the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.
3.The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.

L Type Single Beam Gantry Crane Technical parameter

Capacity t 10 16 20/10 30/10 36/16 50/10
Span m 18-35 18-30 18-35 22-26 26-30 32
Duty medium medium medium medium Heavy Heavy/medium
lifting height main m 11.5 12.5 10.5 11.5 11.5 12
aux. / / 11 12 12 13
speed hoist main m/min 18.4 12.3 9.2 10.4 10.4 6
aux. / / 18.4 18.4 12.3 18
traversing 43.8 44.5 44 41.9 53 38.13
travelling 48.4-54.6 49.1-51.2 51 51.2 51.1 43.8

L Type Single Beam Gantry Crane Advantages

1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device.
4. Pendent control and remote control.
5. Easy maintenance.

6. Preventing hook clashing the top, set shields and barriers.
7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.

L Type Single Beam Gantry Crane Main Features

1. Light Duty and High Efficient, capable of passing legs.

2. Suitable for handling long material;

3. Long Life Span: 30-50years;

4. Motor insulation: F class;

5. Electric hoist is from our own group;

6. The speeds could be frequency inverter speed control; PLC is adopted.

7. Control method is cabin control, pendant control or remote control;

8. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

9. Protection: IP55.

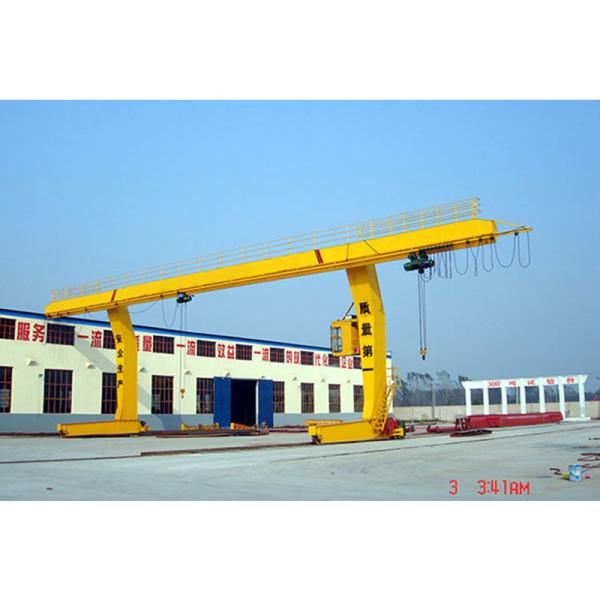

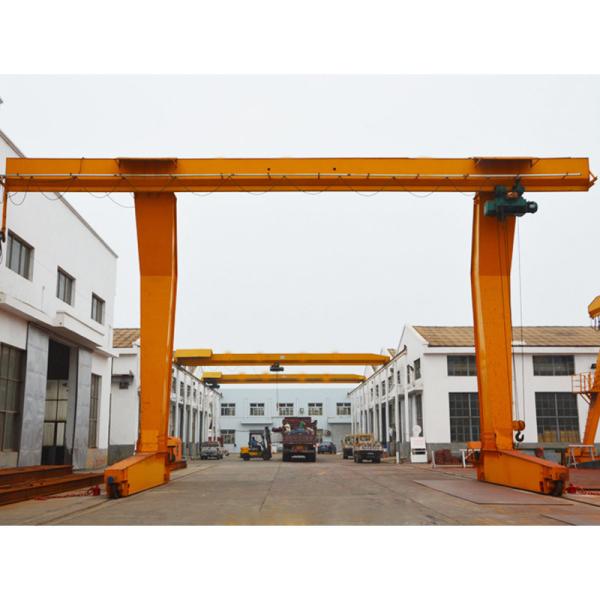

L Type Single Beam Gantry Crane Images

L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop

L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
