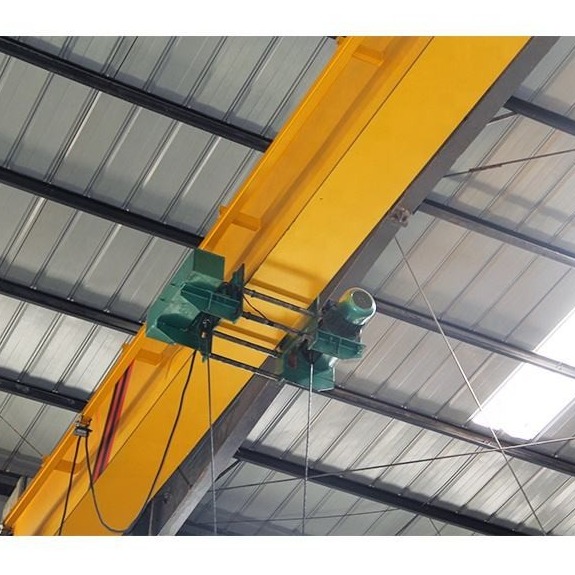

1 Ton 5 Ton 10 Ton LDA Electric Overhead Traveling Crane Indoor 10~200KN
1 Ton 5 Ton 10 Ton LDA Electric Overhead Traveling Crane Indoor 10~200KN
1 Ton 5 Ton 10 Ton LDA Electric Overhead Traveling Crane Indoor 10~200KN
1 Ton 5 Ton 10 Ton LDA Electric Overhead Traveling Crane Indoor 10~200KN
Specifications
Brand Name :
SGY
Model Number :
LDA
Certification :
CE ISO GOST SGS
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 sets per year
Delivery Time :
30 work days
Packaging Details :
Export standard packaging
Product name :
LDA Single Girder Overhead Crane
Material :
Q235B
Span :
6.5m-28.5m
Max. lifting height :
6m~30m
Max. lifting load :
32ton
Rated lifting moment :
10~200 KN
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Field maintenance and repair service
Lifting mechanism :
Eliectric Hoist
Lifting speed :
20m/min 30m/min or can be customized
Main electrical parts :
Siemens or Schneider
Description

1 Ton 5 Ton 10 Ton LDA Electric Overhead Traveling Crane Single Girder Indoor

LDA Electric Overhead Traveling Crane Description:

LDA single-girder bridge cranes are widely used in factory warehouses and material stocks for lifting and transporting goods. Do not use this equipment in flammable, explosive or corrosive environments.

The bridge crane is characterized by a more reasonable structure, the overall use of high-strength steel, and the main girder and end girder using U-shaped channel steel.

LDA Electric Overhead Traveling Crane Parameters Table:

Lifting Capacity T 1t 2t 3t 5t 10t 16t 20t
Span m 7.5~22.5m 7.5~31.5
Speed Lifting MD1 hoist m/min 8/0.8 (7/0.7) 3.5/0.35
CD1 hoist 8 (7) 3.5
Traveling of electric hoist 20 20
Traveling of crane 20/30 20/30
Wheel diameter Φ270 Φ370
Width of trail 37~70mm 37~70mm
Operational Model remote control; ground handle remote control; ground handle
Working Duty A3
Power Supply According to your demands According to your demands

General characteristics of LDA Electric Overhead Traveling Crane:

1. Crane steel material: Q235B, Q345B/Q345D

2. The box structure makes it firm and stable, independent handle operation, and can also be equipped with wireless remote control, with powerful functions and reasonable appearance.

3. Wheels: All wheels are vacuum forged, (or according to customer requirements), and medium frequency quenching, made by our factory.

4. The wheels, wire ropes, gears, and couplings are produced and casted by CNC machine tools.

5. Motors: Nanjing Special Motors or Nanjing General Factory Motors, the quality is leading domestically.

6. Brand of main Electrical part: Schneider or Siemens brand.

7. Control method: Pendant line with pressing button control, remote control, operator cabin control.

Safety protection of LDA Electric Overhead Traveling Crane:

1. Weight overload protection device

2. High-quality, long-term use, impact-resistant polyurethane buffer

3. Crane limit switch

4. Loss of pressure protection

5. Emergency stop system

6. Lifting limiter

LDA Electric Overhead Traveling Crane Details:

1 Ton 5 Ton 10 Ton LDA Electric Overhead Traveling Crane Indoor 10~200KN
