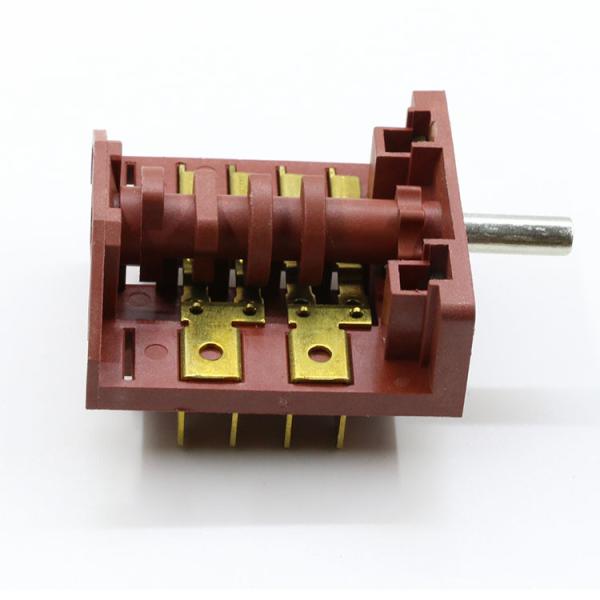

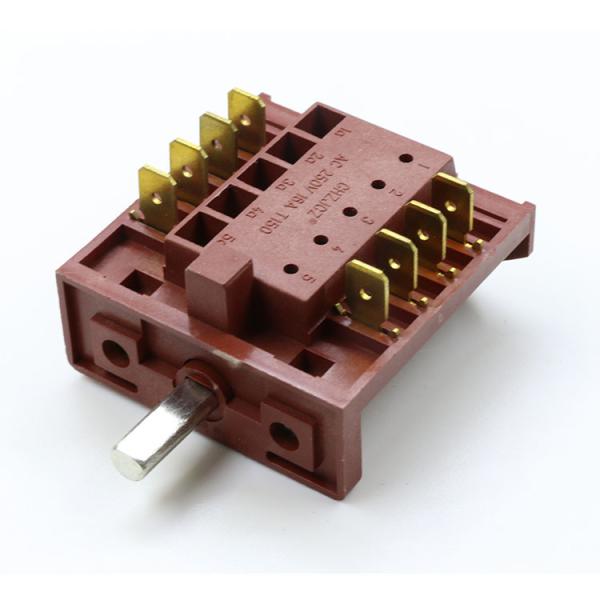

Copper Terminal Mini Rotary Switch , 4 Pole 3 Position Dishwasher Switch
Copper Terminal Mini Rotary Switch , 4 Pole 3 Position Dishwasher Switch
Specifications
Brand Name :
CHIMAI
Model Number :
AC5
Certification :
CE ,ROSH
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100k/pcs/month
Delivery Time :
7 work days
Packaging Details :
inner box
Material :
Bakelite
Type :
Oven Parts
Terminal :
copper
Current :
10A
Color :
RED
Feature :
function control
Description

Mini Rotary Switch Manufacturer 4 Pole 3 Position Dishwasher Switch

Product Parament:

Rated specification:16A 250VAC T150


Contact resistance:< 50mΩ

Insulation resistance:> 100mΩ

Compression strength

Between terminal:0.5MA 1800VAC ,3S

Between terminal and ground terminal:0.5MA 3000VAC,5S

Electrical life:1,0000 Cycle

Working temperature:-25~150℃

Length of adjusting shaft:customized

Terminal connection:insert

Application range:Microwave oven, induction cooker, electric stove, electric oven, fryer, oven etc.

Product Description
ITEMS Rocker Switch details
Housing Material PA66
Button Material PC
Contacts Material Copper with compound silver
Rating 16A 250VAC 5E4 T125
Room termperature up to 100℃
Flammability UL94V0
Heat and fire resistance GWFI 850℃ on demand
Contact gap ≥ 3 mm
Electrical Life >50000 Cycles
Mechanical Life >10000 Cycles
Reference standards EN61058-1
Bipolar and unipolar communtator

2 to 16 positions


Copper Terminal Mini Rotary Switch , 4 Pole 3 Position Dishwasher Switch
