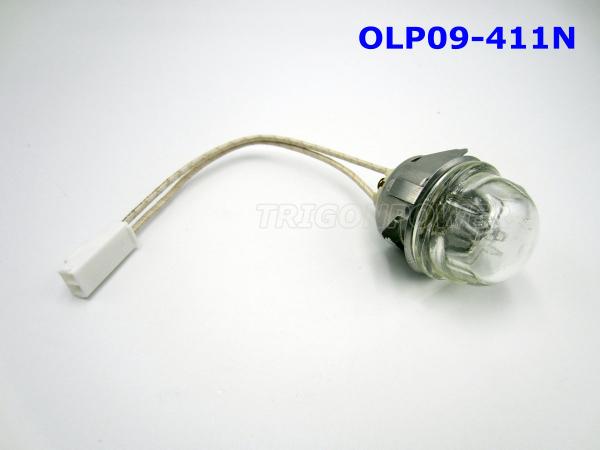

Bowl / Hemisphere / Polygon Oven Bulb Holder , G9 Oven Lamp Glass Cover
Bowl / Hemisphere / Polygon Oven Bulb Holder , G9 Oven Lamp Glass Cover
Bowl / Hemisphere / Polygon Oven Bulb Holder , G9 Oven Lamp Glass Cover
Bowl / Hemisphere / Polygon Oven Bulb Holder , G9 Oven Lamp Glass Cover
Bowl / Hemisphere / Polygon Oven Bulb Holder , G9 Oven Lamp Glass Cover
Bowl / Hemisphere / Polygon Oven Bulb Holder , G9 Oven Lamp Glass Cover
Specifications
Brand Name :
TRIGONPOWER
Model Number :
G9 SERIES
Certification :
TUV_SUD, CE
Place of Origin :
P.R.CHINA
MOQ :
5000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500,000 pcs/ month
Delivery Time :
45 days after order confirmed
Packaging Details :
200 pcs / carton; 16000 pcs / pallet
BULB TYPE :
G9 STANDARD
NOMINAL VOLTAGE :
AC 250V
NOMINAL CURRENTS :
2A
SIZE :
40 /41 /43 / 54 mm
APPERANCE :
Bowl / hemisphere / polygon
TEMINAL SIZE :
FASTON 6.3 x 0.8
Description

Bowl / Hemisphere / Polygon Oven Lamp Holder FASTON 6.3 X 0.8 Terminal

Description:

We design the exclusive product structure for the fixing ring part. The fixing ring is a flexible trigeminal wing-style structure part. With the three flexible wings we could install the ovenlamp easily into the fixing hole on the board surface of barbecue space. With the three wings and fixing point we could fix the oven lamp accurately on the right position on the board.

For the reason of material, you could clean the surface of glass cover easily. The oven lamp is fixed tightly on the board surface of barbecue space, so even an unprofessional housewife could change the lamp bulb breezily.

Specifications:

ITEM INFORMATION NOTE
TYPE G9 STANDARD
NOMINAL VOLTAGE AC 250V BY TUV
NOMINAL CURRENTS 2A BY TUV
WORKING VOLTAGE AC 110~220V 50/60 Hz
VOLTAGE RESISTANCE > AC 450V
LIGHTING POWER 25w
WORKING TEMP. T300
WORKING LIFE > 1000 hours Under T300
TERMINAL
RAW MATERIAL Galvanized steel / stainless steel / copper
SIZE Faston 6.3x 0.8
GLASS COVER
RAW MATERIAL soda-lime / high borosilicate glass
APPERANCE Bowl / hemisphere / polygon
SIZE 40 /41 /43 /54 mm
COLOR Full-transparent / semi-frosted
LAMP HOLDER
RAW MATERIAL high frequency porcelain
COLOR bright white
FIXING RING
RAW MATERIAL stainless steel - 304
COLOR bright silver
E14 METALLIC RING
RAW MATERIAL galvanized steel / copper
COLOR bright silver

Applications:

1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Steam Oven (with sealing washer)

7. Industry Oven

8. Other Home Appliances with lighting demand

Our Service

1. OEM Manufacturing welcome: Product, Package...

2. Sample order

3. We will reply you for your inquiry in 24 hours.

4. after sending, we will track the products for you once every two days, until you get the products. When you got the

goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer

the solve way for you.
