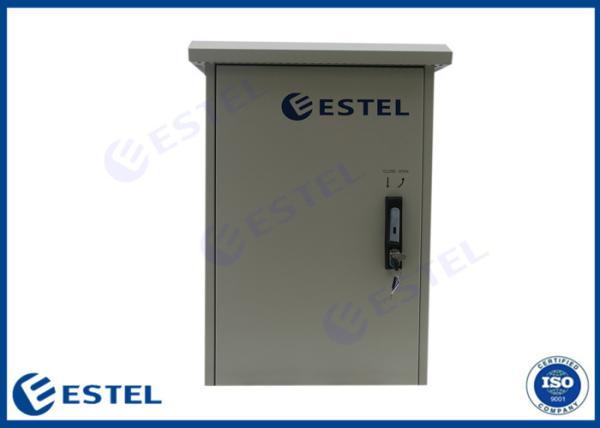

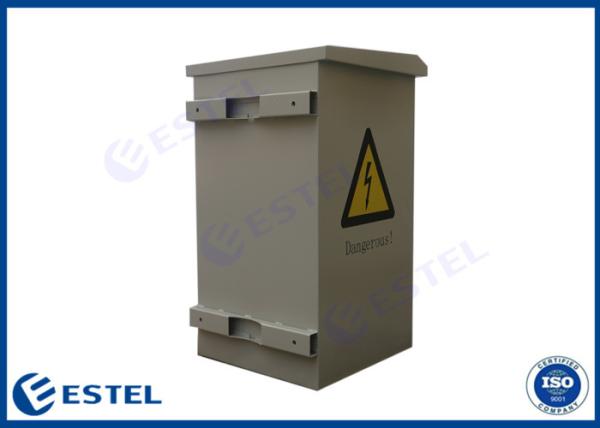

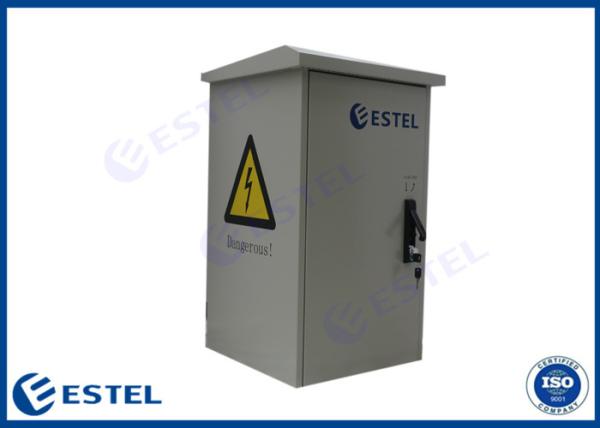

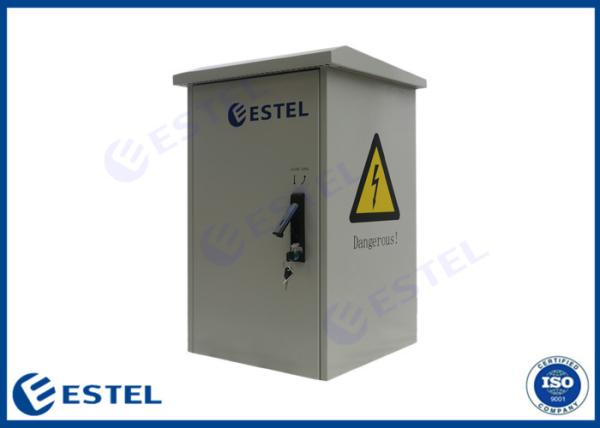

11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
11U Pole Mount Weatherproof Enclosure
Specifications
Brand Name :
ESTEL
Model Number :
ET606070PF-EQ
Certification :
ISO9001, CE,
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs/month
Delivery Time :
3-4 weeks
Packaging Details :
Wooden case
Protection level :
IP55
Material :
Galvanized steel, single wall
Cooling :
Fans with temperature controller
External size :
600mm×600mm×700mm(W×D×H)
Layout :
11U 19" equipment rack
Installation :
Pole mount, floor mount
Package :
Wooden case with pallets
Cable entry :
On the bottom
Description

11U Steel Pole Mount Weatherproof Enclosure IP55 Outdoor Cabinet Compact Box Fan Cooling Anti-Theft Lock

Summary

The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.

The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.

Feature

● Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● Perfect air duct design to avoid cold and hot gas mixed flow effectively

● Professional outdoor anti- corrosion powder coating, strong weather resistance

Technics

The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.

Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model ET606070PF-EQ
Size External Size: 600mm×600mm×700mm(W×D×H)
Component The whole cabinet is composed of three parts: top cover and cabinet body and cabinet base. The installation method is floor mounted and pole mounted with installation accessories.
Material Galvanized steel, single wall.
Structure

l One front door, hidden zinc alloy hinge

l Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock device

l Door stopper is installed on the inside of the cabinet door

l Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof

l Include 11U standard 19“ rack inside the cabinet, high universality.

l Equipped with cable manager

l Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor anti-corrosion polyester light grey RAL 7035 coating
Ingress Protection IP55
Working Temperature -40°C～+75°C
Cooling Method Compressor Air Conditioner /
Heat Exchanger /
TEC Air Conditioner /
Direct Ventilation Two AC220V fans+one temperature controller, including filter.
Monitoring Monitoring Unit /
Smoke Sensor /
Vibration Sensor /
Water Sensor /
Door Sensor /
Temperature & Humidity Sensor /
Other /

Illumination

 LED Lamp AC220V
LED Lamp Switch Used for controlling LED lamp on/off

Dimension Drawing:

11U Pole Mount Weatherproof Enclosure

Pole Mount Diagram:

11U Pole Mount Weatherproof Enclosure

Pole mount accessories includes:

Tripod * 2pcs

Hose clamp * 3pcs

Long bolt M10*300MM * 6 sets

Bolt M10*30MM * 6pcs

Similar Pole Mount Picture:

11U Pole Mount Weatherproof Enclosure

Cable entry:

Use gland, PG25*4, on the bottom, the following is similar picture.

11U Pole Mount Weatherproof Enclosure

Filter:

On the door, the following is similar picture.

11U Pole Mount Weatherproof Enclosure

Direct Ventilation:

Two AC220V Fans with one temperature contoller on the top, the following is similar picture.

11U Pole Mount Weatherproof Enclosure
