48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
Specifications
Brand Name :
ESTEL
Model Number :
ETEC-200W
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
6,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
carton + foam + wooden case
Input voltage :
48VDC
Cooling capacity L35/L35 :
200W
IP grade :
IP55
Dimensions (Include flange) :
H×W×D: 400*200*183.2mm
Installation mode :
Door mounted
Weight :
8kg
Description


48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor


48VDC Environmental Protection 200W Cooling Capacity Thermoelectric Cooler Introduction

The thermoelectric air cooler(TEC) is especially designed for telecom cabinet, battery cabinet, industrial control cabinet, with functions of auto cooling/heating system for electronic equipments in reliable operation, which can make a good environment to reduce equipments failure rate.

  • DC brushless fan:Stepless speed regulation
  • Cooling and heating syetem working in less move parts:Intelligent control and more reliable
  • Intelligent communication:RS485 port and dry contact alarm port for remote monitoring
  • LED display:Parameters can be set on site and inter temperature operation status can be shown
  • High protection level:Application in outdoors perfectly
  • Easy maintainability design:For convenient maintenance
  • Wide operating temperature range:Adapt to all conditions
  • No refrigerant:More green for the earth



48VDC Environmental Protection 200W Cooling Capacity Thermoelectric Cooler Features:

Ø
Using semiconductor electronic cooling, small volume, light weight.

Ø
No compressor, no Freon, no pollution, no vibration, no leak.

Ø
Using no pollution material ,compliance RoHS

Ø
Free mounting,applicable to a variety of places.

Ø
Working ambient temperature:-10℃~+70℃

Ø
Welded fin-heat sink,high efficiency heat.

Ø
High-dense foam insulation between heat sink and cold heat sink.

Ø
Hot-side heat sink overheat protection temperature setting +75℃±5℃


48VDC Environmental Protection 200W Cooling Capacity Thermoelectric Cooler Specification:

ModelTEC-200W
DC voltage


VDC


-58 - -44

Power


W


276

Cooling capacity


W


200

installation


/

door
Hot-side FAN currentA0.25A*2
Cold-side FAN currentA0.15A*2
Working temperature range


℃


-10 - +70

Ambient humidity


RH


5% - 95%

Protection grade


/


IP 55

Noise (dB)


dB(A)


65

weight


Kg


8

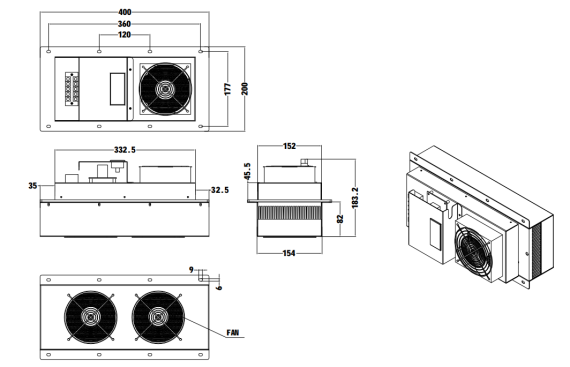

48VDC Thermoelectric Cooler 200W Cooling Capacity Dimension:


48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor


Product Details:

48VDC Thermoelectric Cooler Environmental Protection 200W Cooling Capacity No Compressor
