Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Double Wall 39U Aluminum Outdoor Telecom Enclosure
Specifications
Brand Name :
ESTEL
Model Number :
ET6751178T
Certification :
ISO9001, CE, RoHs
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs/month
Delivery Time :
3-4 weeks
Packaging Details :
Wooden case
Dimensions :
H1780 x W670 x D515 mm
Cooling system :
80W/K heat exchanger
Surface finish :
Outdoor powder polyester coating
Protection Level :
IP55
Load Bearing Capacity :
250 Lb
Material :
Aluminum
Structure :
Front door, double wall
Equipment Mounting Capacity :
39U space
Description

39U Aluminum Double Wall Outdoor Telecom Cabinet Tower Mount heat Exchanger Cooling Waterproof Outdoor Enclosure

The cabinet is designed to be installed on telecom tower.

TECHNICAL SPECIFICATION:

1. Dimensions (Height x Width x Depth): 1780 x 670 x 515 mm

2. Protection Rating: IP55

3. Equipment Load Bearing Capacity: 250 Lb

4. Equipment Rack: Standard 19” Rack with 39 U space

5. Cooling System: 80 W/K Heat Exchanger; Door Installed; Thermostat & Temperature Alarm; Inside Temperature To Be Kept Below 30 degree celsius

6. Cable Bushings: Back Side 1 x Ф2”; Bottom Side 2 x Ф 1”

7. Electrical System: Internal Illumination (24V DC; Door Switch); 2 External AC 110V / 15

AMP Power Outlets; Internal Equipment Grounding Bar; Cabinet Grounding Hardware

8. Equipment Mounting Capacity: 39U space

9. Construction: Aluminum Construction: Double Deck Roof; Environmental Seals; Anti-corrosion Surface Coating; Access Door With Lockable Latches

10. Cabinet Installation Fixtures: Bottom Side Anchorage to Supporting Platform (Supporting Platform Elevated 45 m on Tower

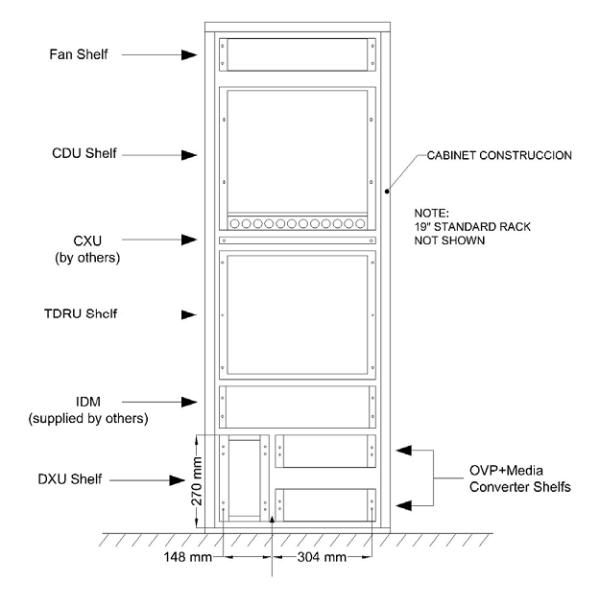

INTERNAL EQUIPMENT SHELFS DISTRIBUTION

Double Wall 39U Aluminum Outdoor Telecom Enclosure

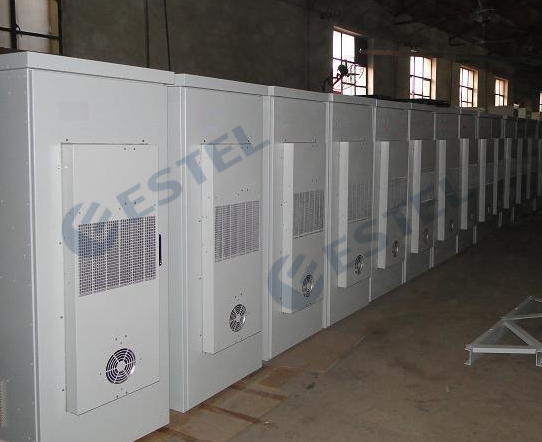

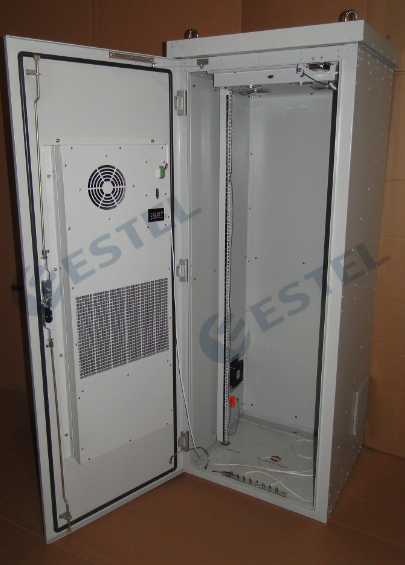

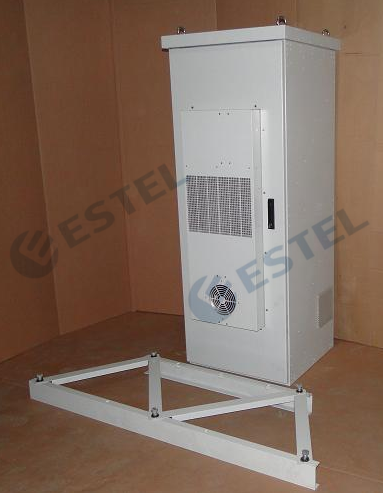

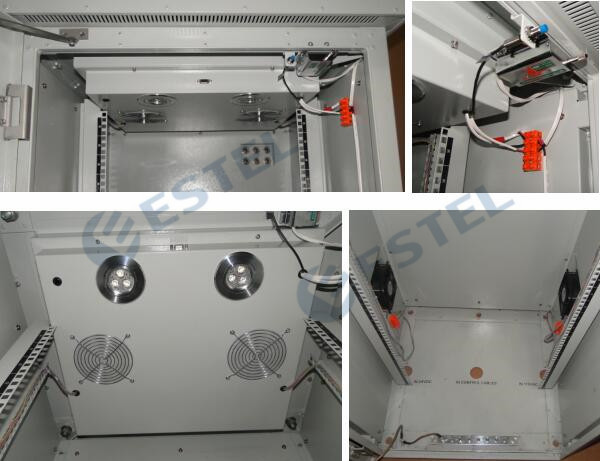

Cabinet Picture

Double Wall 39U Aluminum Outdoor Telecom Enclosure

Double Wall 39U Aluminum Outdoor Telecom Enclosure Double Wall 39U Aluminum Outdoor Telecom Enclosure

Double Wall 39U Aluminum Outdoor Telecom Enclosure
