48VDC 325W/K Enclosure Heat Exchanger RS485 Communication MODBUS RTU Protocol

Heat Exchanger

The HCZA-325-000-250 heat exchanger is a passive cooling solution designed for various enclosed spaces, ensuring efficient heat dissipation for electronic equipment.

Key Features

• Passive Cooling Design: Utilizes a counterflow heat exchanger core where ambient air passes through one side of an aluminum plate and contaminated air passes on the other side. This design allows heat transfer from the contaminated air to the ambient air while keeping the air streams separate, ensuring no cross-contamination.

• High Efficiency: The heat exchanger is designed to minimize air pressure drop, allowing for more efficient cooling with the same size fan.

• Durability: Constructed with robust materials and processes, ensuring a long service life of up to 10 years.

• Energy Saving: Achieves up to 85% energy savings by recovering exhaust heat and reducing the need for additional cooling systems.

• Compliance: Meets international standards, including RoHS, CE, and ISO certifications, ensuring safety and environmental responsibility.

Applications

The HCZA-325-000-250 heat exchanger is ideal for various applications, including:

• Telecommunication Shelters: Ideal for cooling telecom cabinets and shelters, especially in outdoor environments where traditional air conditioning may not be feasible.

• Industrial Enclosures: Suitable for various industrial applications requiring efficient heat dissipation in enclosed spaces.

• Energy Storage Systems: Effective in maintaining optimal temperatures for batteries and other components in energy storage solutions.

• Data Centers: Helps in managing heat dissipation in data centers, contributing to energy efficiency and equipment reliability.

Specifications

• Cooling Capacity: Ranges from 35W/K to 90W/K, depending on the specific model.

• Operating Temperature Range: -40°C to +70°C, making it suitable for a wide range of environmental conditions.

• Airflow: Internal air flow rates vary from 200 m³/h to 550 m³/h, depending on the model.

• Power Supply: Available in both DC (48V) and AC (220V-240V) versions to accommodate different installation requirements.

• Noise Level: Ranges from 45 dB(A) to 54 dB(A) at 3 meters distance, ensuring quiet operation.

• Protection Rating: IP55, providing protection against dust and water ingress.

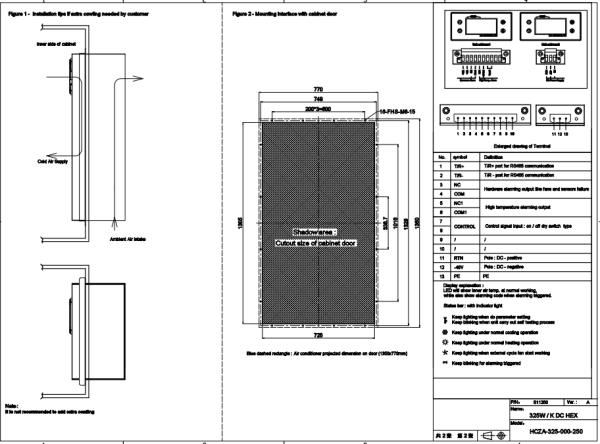

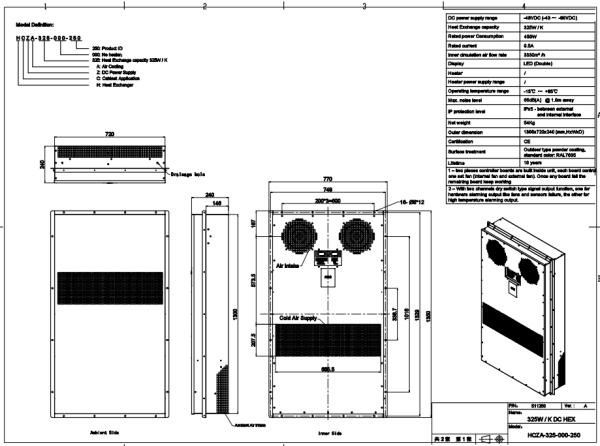

Mounting Interface Details

• Model Definition:
  HCZA-325-000-250

• DC Power Supply Range:
  -49VDC (-40V to -60VDC)

• Heat Exchange Capacity:
  328W/K

• Rated Power Consumption:
  450W

• Rated Current:
  33A (Air Flow)

• Inner Circulation Air Flow Rate:
  3330m³/h

• Display:
  LED (Double)

• Heater:
  Heater Power Supply: LED heater with specified operating conditions.

• Operating Temperature Range:
  -15°C to +65°C

• Noise Level:
  ≤68dB(A) at 1m away

• IP Protection Level:
  IP-5 (Between external and internal interface)

• Net Weight:
  54kg

• Outer Dimension:
  1300mm x 740mm x 240mm (HxWxD)

• Certification:
  CE

• Lifetime:
  10 years

• Notes:
  It is not recommended to add extra coating.

• Installation Type:
  External air inlet required by the customer.

• Cutout Size of Cabinet Door:
  770mm x 2000mm.

• Mounting Interface to Cabinet Door:
  Installation dimensions for door-side cutouts provided. The dimensions ensure proper air circulation and fitment of the cooling system.

• Terminal Connection:

  • T/R Port: For RS485 communication.

  • NC1: No connection.

  • COM1: Communication port for internal connection.

  • COM2: Communication port for data management.

• Unit Control Features:
  Control on/off switches for various internal components such as fans and heaters to ensure efficient operation.
