1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling
Specifications
Brand Name :
ESTEL
Model Number :
ET7575175-EQ-521-2O
Certification :
ISO9001, CE, RoHs
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 Set
Price :
358-2143 usd
Payment Terms :
L/C, D/A, D/P, T/T, etc
Supply Ability :
5000 pcs/month
Delivery Time :
3-4 weeks
Packaging Details :
Wooden case
Material :
Galvanized steel
Color :
RAL7035 Grey
Installation method :
Floor mount
Air conditioner :
1500W
Ingress Protection :
IP55
Fan :
2 sets
cabinet :
Outdoor telecom cabinet
Description

1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling

1. Cabinet Overview

The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.

2. Features

- Material: galvanized steel or as customer's requirements

- Cooling System: Fans (Air conditioner or Heat exchange)

- Protection Level: IP55 ,Waterproof,dust proof.

- Sealed by import seal belt, waterproof design realize the efficient protection

- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.

3. Technical Data Sheet

Model
Dimension W×D×H 750×750×1750mm
19” space 32U
Door One front door
Lock Anti-theft three point lock for outdoor cabinet(support padlock)
Material Galvanized steel; single wall with thermal insulation
Color RAL7035 grey
Installation method Floor mount

Cooling

Fans
Ventilation system Two AC220V fans with one temperature controller
Illumination AC220V LED lamp
LED Lamp Switch Used for controlling led lamp on/ off
Working temperature -40°C～+75°C
Ingress Protection IP55

4. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension

W×D×H 750×750×1750mm.

(2)One compartment: including 19” rack.

(3) With one front door, with three point lock for outdoor cabinet.

(4) Material: galvanized steel, single wall with thermal insulation.

(5) Floor installed.
2

Air Conditioner

(optional)

 1 Set

Air conditioner

Power supply: AC220V 50Hz;

Cooling Capacity: 1500W
3 Fan 2 Set 220VAC
4 LED Lamp Switch 1 PC For controlling LED lamp on/off
5 LED Lamp 1 PC 220VAC
6 Package 1 Set Wooden Case

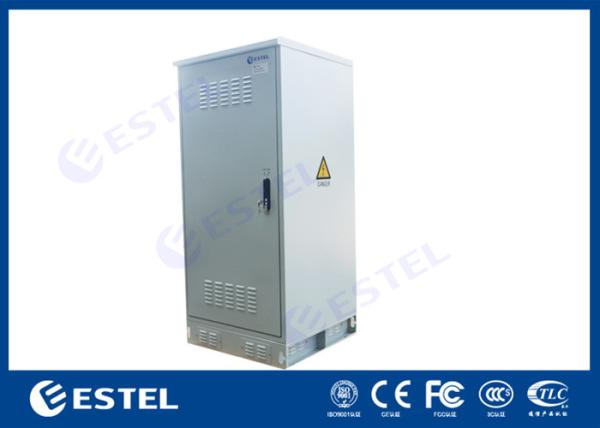

5. Cabinet Picture

1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling

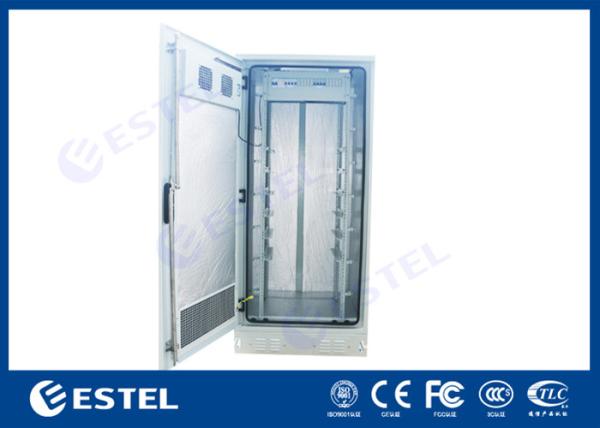

6. Cabinet inside Picture

1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling

7. More cabinet Pictures

1750mm 32U Telecom Outdoor Cabinet Floor Mount Fan Cooling

8. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
