Specifications
Brand Name :
ESTEL
Model Number :
ET82130221-UP
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1200PCS per month
Delivery Time :
15 days
Packaging Details :
wooden case
Application :
Telecom Base Station, for install UPS, battery
Cooling :
DC48V, 2000W, Variable Frequency
Door :
One front door one rear door
Material :
Steel, single wall + heat insualtion
Color :
Grey
Battery Shelf :
1
Environment monitoring system :
19”, 1U, DC48V, SNMP communication
Price :
358-2143 usd
cabinet :
Outdoor telecom cabinet
Description

Heat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution Unit

Introduction

The outdoor telecom cabinet refers to a cabinet made of metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.

The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.

Feature

● IP55 rating. The outdoor telecom cabinet is vandal proof, withstand dust and sand storms.

● Multiple cooling options: fan, air conditioner, heat exchanger, etc.

● Single wall with energy efficient insulation

● Anti-theft four point lock mechanism both on front door and back door

● 33RU 19” rail and one battery shelf

● With one front door and one rear door, convenient for maintenance and access

● Powder coated finish

● Cable entry from underneath

Specifications

(1) Technical Parameter

Item Type Technical Parameter
Structure Dimension

External Dimension H×W×D 2210×822×1300mm;

Internal Dimension H×W×D 1970×680×1290mm;
Layout 1 compartment, upper part is 33U 19” rail, lower part is one battery shelf
Cabinet Installation Ground
Door With one front door and one rear door, and special anti-theft four point lock for outdoor cabinet (support padlock)
Material Steel
Ingress Protection IP55
Temperature Control Cooling 2000W 48VDC air conditioner and 48VDC fan
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

(2) Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H×W×D 2210×822×1300mm;

Internal Dimension H×W×D 1970×680×1290mm;

(2) One compartment: the upper part is 19" rack, the lower part is battery shelf

(3)With one front door and one rear door , and anti-theft lock for outdoor cabinet (support padlock)

(4) Material: steel, single wall with insulation

(5) Color: grey, RAL7035

(6) IP grade: IP55
2 Air Conditioner 1 Set

Cooling capacity: 2000W; Power Supply: DC48V.

Variable Frequency Air Conditioner
3 Fan 2 PC DC48V, temperature adjustable
4 AC Panel Distribution 1 PC

AC Panel Distribution with transient voltage suppressor (SPD 80KA)

Grid power and DG (L1, L2, N, G)

120V Nema 5-15R 2 outlets

1 double breaker 100A

2 single breakers 64A

3 single breaker 30A
5 Power Distribution Unit 1 PC

Power distribution unit

Input Voltage: AC 220V (L1, L2, N and G) 60Hz

Single phase (L1, L2, N and Ground).

Connection to electric generator

Input Voltage: AC 220V (L1, L2, N and G) 60Hz
6 Environment Monitoring System 1 SET

1× environment monitoring unit,19”, 1U, DC48V, SNMP communication

1× smoke sensor,

1× water sensor,

1× temperature&humidity sensor,

1× door sensor,

1× tilt&shock sensor.
7 LED Lamp Switch 1 PC For controlling LED lamp on/off
8 LED Lamp 1 PC DC48V
9 Package 1 Set Wooden Case

Drawing

Heat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution Unit

Heat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution Unit

Heat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution Unit

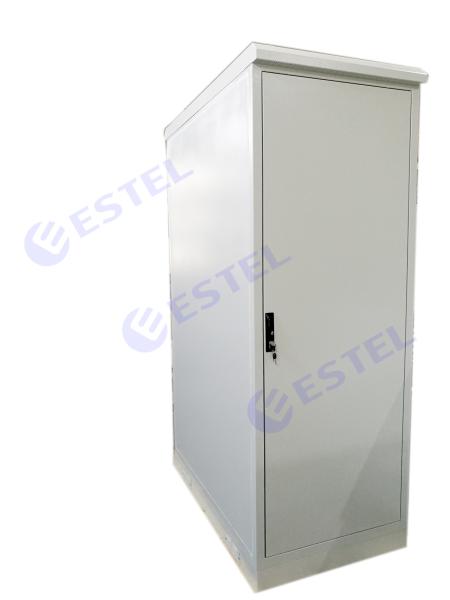

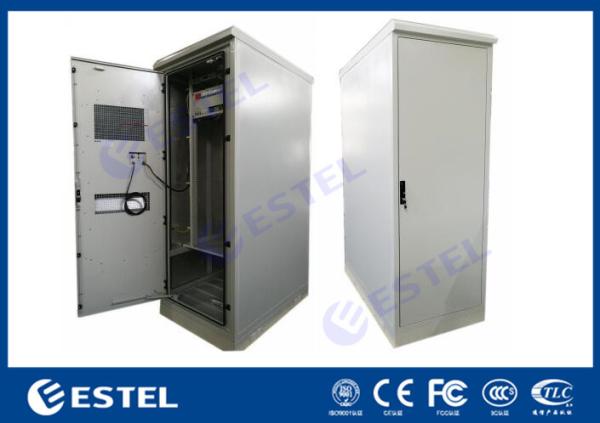

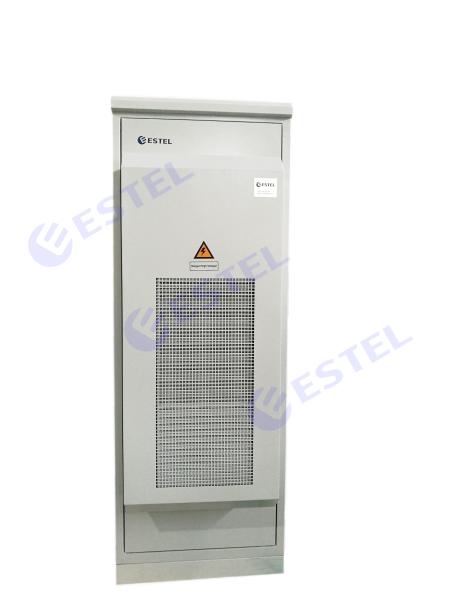

Pictures

Heat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution Unit

Heat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution UnitHeat Insulated Single Wall Steel Outdoor Telecom Cabinet With DC Air Conditioner, Power distribution Unit
