19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door
Specifications
Brand Name :
Estel
Model Number :
ET606011A-18U
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Delivery Time :
20-30days
Price :
358-2143 usd
Certification :
CE UL FCC
Supply Ability :
5000
Packaging Details :
Wooden case
Led :
LED 1pcs
Monitoring System :
Remote monitoring
Structure :
DOUBLE WALL
Insulation Material :
20mm PEF
Function :
Pack MCB
Mounting Type :
Floor mount
Color :
grey (support custom made)
Power Supply :
AC/DC
Leading Time :
10-35 days
Equipment Rack :
19 inch Rack 15U
Cabinet Layout :
One/two/three Compartment
Surface Treatment :
Outdoor powder coating, anti-corrosion
Working Altitude :
0~4000 meters
Installation Method :
rack mounted
Size :
Customizable
Protection level :
IP55 / IP65
Type :
Distribution Box
External size :
600*800*450mm,customized
Material :
steel
Product name :
outdoor telecom cabinet
Application :
Telecommunication,base station,Outdoor Electronic Equipment
Service :
OEM ODM
Cooling system :
air conditioner or fans,Door Installed Heat exchanger / AC / TEC
Warranty :
1 Year
Surface :
plating
Weight :
330KGS,240kg
Style :
air conditioner outdoor cabinet
Ip rating :
IP65
Usage :
control
Form of sale :
OEM/ODM
cabinet :
Outdoor telecom cabinet
Description

19-Inch 18U Standard Outdoor Telecom Cabinet With Cooling System One Stainless Steel Front Door

1. Introduction

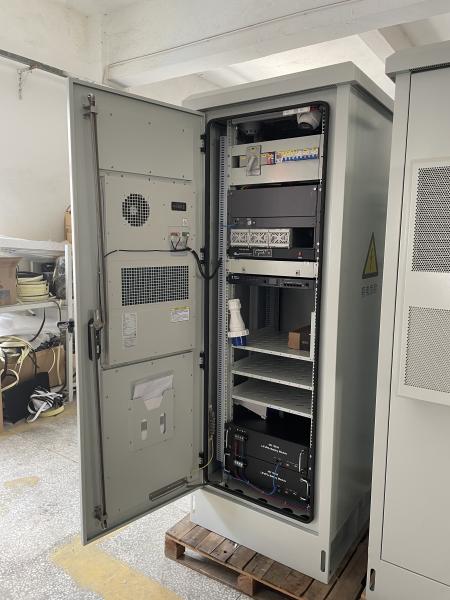

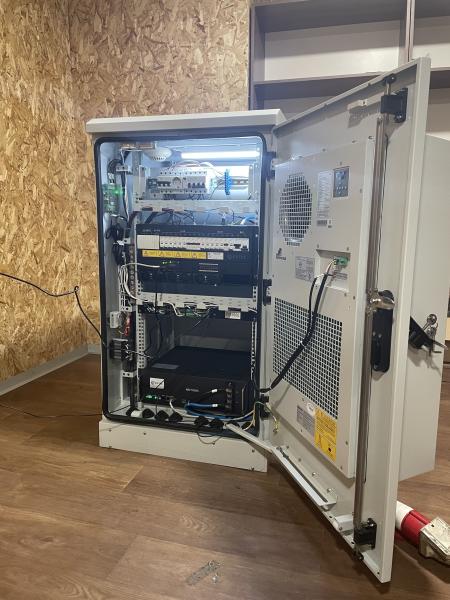

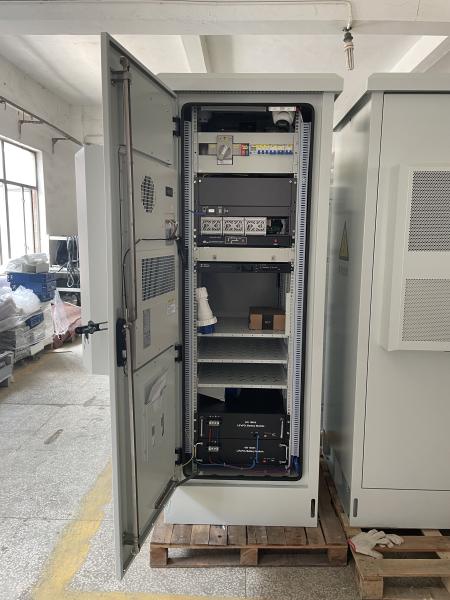

ET6060110A-18U is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment, power system and batteries.

2. Applications

This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

3. Cabinet features

● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Fans are installed on cabinet, with filter, convenient for maintenance, cleaning and replacement

● Comprehensive protection: door sensor, smoke sensor, water sensor, temperature sensor, vibration sensor, etc

● Support remote management, improve security and minimize customer’s operation cost

The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

4. Technical Parameters

Technical Parameters

Configuration Item Technical Parameter
Cabinet Model ET6060110A-18U
Protection Level IP55
External Dimension H1100mm×W600mm×D600mm
Internal Space 19 inch rack, with 4 battery shelves
Material Galvanized steel 1.2mm, single wall without insulation.
Coating Polyester powder coating
Color RAL7035
Door One front door
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Cooling Fan Model #: 12038, 200VAC 50Hz, 2 pcs
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
